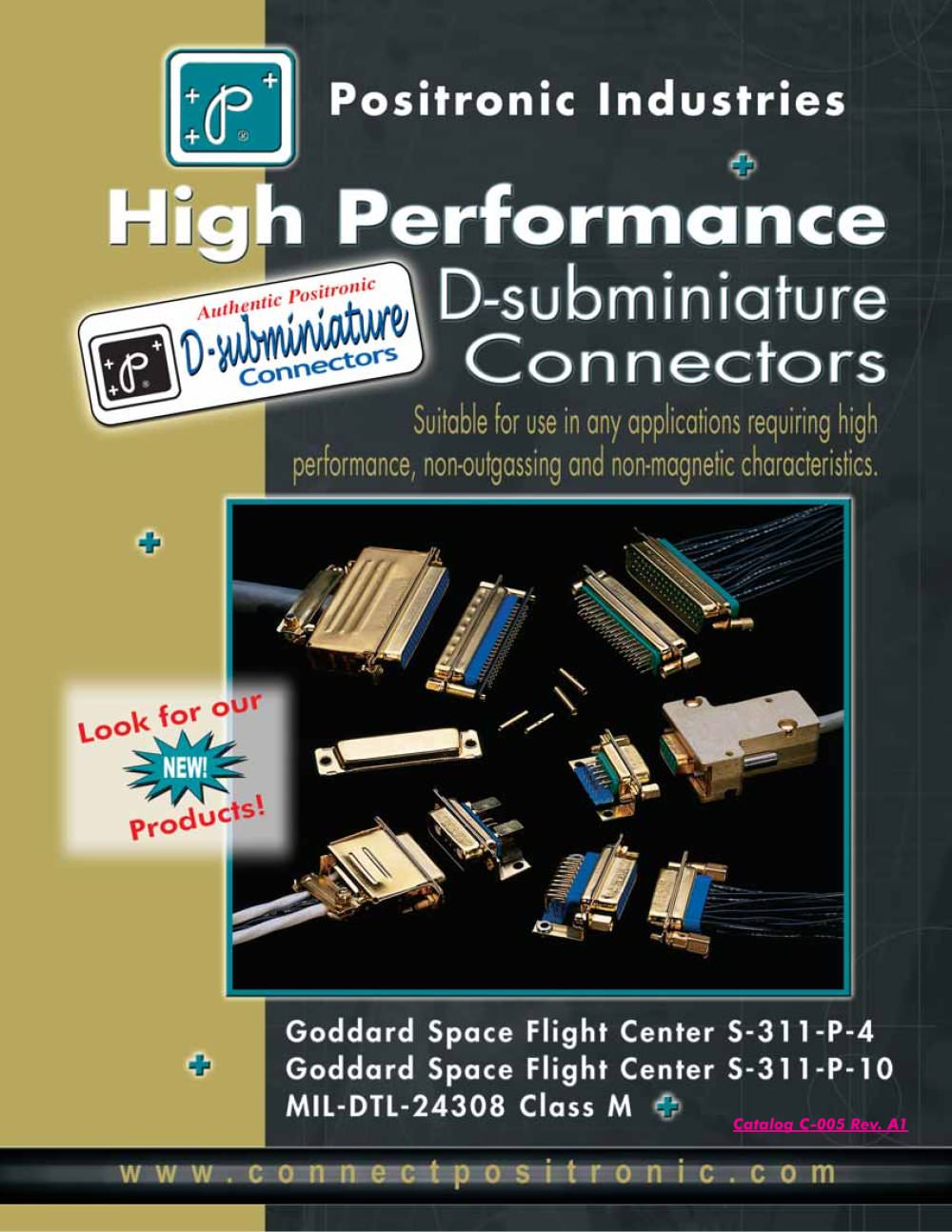

High Performance D-Sub Catalog

High Performance D-Sub Catalog
1 / 80 PagesView full catalog

High Performance D-Sub Catalog

Product catalog summary
Company Overview: Positronic Industries, founded in 1966, specializes in high-quality interconnect products with a focus on comprehensive capabilities including design, tooling, machining, molding, plating, and quality assurance. The company is known for its service-oriented approach and quick response.
Dimensional Tolerances: The catalog specifies tolerances such as ±0.001 inches for male contact mating diameters and ±0.015 inches for other dimensions.
Patents: Products are protected by several US patents and patents in Canada, with others pending.
Capabilities:
  • Design & Development: Focus on new and modified connectors.
  • Tooling: Provides 80% of new tooling.
  • Machining: Uses automatic screw machines.
  • Molding: Produces plastic components with overmold capability.
  • Plating: Offers gold and other finishes conforming to military specifications.
  • Quality Assurance: ISO 9001 certified with extensive testing capabilities.
  • Inventory: Maintains large stock for quick shipments.
Connector Series:
  • SND Series: Normal density subminiature-D connectors compatible with MIL-DTL-24308.
  • SDD Series: High-density connectors with similar compatibility.
  • SCBM Series: Combination connectors with fixed signal and power contacts.
  • SCBC Series: Combination connectors with removable crimp contacts.
Torque Values: Provides torque values for 4-40 UNC threads for materials like Phos. Bronze, Brass, Aluminum, and Nylon.
Lightweight Connectors: Introduces lightweight aluminum shell connectors for high-performance applications.
Technical Specifications:
  • SND Series: High-performance, non-outgassing, non-magnetic connectors suitable for MIL-DTL-24308 and other standards.
  • Contact Variants: Available in 9, 15, 25, 37, and 50 contact arrangements.
  • Materials: Insulators from glass-filled DAP, contacts from brass or copper alloy, shells from brass or aluminum with gold plating.
  • Electrical Characteristics: Contact current rating of 7.5 amps, proof voltage of 1,000 V r.m.s., insulation resistance of 5 G ohms.
  • Mechanical Characteristics: Contact retention in insulator of 9 lbs., resistance to solder iron heat up to 650˚F.
  • Climatic Characteristics: Operating temperature range from -55˚C to +125˚C.
Ordering Information: Code numbering system for ordering connectors, specifying options for gender, contact termination type, mounting style, shell options, and locking systems.
Key Features: High-performance connectors with non-outgassing and non-magnetic properties, compatible with IEC 807-2 and MIL-DTL-24308.
Additional Information: Includes dimensions, crimping tools, and accessories. Emphasizes reducing supply chain complexity through integrated solutions.
See more

Catalog excerpts

High Performance D-Sub Catalog-2

Design & Development Designs new connectors and modifies existing connectors to meet industry requirements? Continuously conducts marketing studies to identify industry needs for new products ? Ongoing interest in unique connector designs Tooling ? Tooling support for all manufacturing areas within company? Provides 80% of new tooling, punch press dies, molds, jigs and fixtures used at Positronic factory locations worldwide > Machining Molding Finished Stock Inventory Machining ? Automatic screw machines produce finely crafted contacts and hardware for connector bodies? Trained technicians operate...

 Open the catalog to page 2
High Performance D-Sub Catalog-3

INDUSTRIAL & HIGH PERFORMANCE SUBMINIATURE-D CONNECTORS ENVIRONMENTAL-D CONNECTORS COMBO-D CONNECTORS DUAL-PORT CONNECTORS > DIMENSIONS ARE IN INCHES [MILLIMETERS].ALL DIMENSIONS ARE SUBJECT TO CHANGE.

 Open the catalog to page 3
High Performance D-Sub Catalog-4

TORQUE MATERIAL Nm in-lb in-oz Phos.Bronze 0.90 8.0 128 Brass 0.68 6.0 96 Aluminum 0.45 4.0 64 Nylon 0.11 1.0 16 These torque values are applicable for threads only and do not apply to hardware assemblies.These torquevalues are approximate and should not be accepted as accurate limits.Indeterminant factors in specific appli- cations preclude the publication of accurate torque values for universal use. ii > DIMENSIONS ARE IN INCHES [MILLIMETERS].ALL DIMENSIONS ARE SUBJECT TO CHANGE. size="-1">

 Open the catalog to page 4
High Performance D-Sub Catalog-5

SNDSeries.Removable or fixed contacts, 7.5 amperenominal rating.Crimp, solder and straight and 90˚ printed board mount contact terminations.Five connector vari- ants, 9 through 50 contacts.Military quality connectors compatible with MIL-DTL-24308, conforming to GSFC-S- 311-P-4 and GSFC-S-311-P-10 where applicable. > SDDSeries.Removable or fixed contacts, 5 amperenominal rating.Crimp and straight and 90˚ printed board contact terminations.Six connector variants, 15 through 104 contacts.Military quality connectors compatible with MIL-DTL-24308, conforming to GSFC-S-311-P-4 where applicable. > Fixed...

 Open the catalog to page 5
High Performance D-Sub Catalog-8

vi > DIMENSIONS ARE IN INCHES [MILLIMETERS].ALL DIMENSIONS ARE SUBJECT TO CHANGE. size="-1">

 Open the catalog to page 8
High Performance D-Sub Catalog-9

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:7.00pt "Arial Black", sans-serif; } .font5 { font:26.00pt "Arial Black", sans-serif; } .font6 { font:18.00pt "Trebuchet MS", sans-serif; } NORMAL DENSITY SUBMINIATURE-D CONNECTORS SND Sries LU LU HIGH PERFORMANCE, NON-OUTGASSING, NON-MAGNETIC Positronic Industries connectpositronic.com Size 20 Contacts Removable Crimp or Fixed Contact...

 Open the catalog to page 9
High Performance D-Sub Catalog-10

Insulator: Glass-filled DAP per ASTM-D-5948, TypeSDG-F, UL 94V-0, ASTM E-595, NASA- RP-1124, green color. > Contacts:Male Contacts: Female Contacts: Precision-machinedbrass alloy. Precision machinedhigh tensile copper alloy with brass shroud. Fixed Contacts: Size 20 contacts. Male Contact: 0.040inch [1.02 mm] diameter. FemaleContact: Contact Plating: 0.000050 inch [1.27 microns] gold over cop-per plate. Closed entry design with brassshroud. Shells: Brass with 0.000050 inch [1.27 microns]gold over copper plate. Removable Contacts: Insert contact to rear face of insulatorand release from rear face...

 Open the catalog to page 10
High Performance D-Sub Catalog-12

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:26.00pt "Arial Black", sans-serif; } NORMAL DENSITY SUBMINIATURE-D CONNECTORS Snd Sries HIGH PERFORMANCE, NON-OUTGASSING, NON-MAGNETIC Positronic Industries connectpositronic.com III m SOLDER CUP CONNECTOR CODE 2 Fixed Female Jackscrews r- 20 AWG M; Fixed Female Jackscrew Fixed Male Jackscrew f^aTf Il 0 0000000liyy \\ 0000000 Uoooooooo...

 Open the catalog to page 12
High Performance D-Sub Catalog-13

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:21.00pt "Arial", sans-serif; } .font6 { font:7.00pt "Arial Black", sans-serif; } .font7 { font:26.00pt "Arial Black", sans-serif; } .font8 { font:12.00pt "Impact", sans-serif; } normal density subminiature-d connectors Snd Sries LU LU HIGH PERFORMANCE, NON-OUTGASSING, NON-MAGNETIC Positronic...

 Open the catalog to page 13
High Performance D-Sub Catalog-15

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial", sans-serif; } .font6 { font:26.00pt "Arial Black", sans-serif; } NORMAL DENSITY SUBMINIATURE-D CONNECTORS SND Sries LU LU HIGH PERFORMANCE, NON-OUTGASSING, NON-MAGNETIC Positronic Industries connectpositronic.com 90° AND STRAIGHT PRINTED BOARD CONTACT HOLE PATTERN HOLE IDENTIFICATION...

 Open the catalog to page 15
High Performance D-Sub Catalog-16

SNDSeries CONTACT TECHNICAL SALES FOR SPECIAL OPTIONS > G-Gold over Copper Plate.D-Gold over Copper Plate and Dimpled. M-Male F-Female > 0-Ordered without contacts. 1-Crimp, 20 AWG - 24 AWG [0.5 mm > 2 0-None.T-Fixed FemaleJackscrews.T2-Fixed Female Jackscrews. T6-Fixed Male and Female Polarized Jackscrews.E-RotatingMale Jackscrews.E2-Rotating MaleScrew Locks. E3-Rotating Male with internal hex for 3/32 hex drives. E6-Rotating Male and Female Polarized Jackscrews. - 0.25 mm > 2 ].12-Crimp, 26 AWG - 30 AWG [0.12 mm > 2 - 0.05 mm > 2 ].2-Solder Cup. 3-Solder, Straight Printed Board Mount with 0.170...

 Open the catalog to page 16
