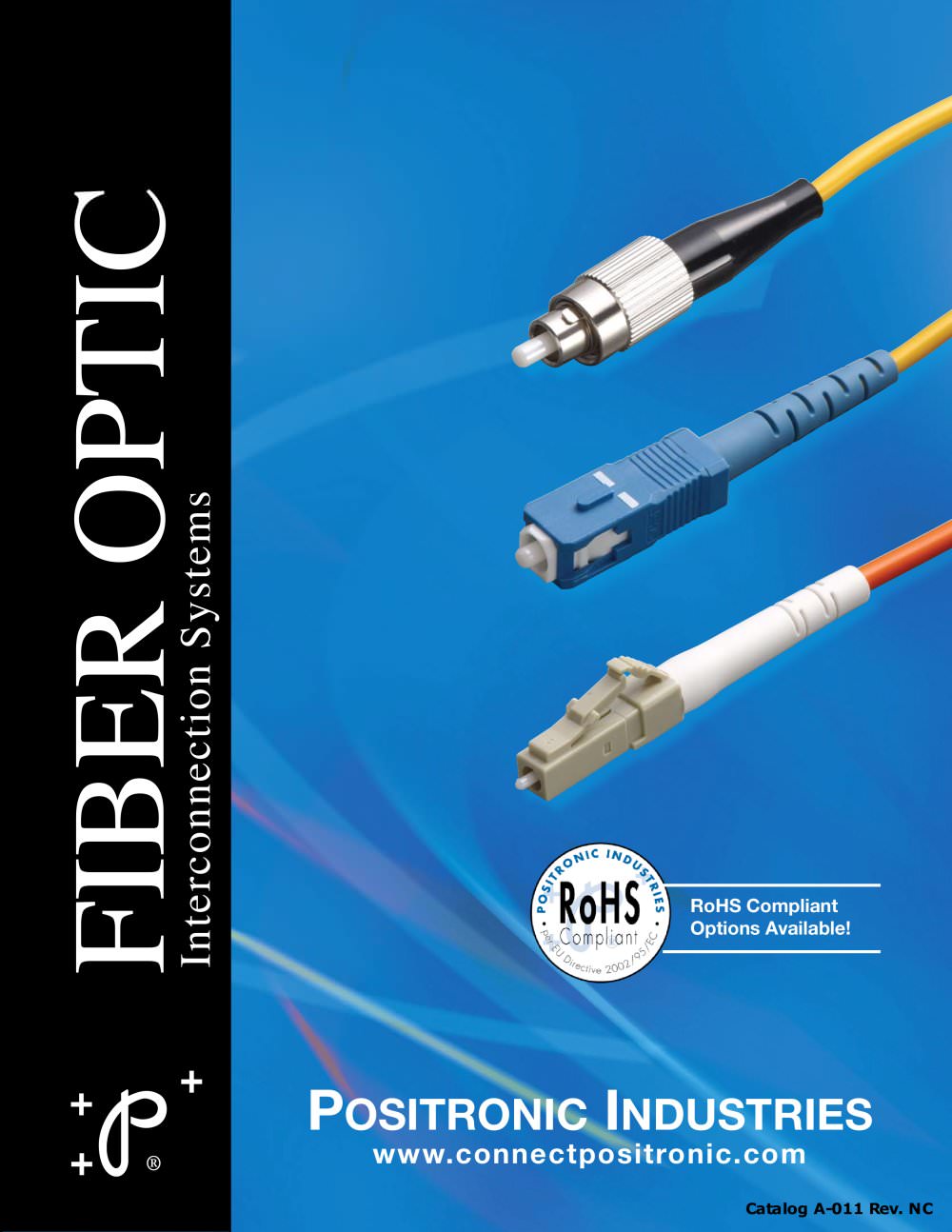

RoHS CompliantOptions Available! Interconnection Systems FIBER OPTIC
Open the catalog to page 1tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:20.00pt "Arial", sans-serif; } FIBER OPTIC nd Face Geometry Unit (PCS) 400 ■ 350 300 250 200 Typical Distribution Chart for Apex Offset 150 100 50 0 0 5 10 15 20 25 30 35 40 45 50 Unit (um) Unit (PCS) 1310nm 1550nm 400 350 Typical Distribution Chart for Insertion Loss Measurement 300 250 200 150 100 50 0 0...
Open the catalog to page 3SC-UPC Single Mode Application ParametersUnitOperating Wavelength850,1310, 1550nmInsertion Loss (Typical)0.15dBReturn Loss Min.Single ModeSPC>45dBUPC>50dB APC>60dBMulti ModePC>30dBOperating Temperature-40 + 85C Conforms to Telcordia GR-326-CORE and EIA/TIA-568-B.3 SC-PCMulti-Mode Application SC-APCSingle Mode Application > EASY PUSH-PULL INSTALLATIONՕ MEETS TELCORDIA GR-326 CORE REQUIREMENTS AND EIA/TIA-568-B.3 SUITED FOR DENSITY APPLICATIONS Օ PRE-RADIUS CERAMIC FERRULES CONFIGURED FOR ULTRA PC, PC, AND APC POLISHING UTILIZES 2.5 MM CERAMIC FERRULE Օ CONNECT OPTICAL EQUIPMENT TO FIBER...
Open the catalog to page 4FC-UPCSingle Mode Application FC-PCMulti-Mode Application FC-APCSingle Mode Application ParametersUnitOperating Wavelength850,1310, 1550nmInsertion Loss (Typical)0.15dBReturn Loss Min.Single ModeSPC>45dBUPC>50dB APC>60dBMulti ModePC>30dBOperating Temperature-40 + 85C Conforms to Telcordia GR-326-CORE and EIA/TIA-568-B.3 > SCREWED ON MECHANISMՕ MEETS TELCORDIA GR-326 CORE REQUIREMENTS AND EIA/TIA-568-B.3 PRE-RADIUS CERAMIC FERRULES CONFIGURED FOR ULTRA PC, PC, AND APC POLISHINGՕ CORROSION RESISTANT BODY LOW BACK REFLECTION Օ LOW INSERTION LOSS UTILIZES 2.5 MM CERAMIC FERRULE Օ CONNECTS...
Open the catalog to page 5LC-UPCSingle Mode Application LC-PCMulti-Mode Application LC-APCSingle Mode Application ParametersUnitOperating Wavelength850,1310, 1550nmInsertion Loss (Typical)0.15dBReturn Loss Min.Single ModeSPC>45dBUPC>50dB APC>60dBMulti ModePC>30dBOperating Temperature-40 + 85C Conforms to Telcordia GR-326-CORE and EIA/TIA-568-B.3 > PUSH AND LATCH MECHANISMՕ MEETS TELCORDIA GR-326 CORE REQUIREMENTS AND EIA/TIA-568-B.3 PRE-RADIUS CERAMIC FERRULE CONFIGURED FOR ULTRA PC, PC, AND APC POLISHINGՕ UTILIZES A 1.25MM CERAMIC FERRULE SUPPORTS INTERCONNECTIONS OF OPTICAL ROUTERS WITHIN THE TELECOM CLOSET AND...
Open the catalog to page 6STEP 1 STEP 2 STEP 3 STEP 4 STEP 6 STEP 7 STEP > Connector Type Polish Finish Connector Type Polish Finish Fiber Mode Cable Length in Meters Cable Diameter Core/ Cladding Diameter Boot RoHSCompliant per EC Directive Special Options (Ref. Step1) (Ref. Step3)STEP 5 > Positronic Industrieswww.connectpositronic.com FIBER OPTIC Length tolerance : Less than 1 meter: s Equal or Longer than 1 meter but less than 5 meter : s Equal or Longer than 5 meter: s >
Open the catalog to page 7NORTH AMERICAN SALES OFFICES > United States, Springfield, MissouriFactory and Sales Office 800 641 4054 Puerto Rico Sales Office 787 841 0920 Mexico Sales Office 800 872 7674 Canada Sales Office 800 327 8272 FIBER OPTIC EUROPEAN SALES OFFICES > France, Auch Factory and Sales 33 (0) 5 6263 4491 Northern France Sales Office 33 (0) 1 4588 1388 Southern France Sales Office 33 (0) 4 6772 8028 Italy Sales Office 39 (0) 2 5411 6106 Germany Sales Office 49 (0) 23 5163 4739Europe & Middle East Technical Agents:Austria, Benelux, Denmark, Finland, Greece, United Kingdom, Ireland, Scotland, Slovenia,...
