Positronic Industries
Environmentally Sealed Catalog

Environmentally Sealed Catalog

Product catalog summary

Dimensional Tolerances: The document specifies precise dimensional tolerances for various components, including ±0.001 inches for male contact mating diameters and ±0.015 inches for all other dimensions.

Torque Values: Maximum torque values are provided for 4-40 UNC threads across different materials, with specific values in Nm, in-lb, and in-oz.

Ingress Protection Connection Systems: Positronic Industries offers three connection systems designed to meet IEC 529 and NEMA 250-1991 standards, providing IP67 protection for dust and water ingress.

WIN-D Series Connectors: These connectors are designed for nonhazardous environments, offering protection from dust, rain, and limited water immersion, meeting IEC 807-2 Performance Level 2 standards.

Technical Characteristics: The document details the environmental, electrical, and mechanical characteristics of the WIN-D series, including contact current ratings and insulation resistance.

Specifications: The document outlines specifications for WIN-D series connectors, suitable for environments requiring protection from dust, rain, and limited water immersion.

Enclosure Mounting: Specifications for inside and outside wall mounting are provided, with minimum and maximum thicknesses.

Locking Systems: Utilizes jackscrews for secure operations, rated for a minimum of 250 operations for IP67 immersion.

Sealing and Torque Requirements: Plate mounting torque specifications are provided.

Climatic Characteristics: The temperature range is specified from -25°C to +85°C, with recommendations for water immersion testing.

Design Features: Includes enclosure mounted connectors and cable connectors with silicone and epoxy sealants for water-tight sealing.

Materials and Finishes: Details on materials used for insulators, contacts, and shells, emphasizing corrosion protection.

Electrical Characteristics: Specifications include a contact current rating of 5 amperes and a proof voltage of 1000 V r.m.s.

Environmental Test Specifications: IP65 and IP67 ratings for moisture and immersion tests are detailed.

Mechanical Characteristics: Specifications for fixed contacts and contact retention are provided.

Applications: Suitable for telecommunication and other applications requiring high-density contact arrangements and environmental sealing.

Overview: The document provides technical specifications and ordering information for the WD and WDD series of subminiature-D connectors by Positronic Industries, Inc.

Connector Variants: Lists several connector variants with specific dimensions and configurations.

Mounting Accessories: Various mounting accessories are available, including sealing plates and jackscrews.

Ordering Information: A detailed code numbering system for ordering connectors is provided.

Specifications: Outlines specifications for Environmental-D Series connectors designed for military and severe industrial applications.

Wire Specifications: Details on wire specifications for WD and WDD Series connectors.

Connector Features: Designed for high humidity and immersion, with environmental protection features.

Materials and Finishes: Details on materials used for insulators, contacts, and shells.

Electrical Characteristics: Specifications include a contact current rating of 7.5 amperes and a proof voltage of 1,000 V r.m.s.

Mechanical Characteristics: Specifications for removable contacts and wire sizes are provided.

Environmental Characteristics: Meets MIL-DTL-24308 requirements for humidity and fluid immersion.

Ordering Information: A detailed code numbering system for ordering connectors is provided.

Crimping Information: Instructions for crimping EVD Series contacts are provided.

Specifications: Outlines specifications for military quality, removable contact, subminiature-D connectors.

Procedures: Instructions for using crimp tools and positioners are provided.

Standards and Recommendations: Explains the Ingress Protection (IP) system for enclosures.

Key Data from Tables: Includes tables comparing NEMA enclosure types to IEC classifications.

Product Features: Positronic offers a range of connector products with features such as hot swap capability and environmental sealing.

Contact Information: Contact details for Positronic Industries' headquarters and sales offices are provided.

Overview: Discusses the WIN-D and WIN-DD series D-subminiature connectors by Positronic, designed for environmental applications.

Design and Features: The new unibody design eliminates the need for additional sealants, reducing costs and improving performance.

Materials and Finishes: Details on materials used for connectors, emphasizing corrosion protection.

Technical Specifications: Specifications include a contact current rating of 7.5 amperes and a temperature range of -40°C to +125°C.

Environmental Characteristics: Tested for IP65 and IP67 moisture protection.

Mechanical Characteristics: Specifications for trapezoidally shaped shells and jackscrews are provided.

Applications: Suitable for applications requiring environmental sealing and corrosion resistance.

Ordering Information: A code numbering system for ordering enclosure-mounted connectors is provided.

Connector Specifications: Connectors are available in various configurations with contact sizes ranging from 8 to 22.

Features: Offers multiple performance levels, including professional, military, and space-flight quality.

Contact Information: Contact details for Positronic Industries are provided.

Catalog excerpts

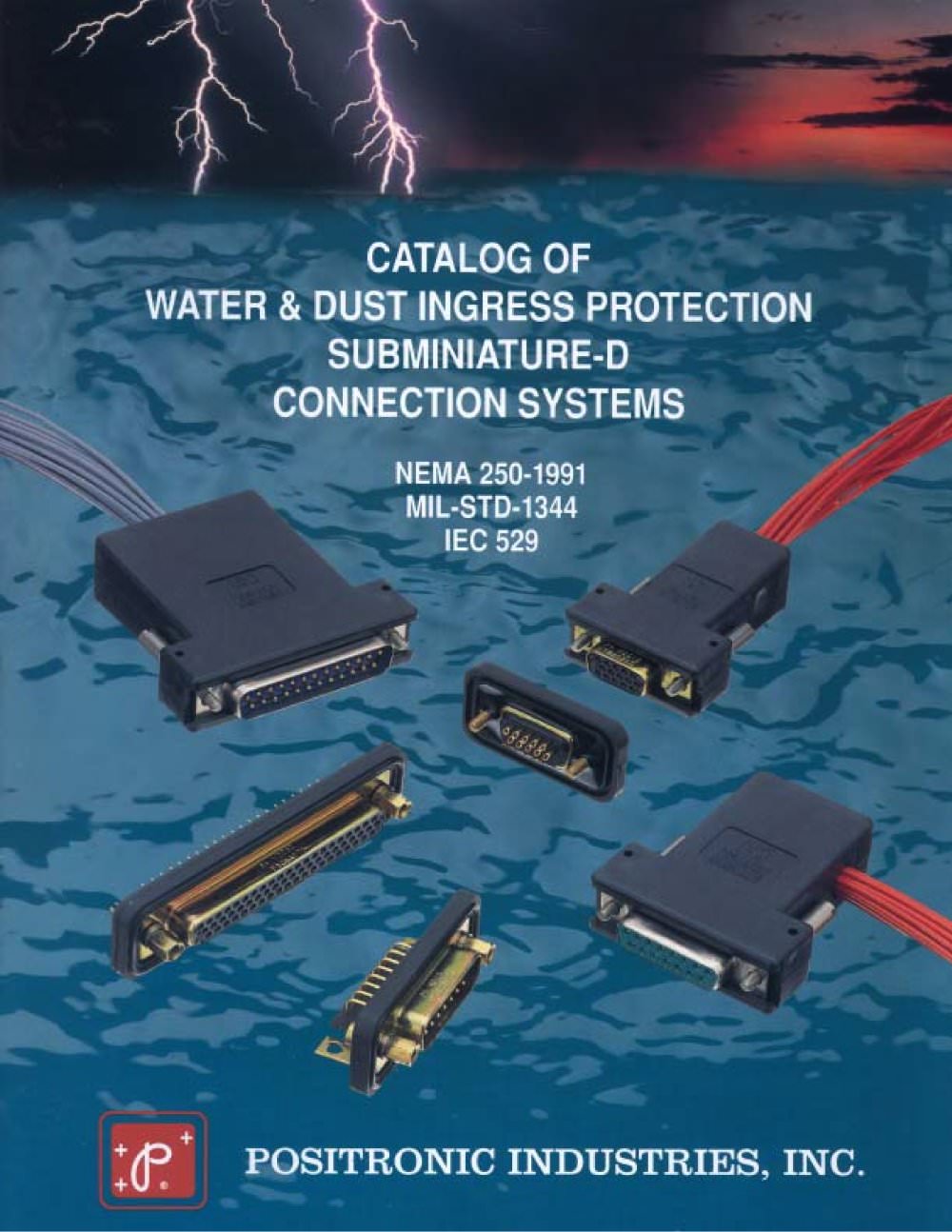

untitled tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:23.00pt "Arial", sans-serif; } CATALOG O

Open the catalog to page 1

TORQUE MATERIAL Nm in-lb in-oz Phos. Bronze 0.90 8.0 128 Brass 0.68 6.0 96 Aluminum 0.45 4.0 64 Nylon 0.11 1.0 16 These torque values are applicable for threads only and do not apply to hardware assemblies. These torque values are approximate and should not be accepted as accurate limits. Indeterminant factors in specific appli- cations preclude the publication of accurate torque values for universal use. Unless otherwise specified, dimensional tolerances are:1)0.001 inches (0.03 mm) for male contact mating diameters. 2)ѱ0.003 inches (0.08 mm) for contact termination diameters. 3)0.005 inches...

Open the catalog to page 2

untitled tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:11.00pt "Arial", sans-serif; } .font1 { font:23.00pt "Arial", sans-serif; } ingress protection connection systems Electronic equipment is more frequently being used for outdoor environmental applications such as portable computers, fixed location instruments and control systems. To answer industry's demand for affordable conͭnection systems compatible with IEC 529 and NEMA 250-1991 performance requirements for electrical enclosures, Positronic Industries has introduced three dust and water ingress protection connection...

Open the catalog to page 3

Description of Ingress Protection ConnectionSystems 1, 2 and 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3WIN-D Series, Normal Density, Fixed Contact,Subminiature-D Ingress Protected Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 9WIN-DD Series, High Density, Fixed Contact,Subminiature-D Ingress Protected Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 16WIN-D and WIN-DD Series Common Components and PanelCut-Out Technical Information. . . . . . . . . . . . . . . . . ....

Open the catalog to page 4

INGRESS PROTECTION CONNECTIONSYSTEM 1 > * Panel mount sealing plate,inside wall enclosure mountingO-RingEnclosure, IEC or NEMATypeFixed Jackscrews Protective CoverInterfacial SealPrinted Board Example Part Number:WD15P5C7AT70 *Outside enclosure wall panelmount sealing plate also available The connector is mounted on the portableenclosure. Interfacial seal supplied if a male connector. The mating connector is in a remote location and is non-environmental. System 1 consists of an input/output connectormechanically mounted and sealed to a portable enclo- sure containing electrical equipment. The...

Open the catalog to page 5

INGRESS PROTECTION CONNECTIONSYSTEM 2 > Consists of an enclosure or instrumentationrack or panel at a fixed location. Periodically exposed to rain, dust and splashing water. Electrical integrity maintained during water and dust exposure. Interfacial seal required on male connector. * Panel mount sealing plate, inside wall enclosure mounting Solder contacts soldered to wireand encapsulated in epoxy resin O-RingEnclosure, IEC or NEMATypeFixed JackscrewsPrinted Board Interfacial SealProtective CoverProtective CoverRotating Jackscrews Composite Hood Flying Leads Example Part Number:WD15F220Z00 Example...

Open the catalog to page 6

INGRESS PROTECTION CONNECTIONSYSTEM 3 > Connectors periodically exposed to rain,dust and splashing water. Electrical integrity maintained during water and dust exposure. Interfacial seal required on male connector. Composite Hood Composite Hood Interfacial Seal Fixed JackscrewsProtective CoverRotating Jackscrews Protective CoverSolder contacts soldered to wireand encapsulated in epoxy resin Flying Leads Flying Leads Example Part Number:WD15F220Z00 Example Part Number:WD15P220Z400 System 3 is a cable-to-cable interconnection systemconsisting of two free cable connectors. This system is used for...

Open the catalog to page 7

untitled tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:17.00pt "Arial", sans-serif; } .font5 { font:11.00pt "Times New Roman", serif; } PROFESSIONAL QUALITY, SUBMINIATURE-D CONNECTORS FOR INDOOR/OUTDOOR NONHAZARDOUS ENVIRONMENTAL APPLICATIONS WHERE PROTECTION FROM DUST, RAIN, HOSE DIRECTED WATER AND LIMITED WATER IMMERSION IS REQUIRED WIN-D Sries L. J Size 20 Contacts, Fixed Normal Density Connector...

Open the catalog to page 8

FOR INDOOR/OUTDOOR NONHAZARDOUS ENVIRONMENTALAPPLICATIONS WHERE PROTECTION FROM DUST, RAIN, HOSE DIRECTED WATER AND LIMITED WATER IMMERSION IS REQUIRED > Applicable IECMoisture Tests IP65 IEC 529 Test 14.2.5 Spray nozzle 6.3 mm diameter, delivery rate12.5 liters per minute, 1 minute duration of connector exposure to spray. When conducting this test on System 1 ֖ Portable Enclosure Connectors, the protective cover must be securely fastened over the face of the connector.IP67 IEC 529 Test 14.2.7 Temporary immersion, 0.5 meters for 30minutes. REQUIREMENTS No water to have penetrated enclosure through...

Open the catalog to page 9

Panel Mount Sealing PlatePanel MountSealing PlateRear Shell Rear ShellRear Shell O-RingO-RingFront Shell Front ShellFront Shell Rear ShellFemale Contact Female ContactMale ContactInterfacial Seal Silicone Sealant Silicone SealantSilicone Sealant Silicone SealantInterfacial SealMale ContactFront ShellEpoxy SealantEpoxy Sealant Contacts have specialwatertight force fit seal into insulator 0.375 (9.5) max. forsizes 9, 15, 25 & 370.375 (9.5) max. forsizes 9, 15, 25 & 370.375(9.5)max.0.375(9.5)max.Epoxy sealed 20 AWG(0.5 mm > 2 ) X 20 inch(51 cm) flying leadsEpoxy sealed 20 AWG(0.5 mm > 2 ) X 20 inch(51...

Open the catalog to page 10

untitled tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } .font4 { font:17.00pt "Arial", sans-serif; } .font5 { font:12.00pt "Tahoma", sans-serif; } .font6 { font:11.00pt "Times New Roman", serif; } professional quality, subminiature-d connectors for indoor/outdoor nonhazardous environmental applications where protection from dust, rain, hose directed water and limited water immersion is required win-d Sries wd sries...

Open the catalog to page 11
