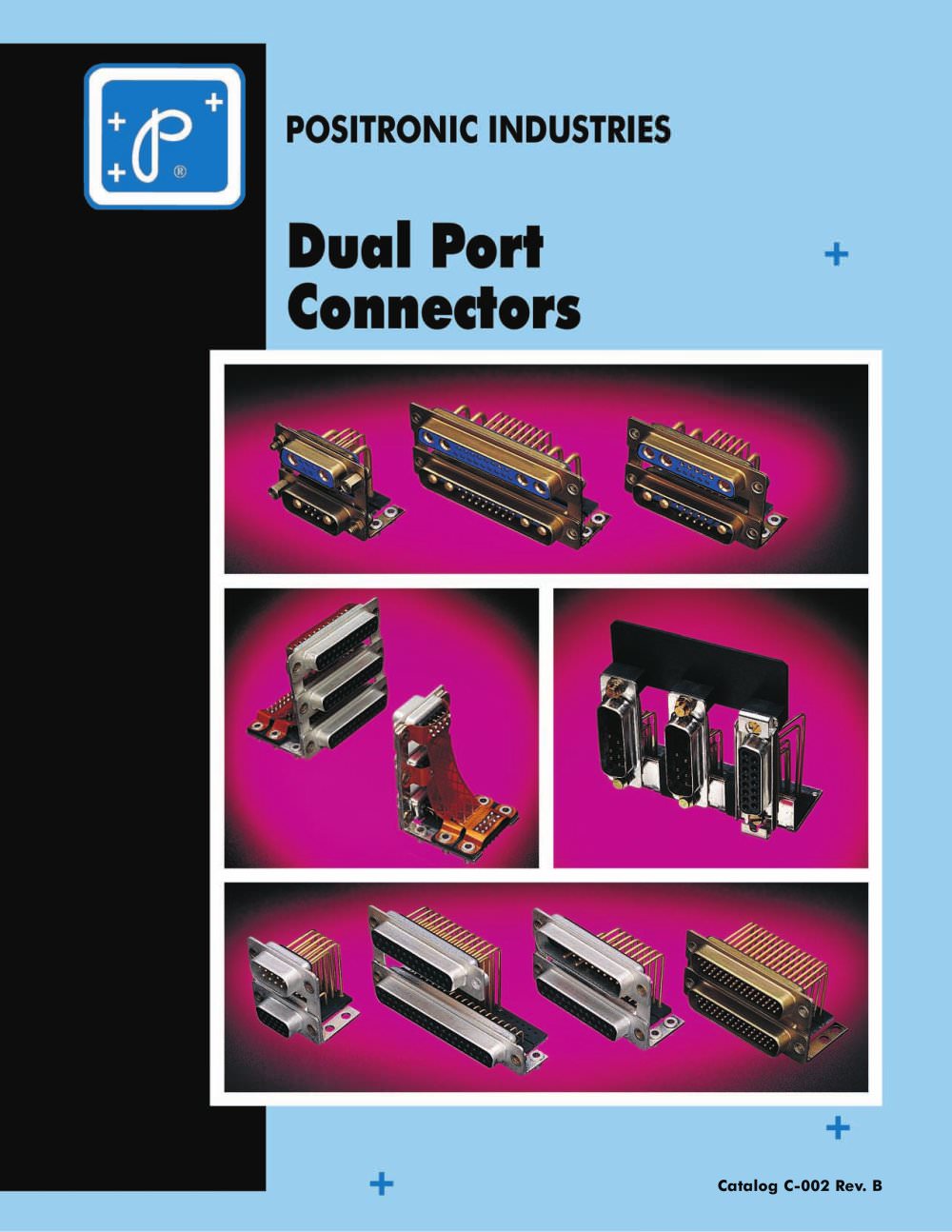

Dual Port Catalog

Product catalog summary

Company Overview: Positronic Industries, established in 1966, specializes in high-quality interconnect products with a focus on customer service and rapid response. The company operates under the Complete Capability concept, encompassing design, tooling, machining, molding, plating, and quality assurance.

Dimensional Tolerances: The catalog outlines tolerances for connector dimensions, such as ±0.001 inches for male contact mating diameters and ±0.015 inches for other dimensions.

Patents: Products are protected by several US patents, with additional patents pending internationally.

Complete Capability:

Design & Development: Emphasizes new and modified connectors to meet industry demands.
Tooling: Provides 80% of new tooling for manufacturing.
Machining: Utilizes automatic screw machines for precision components.
Molding: Produces plastic components with overmold capability.
Plating: Offers gold and other metal finishes meeting military specifications.
Quality Assurance: ISO 9001 certified with a strong TQM program.

Product Features: The Dual Port Series connectors are designed for space-saving and cost-effective assembly, suitable for sheltered environments, and comply with international standards like IEC 807-2 and MIL-DTL-24308.

Materials and Finishes: Connectors are made from materials such as nylon resin, brass alloy, and phosphor bronze, with finishes like gold flash over nickel plate.

Electrical Characteristics: Connectors have a contact current rating of 5 amperes, proof voltage of 1,000 V r.m.s., and insulator resistance of 5 G ohms.

Mechanical Characteristics: Features include size 20 contacts, trapezoidal polarization, and a minimum of 500 mechanical operations.

Climatic Characteristics: Operates within a temperature range of -55°C to +125°C and withstands damp heat for 10 days.

Ordering Information: Detailed ordering information is provided for various connector series, including DP, MDP, DD, XD, and CBDP series.

Specifications:

Connector Types: Includes DD*15, DD*26, DD*44, DD*62 male and female connectors, and mixed density variants like XD*9/15, XD*15/26, XD*25/44, XD*37/62.
Materials: Insulators made from glass-filled polyester or nylon resin, contacts from copper alloy or phosphor bronze, and shells from steel with tin or zinc plating.
Electrical Characteristics: Contact current rating is 5 amperes for standard density and 3 amperes for high density connectors. Proof voltage is 1,000 V r.m.s., and working voltage is 300 V r.m.s.
Mechanical Characteristics: Features size 20 and 22 contacts, with a minimum of 500 mechanical operations per IEC 512-5, and various locking and mounting systems.
Climatic Characteristics: Operating temperature range is -55°C to +125°C.

Recommendations: Provides suggested hole sizes for contact termination and mounting, along with instructions for mounting connectors with mating face positioning.

Applications: Suitable for telecommunications and other applications requiring high-density, reliable connections in controlled environments.

Contact Information: Includes sales and technical agent contacts across Japan, India, Asia-Pacific, Europe, and the Mideast, with headquarters in the USA, France, and Singapore.

Catalog excerpts

Design & Development Designs new connectors and modifies existing connectors to meet industry requirementsՕ Continuously conducts marketing studies to identify industry needs for new products Ongoing interest in unique connector designs Tooling Օ Tooling support for all manufacturing areas within company Provides 80% of new tooling, punch press dies, molds, jigs and fixtures used at Positronic factory locations worldwide > Machining Molding Finished Stock Inventory Machining Օ Automatic screw machines produce finely crafted contacts and hardware for connector bodies Trained technicians operate...

Open the catalog to page 2

untitled tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:16.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Georgia", serif; } PROFESSIONAL QUALITY PRINTED BOARD MOUNT DUAL PORT VERTICALLY STACKED CONNECTOR ASSEMBLY FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS ua Sries Size 20 Contacts, Two Connectors Vertically Stacked and Assembled As a Single Connector Unit Professional Quality Connectors IEC Publication 807-2 Performance Level Two U.L. Recognized CSA Recognized File #E49351 File...

Open the catalog to page 4

untitled tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:16.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Impact", sans-serif; } .font4 { font:14.00pt "Sylfaen", serif; } .font5 { font:6.00pt "Tahoma", sans-serif; } .font6 { font:24.00pt "Times New Roman", serif; } DP [MDP^ Sries PROFESSIONAL QUALITY PRINTED BOARD MOUNT DUAL PORT VERTICALLY STACKED CONNECTOR ASSEMBLY FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS 90° PRINTED BOARD MOUNT CONNECTOR 4 ROW CONNECTOR UNIT, 0.283 [7.19]...

Open the catalog to page 6

untitled tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:16.00pt "Arial", sans-serif; } .font4 { font:11.00pt "Sylfaen", serif; } .font5 { font:24.00pt "Times New Roman", serif; } DP [MDP^ Sries PROFESSIONAL QUALITY PRINTED BOARD MOUNT DUAL PORT VERTICALLY STACKED CONNECTOR ASSEMBLY FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS 90° PRINTED BOARD MOUNT CONNECTOR 6 ROW CONNECTOR UNIT, 0.283 [7.19] CONTACT EXTENSION 0.886 [22.50] ±0.010 0.769...

Open the catalog to page 7

untitled tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:16.00pt "Arial", sans-serif; } .font3 { font:20.00pt "Arial", sans-serif; } .font4 { font:62.00pt "Courier New", monospace; } .font5 { font:14.00pt "Sylfaen", serif; } .font6 { font:8.00pt "Times New Roman", serif; } .font7 { font:24.00pt "Times New Roman", serif; } DP [MDP^ Sries PROFESSIONAL QUALITY PRINTED BOARD MOUNT DUAL PORT VERTICALLY STACKED CONNECTOR ASSEMBLY FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS METRIC SYSTEM...

Open the catalog to page 8

untitled tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:11.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial", sans-serif; } .font6 { font:20.00pt "Arial", sans-serif; } .font7 { font:9.00pt "Georgia", serif; } .font8 { font:24.00pt "Times New Roman", serif; } DP [MIDP^ Sries PROFESSIONAL QUALITY PRINTED BOARD MOUNT DUAL PORT VERTICALLY STACKED CONNECTOR ASSEMBLY FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL...

Open the catalog to page 9

4-40 threadShellsAngle bracketNylon insert4-40 thread, 2.5 threadsnominal in metal 0.0050.120 [3.05] ј0.0050.225 [5.72]ѱ0.0050.040 [1.02] Thick mounting brackets0.0100.062 [1.57] Thick printed boardѱ0.0030.123 [3.12] 4-40 thread Push-on fastener, beryllium copper R6/N6 R7/N7 R8/N8 R2/N2 Typical Part Number:DPB25FN8/25FR8X > For push-on fastener use code N2,N6,N7 or N8in step 4 and step 7 or ordering information.Rapid insert mounting bracketto printed board fastener. DPA25FR7T/15FN7T0 DPA25FR8/25FR8X > DIMENSIONS ARE IN INCHES [MILLIMETERS].ALL DIMENSIONS ARE SUBJECT TO CHANGE.

Open the catalog to page 10

STEP 1 2 3 4 5 6 7 8 9 DPA 25 F N6T / 25 F N6T X STEP 1 - Basic SeriesSTEP 2 - DPSeries Connector Variants STEP 9 - Special Options > DPA SeriesDPB Series DPC SeriesUpper ConnectorLower ConnectorOptions are thesame as forUpperConnectorSteps 2, 3 and 4. Consult Sales Department. M-Male F-Female STEP 8 - Shell Options > 0-Zinc Plated, with Dichromate Seal.X-Tin Plated.Z -Tin Plated and Dimpled - male connector only 9, 15, 25, 29, 37, 50 STEP 3 - Connector GenderSTEP 4 - Locking,Polarizing,Mountingand Push-On Fastener Systems > M-Male F-Female STEP 1 2 3 4 5 6 7 8 9 MPDA 25 F N6T / 25 F N6T X >...

Open the catalog to page 11

untitled tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Georgia", serif; } PROFESSIONAL QUALITY PRINTED BOARD MOUNT HIGH DENSITY DUAL PORT VERTICALLY STACKED CONNECTOR ASSEMBLY FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS High Density Dual Port Sries Size 22 Contacts, Two Connectors Vertically Stacked and Assembled As a Single Connector Unit Professional Quality Connectors U.L. Recognized File #E49351 CSA Recognized File #LR54219 Telecommunication U.L. File #14098 High...

Open the catalog to page 12

untitled tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Georgia", serif; } .font3 { font:14.00pt "Sylfaen", serif; } PROFESSIONAL QUALITY PRINTED BOARD MOUNT HIGH DENSITY DUAL PORT VERTICALLY STACKED CONNECTOR ASSEMBLY FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS High Density Dual Port Sries 90° PRINTED BOARD MOUNT CONNECTOR 6 ROW CONNECTOR UNIT, 0.450 [11.43] CONTACT EXTENSION ±0.008 ±0.010 f 0.784 CONNECTOR VARIANT NO. OF CONTACTS A B 15 30 1.213 [30.81] 0.984 [24.99]...

Open the catalog to page 14
