D-Subminiature Connector Catalog

D-Subminiature Connector Catalog
1 / 104 PagesView full catalog

D-Subminiature Connector Catalog

Product catalog summary
Company Overview: Positronic Industries, established in 1966, is a leading manufacturer of high-quality interconnect products, known for its service-oriented approach and quick response to industry needs. The company maintains a reputation for top-quality connectors and holds several US patents, with additional patents pending.
Dimensional Tolerances: The catalog specifies dimensional tolerances for connector components, including male contact mating diameters (±0.001 inches), contact termination diameters (±0.003 inches), and other dimensions (±0.015 inches).
Capabilities and Certifications: Positronic offers comprehensive capabilities including design, development, tooling, machining, molding, plating, and quality assurance. The company is ISO 9001:2000, AS9100 Rev.B 2004, and ISO 14001 certified.
Product Range: The catalog details various connector series, including MELO-D, EURO-D, MDX, SOLI-D, ORD, HARMO-D, RHAPSO-D, ODD, DENSI-D, and Press-Fit Connectors, each with specific features and contact variants.
Quality Assurance: Positronic maintains a Total Quality Management (TQM) program and can test to various international standards.
Sales and Service: The company offers worldwide sales and service with facilities in the USA, France, India, Puerto Rico, and Singapore.
Proprietary Information: The catalog contains proprietary information, and Positronic assumes no responsibility for the use of this information.
Technical Specifications: The document provides technical specifications for various connector series, including dimensions, materials, finishes, and configurations. It includes details on contact types, plating options, mechanical and electrical characteristics, and ordering information.
Standards and Compliance: The connectors comply with EU Directive 2002/95/EC (RoHS) and meet various international standards such as IEC 60807-2, MIL-DTL-24308, and SAE AS 39029.
Ordering Procedures: Ordering involves selecting options from multiple steps, covering series, connector variants, gender, contact termination type, mounting style, hoods, locking systems, shell options, and environmental compliance.
Recommendations: Jackscrews are recommended for variants with high mating forces to minimize contact damage. Non-magnetic versions are available upon request.
Key Features: The connectors offer various mounting styles and locking systems, including right angle and straight printed board mount connectors, and ferrite inductors for EMI/RFI noise suppression.
Critical Information: Contact plating options include gold flash over nickel plate, and shells are available in steel or brass with various plating options. Mechanical characteristics include a contact retention force of 6 lbs. (27N).
Military Specifications: The document details military quality connectors, specifically the Harmo-D and Rhapso-D series, designed for use in sheltered, mildly corrosive environments. These connectors are qualified to MIL-DTL-24308 and meet IEC 60807-2, Performance Level One standards.
Additional Features: The document includes information on available accessories, such as hoods and locking systems, and provides suggested printed board hole sizes for mounting.
See more

Catalog excerpts

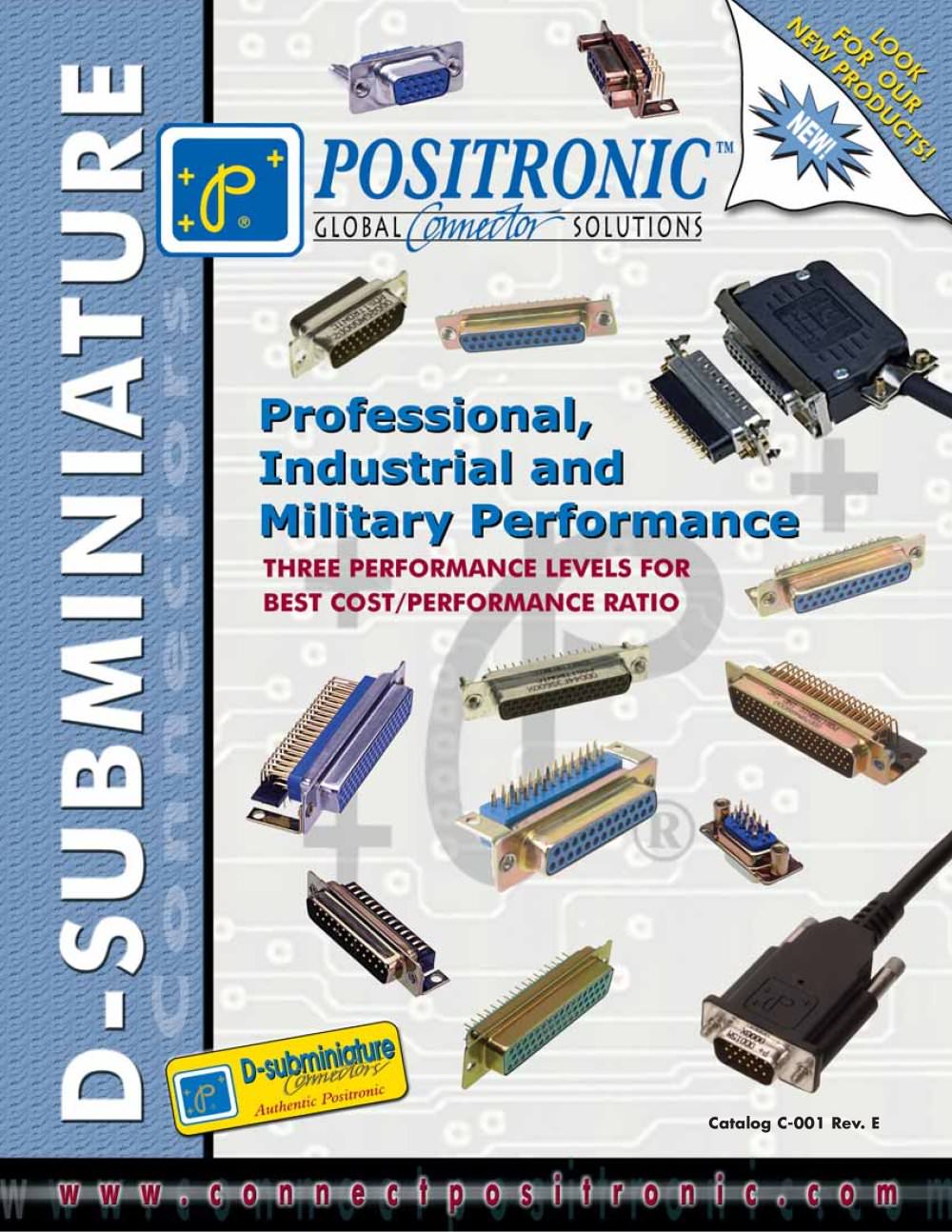

D-Subminiature Connector Catalog -2
