Positronic Industries

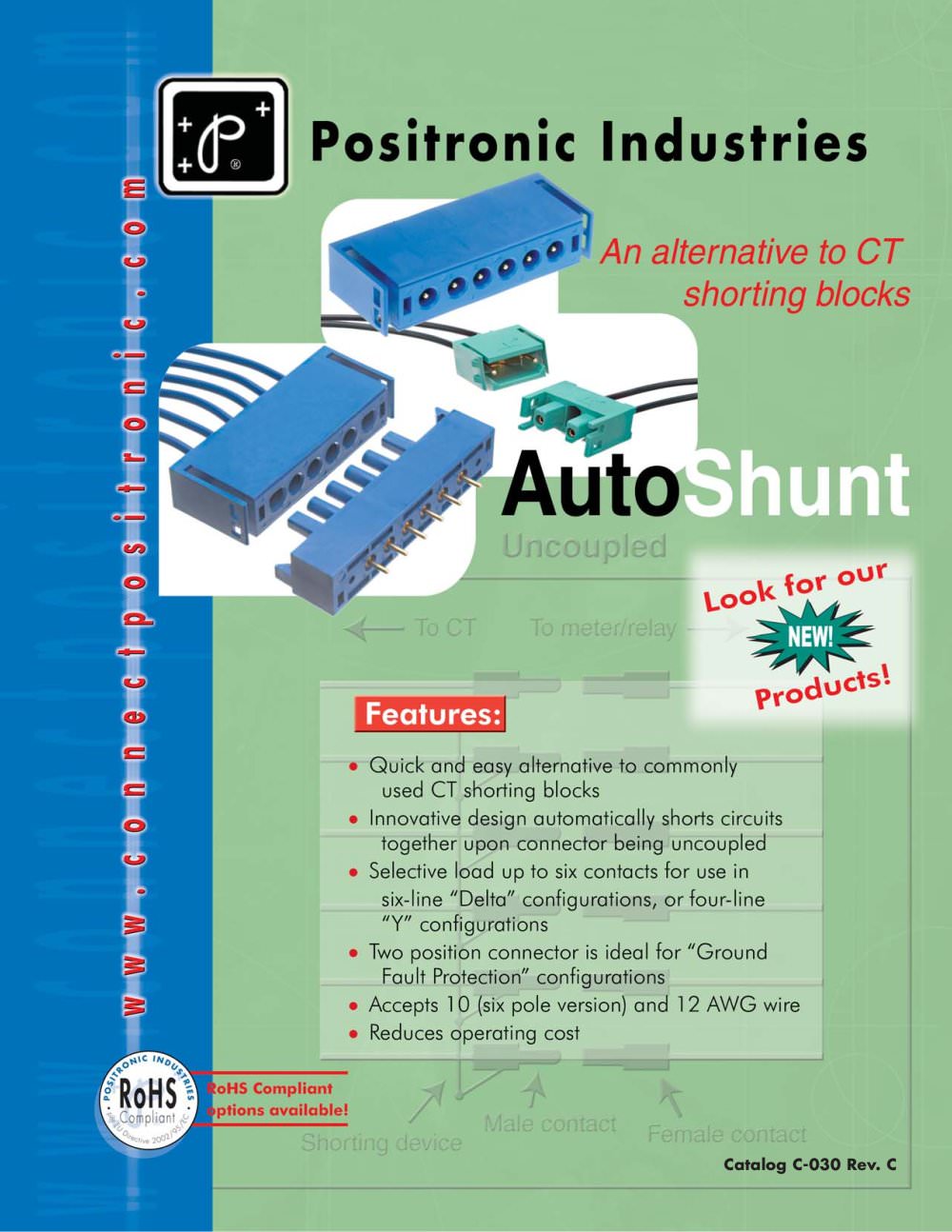

AutoShunt Brochure

AutoShunt Brochure

Product catalog summary

Overview: This document is a technical catalog for AutoShunt connectors by Positronic Industries, detailing specifications, materials, electrical and mechanical characteristics, and ordering information for six and two pole connectors.

Materials and Finishes: The insulator is made of glass-filled polyester or nylon, rated UL 94V-0. Contacts are precision machined copper alloy with gold flash over nickel, with optional finishes. Shorting clips and swaged rivets are also copper alloy with gold plating.

Electrical Characteristics: Connectors have a contact current rating of 15 amperes continuous, initial contact resistance of 0.003 ohms max, insulation resistance of 5 G ohms, and voltage proof of 2,000 V rms. They are designed for a working voltage of 600 VAC and a temperature range of -55°C to +125°C.

Mechanical Characteristics: Features include removable contacts, a locking system for various mounting applications, and polarization in the insulator design. Rated for 50 mechanical operations.

Ordering Information: A detailed code numbering system is provided for ordering connectors, specifying options for series, connector variants, gender, contact termination type, mounting style, cable adapter, contact plating, and environmental compliance.

Tools and Accessories: Recommended tools for crimp contacts include crimp tools, extraction tools, and insertion tools. Part numbers for various connector configurations and accessories like hoods and mounting brackets are listed.

Compliance: Connectors comply with EU Directive 2002/95/EC (RoHS).

Specifications: Dimensional tolerances for a female connector model are outlined, with contact sizes ranging from 0 to 22 and current ratings up to 100 amperes. Termination options include crimp, wire solder, straight solder, right angle solder, straight press-fit, and right angle press-fit. Compliance with standards such as PICMG 2.11, PICMG 3.0, and VITA 41 is noted.

Product Features: Features include hot swap capability, AC/DC operation, signal contacts for hardware management, blind and sequential mating, and a large surface area contact mating system. Available in multiple configurations and package sizes, with a wide variety of accessories.

Product Categories:

Power: Contact sizes 8, 20, and 22 with current ratings up to 40 amperes. Options include thermocouple contacts and environmentally sealed versions.
D-Subminiature: Contact sizes 16, 20, and 22 with current ratings up to 13 amperes. Available in industrial and military quality levels.
Rectangular: Contact sizes 12, 16, 20, and 22 with current ratings up to 25 amperes. Features include non-corrodible construction and EMI/RFI shielding.
Circular: Connectors can be part of cable assemblies, offering overmolding and shielding options.
Cable: Contact sizes 8, 12, 16, 20, and 22 with current ratings up to 40 amperes. Designed for high vacuum applications with specific leakage rates.

Global Locations: Lists Positronic's global locations, including headquarters and sales offices in North America, Asia/Pacific, Europe, and the Mideast, with contact information for each location.

Compliance and Qualifications: Connectors meet various qualifications such as MIL-DTL-24308, Goddard Space Flight 311P, SAE AS 39029, IP65, IP67, and Space-D32, ensuring suitability for diverse applications.

Catalog excerpts

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:17.00pt "Arial", sans-serif; } .font6 { font:37.00pt "Arial", sans-serif; } Six Pole AutoShunt AutoShunt Positronic Industries connectpositronic.com TECHNICAL CHARACTERISTICS I X MATERIALS AND FINISHES: MECHANICAL CHARACTERISTICS: o m Insulator: Glass-filled polyester, UL 94V-0. Precision machined copper alloy...

Open the catalog to page 2

DIMENSIONS ARE IN MILLIMETERS [INCHES].ALL DIMENSIONS ARE SUBJECT TO CHANGE. www.connectpositronic.com

Open the catalog to page 3

DIMENSIONS ARE IN MILLIMETERS [INCHES].ALL DIMENSIONS ARE SUBJECT TO CHANGE.www.connectpositronic.com size="-2">

Open the catalog to page 4

MATERIALS: PLATING:STANDARD FINISH: Copper alloy Gold flash over nickel plate. OPTIONAL FINISHES: 0.76[0.000030] gold over nickelby adding -14 suffix onto part number.Example:FC110N2-14 1.27յ[0.000050 inch] gold over nickel by adding -15 suffix onto part number.Example:MC112N-15-381.0 > SHOWN FOR REFERENCE ONLY SHOWN FOR REFERENCE ONLY TOOLDESCRIPTION MC110N FC110N2 MC112N-381.0 FC112N2-381.0 9501-0-0-0 with9502-19-0-0Positioner 9501-0-0-0 with9502-19-0-0Positioner Crimp Tool 9509-6-3-0 9509-6-3-0 Extraction Tool 9081-4-0-0 9081-4-0-0 9081-4-0-0 9081-4-0-0 > DIMENSIONS ARE IN MILLIMETERS [INCHES].ALL...

Open the catalog to page 5

Positronic Industriesconnectpositronic.com SIX POLE STEP 1 - BASIC SERIES STEP 9 - SPECIAL OPTIONS > PLZ - PLZ Series -14 - 0.76[0.000030] gold overnickel-15 - 1.27յ[0.000050 inch] goldover nickel STEP 2 - CONNECTOR VARIANTS > 6W6 - Six (6) size 16 contacts CONTACT TECHNICAL SALES FOR SPECIAL OPTIONS STEP 3 - CONNECTOR GENDER > I C I N M-Male F-Female N D U R O S T T STEP 8 - ENVIRONMENTAL COMPLIANCE OPTIONS > I e r C E E / /AA- Compliant per EU Directive2002/95/EC (RoHS) STEP 4 - CONTACT TERMINATIONTYPE > U D 5 i r e 9 2 / 0 - Order contacts separately for cable connectors.1 - Removable contact,...

Open the catalog to page 6

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:17.00pt "Arial", sans-serif; } .font5 { font:12.00pt "Georgia", serif; } .font6 { font:9.00pt "Times New Roman", serif; } TYPICAL CONNECTOR ASSEMBLY Female Crimp Contact Female Insulator Swaged Rivet. Shorting Clip. Maie Crimp Contact Maie Insulator FEMALE CONNECTOR The Positronic AutoShunt system allows circuit to be insulated from one another when the system...

Open the catalog to page 7

Positronic Industriesconnectpositronic.com MALE CONNECTOR FEMALE CONNECTOR > TYPICAL PART NUMBER:DFS02M00 TYPICAL PART NUMBER:DFS02F00 TWO POLE CODE F3 AND F4 FOR STRAIGHT SOLDER AND RIGHT ANGLE SOLDER (90˚) PCB MOUNT FEMALE CONNECTORS FEMALE,STRAIGHT PCB MOUNT FEMALE,RIGHT ANGLE (90˚) PCB MOUNT Specify Code F3 in Step 3 Specify Code F4 in Step 3 SUGGESTED PRINTED BO ARD HOLE SIZES: > Suggest 2.00ر0.08 [0.0790.003] holes for connector mounting holes with push-on fasteners.Suggest ј2.54 [0.100] holes for connector mounting holes with screws. CODE M7 FOR MALE CONNECTORS Screw terminations allow...

Open the catalog to page 8

Female connector installed in flange > MATERIAL:Flange: > TWO POLE Glass-filled, nylon, UL94V-0, black color. > 25.40 [1.000]38.20 [1.504]16.00[0.630] MATERIALS:Hood top and bottom,insert: Hood screws: Cable clamp (not shown): Polypropylene, UL94 V-0.Color: black. Steel with black oxide or Steel with zinc plate and chromate seal Steel, nickel plate. Cable clamp screws: Steel with black oxide or Steel with zinc plate and chromate seal > MALE WITHSHORTING DEVICE HOODBOTTOMHOODTOPINSERT DIMENSIONS ARE IN MILLIMETERS [INCHES].ALL DIMENSIONS ARE SUBJECT TO CHANGE. www.connectpositronic.com

Open the catalog to page 9

MATERIAL: Cooper alloy with gold plate. PLATING:STANDARD FINISH: Gold flash over nickel plate. OPTIONAL FINISHES: 0.76[0.000030 inch] gold over nickel available by adding -14 suffix onto part number.Example:MC112N3-14. 1.27յ[0.000050 inch] gold over nickel available by adding -15 suffix onto part number.Example:FC112N2-15-1565.0. > TWO POLE MALECONTACT FEMALECONTACT WIRE SIZEAWG [MM > 2 ] A ؘB MC112N3 FC112N2-1565.0 12[4.0] 2.49 [0.098] N/A MC114N3 FC114N2-1565.0 14-16[2.5-1.5] 2.06 2.64 [0.081] [0.104] MC116N3 FC116N2-1565.0 16-18[1.5-1.0] 1.70 2.36 [0.067] [0.093] MC120N3 FC120N2-1565.0 20-22-24[0.5-0.3-0.025]...

Open the catalog to page 10

Positronic Industriesconnectpositronic.com STEP 1 - BASIC SERIES STEP 6 - SPECIAL OPTIONS > DF - DragonFly CONTACT TECHNICAL SALES FOR SPECIAL OPTIONS STEP 2 - CONNECTOR VARIANTS > S02 - AutoShunt ConnectorTwo (2) size 16 power contacts N I C I N D U R O S T STEP 5 - ENVIRONMENTAL COMPLIANCE OPTIONS STEP 3 - CONNECTOR GENDER ANDTYPE OF CONTACTS > I T F0-Female, removable contact.Order contactsseparately.F3-Female, solder, straight PCB mount. F4-Female, solder, right angle (90˚) PCB mount.M0-Male, removable contact.Order contactsseparately.M7-Male, screw termination contact.Supplied with2 contacts.CONSULT...

Open the catalog to page 11

UNITED STATES, Springfield, Missouri, Corporate Headquarters > Factory Sales and Engineering Offices(800) 641-4054 PUERTO RICO, Ponce Factory > Factory Sales and Engineering Offices(800) 641-4054 MEXICO > Factory Sales and Engineering Offices(800) 872-7674 CANADA > Factory Sales and Engineering Offices(800) 327-8272 SINGAPORE, Asia/Pacific Headquarters > Factory Sales and Engineering Offices (65) [email protected] ASIA, Direct Sales Offices > China -Shenzhen Sales Office(86) [email protected] -Shanghai Sales Office(86) [email protected]...

Open the catalog to page 12

Contact Sizes: 0, 8, 12, 16, 20 and 22 Contact Sizes: 8, 20 and 22 Current Ratings: Terminations: Qualifications: Crimp, wire sol-der, straight solder, right angle solder and straight press-fit MIL-DTL-24308,Goddard Space Flight 311P, SAE AS 39029, IP65, IP67 To 40 amperesnominal Current Ratings: To 100 amperes Configurations: Multiplevariants in both standard and high densities Terminations: Crimp, wire solder, straight solder, right angle solder, straight press-fit and rightangle press-fit Configurations: Compliance: PICMG 2.11,PICMG 3.0, VITA 41 Multiple variantsin a variety of package sizes...
