sterile steam filter

Product catalog summary

Overview
High flow steam filters by 2fi are designed for the process industries, offering high flow rates and protection against particulate contamination. These filters are particularly recommended for sterilizing grade process sterile air and steam sterilizable liquid filters.

Features

Recleanable 316 stainless steel filter cartridge.
High surface area due to pleated filtration medium.
Robust, all-welded construction with high dirt holding capacity.
Filtration ratings from 1 to 50 micron absolute.
Corrosion-resistant and flow-efficient 316 stainless steel.
Outer stainless steel support cage for added strength.
In-line BSP port connections for easy installation; Tri-clover and weld connections also available.
Flow pressure drop curves available for all media types and micron ratings.
Industrial and sanitary housings available from 10bar to 20bar, with a special range of high-pressure 350 bar rated steel vessels.

Materials of Manufacture

Filter medium, protection mesh, support mesh, inner core, outer guard, and end fittings are all made from Grade 316L stainless steel.
Assembly by TiG welding.
Available in metal fibre, woven wire mesh, and sintered powder.

Cartridge Dimensions

Diameter: 66mm (2.6 inches).
Lengths: 125mm (5 inches), 250mm (10 inches), 498mm (20 inches), 745mm (30 inches), 1012mm (40 inches).

Effective Filtration Area

Plain cylindrical: 0.050m² (0.55ft²).
Pleated: 0.13m² (1.4ft²).

Operating Conditions

Maximum differential pressure: 10bar forward, 2bar reverse.
Maximum continuous operating temperature: 300°C (572°F).

Integrity Testing
All cartridges are integrity tested prior to dispatch, with details of bubble point testing available from 2fi.

Contact Information
For more information, contact Filters for Industry, a Division of Porvair Filtration Group Ltd., located in the UK and USA.

Catalog excerpts

High flow steam filters are manufactured from 316stainless steel providing a high surface area for filtrationpurposes. Demonstrating remarkable flow efficiencyand dirt-holding capacity, 2fi high flow steam filters arerecommended for the protection of sterilising gradeprocess sterile air and steam sterilisable liquid filters. > ? Recleanable 316 stainless steel filter cartridge ? High surface area from pleated filtration medium ? Robust, all-welded construction ? High dirt holding capacity ? Filtration ratings available from 1 to 50 micron absolute ? Extremely high flow rates ? Corrosion resistant and flow efficient 316 stainless steel vessels ? Outer stainless steel support cage for added strength in reversedirection ? In-line BSP port connections for ease of installation. Tri-cloverand weld connections also available ? Flow pressure drop curves available for all media types andmicron ratings ? Full range of industrial and sanitary housings available from10bar to 20bar. A special range of high pressure 350bar rated housings also available >

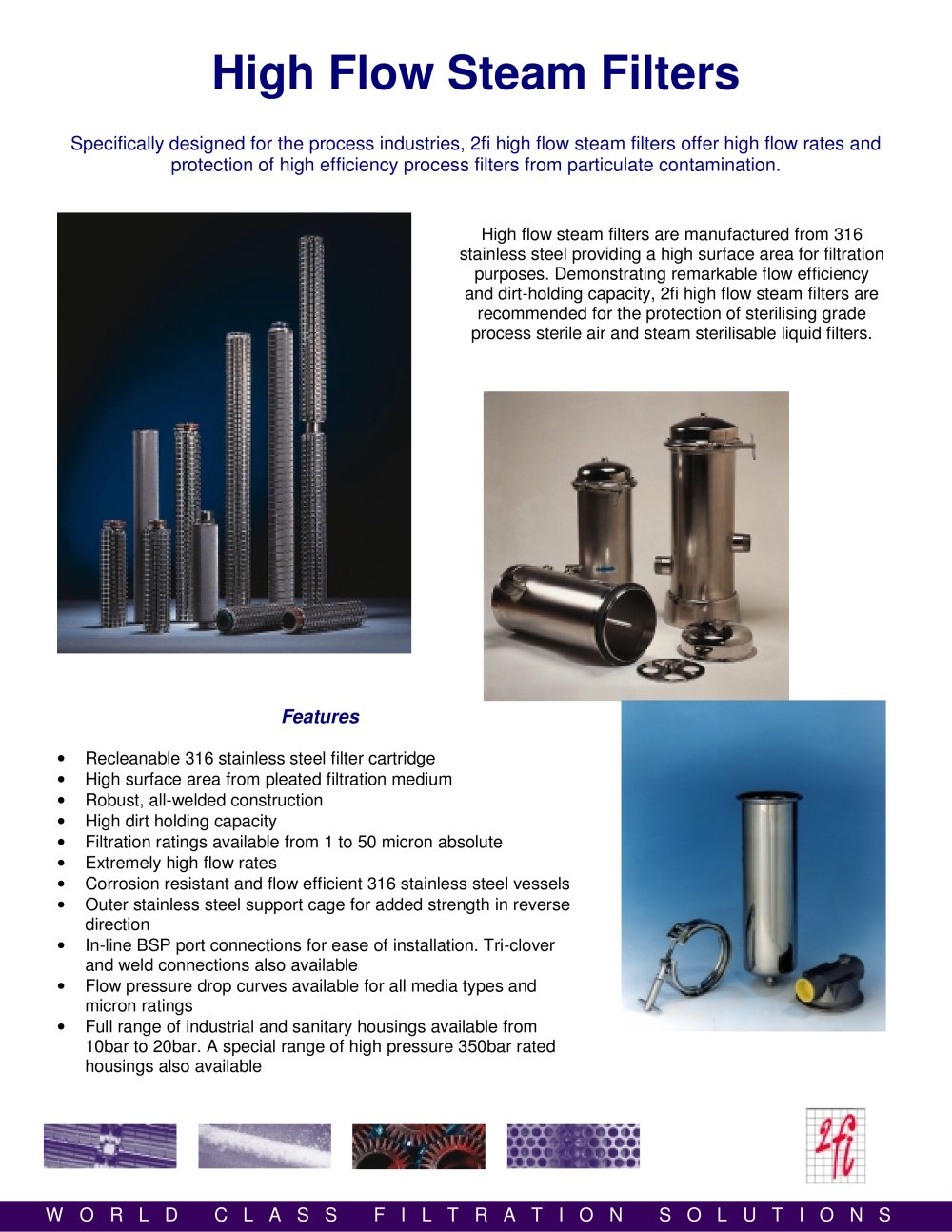

Open the catalog to page 1
