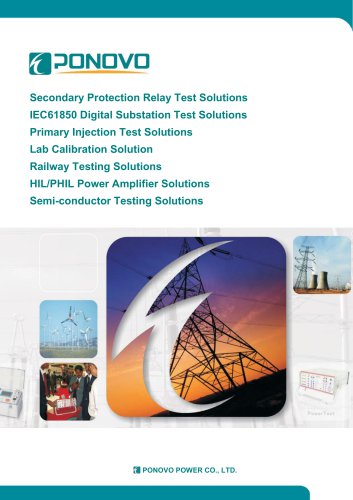

Secondary Protection Relay Test Solutions IEC61850 Digital Substation Test Solutions Primary Injection Test Solutions Lab Calibration Solution Railway Testing Solutions HIL/PHIL Power Amplifier Solutions Semi-conductor Testing Solutions

PONOVO About us Throughout the last decade, PONOVO POWER CO., LTD. (previously known as Power Advanced Co., LTD.) has been focusing on providing professional solutions to over 5000 clients in the fields of intelligent testing and power quality control. 2001: Foundation of PONOVO POWER CO., LTD. 2001: Launch of PWA, the relay test system with in-built output monitoring and recording function 2002: Launch of PW466A, the relay test system with 6 currents and 6 voltages 2003: Launch of PH01, the testing system for Traveling Wave Fault Locater 2004: Launch of PWS, the relay test system for subway...

> Protection Relay Test Solutions L336i SUPER-LIGHT Protection Relay Test Set ❖ 6X15A, 4X300V / 3X20A, 4X300V* ❖ 8 binary inputs and 4 binary outputs ❖ Size(mm): 256X110X395 *Economic Version ❖ 8 binary inputs and 8 binary outputs, 4 counter inputs, 12 low level outputs ❖ Adjustable threshold for binary inputs ❖ In-built output monitoring and recording function PW466i Protective Relay Test Set ❖ 8 binary inputs and 4 binary outputs ❖ Adjustable threshold for binary inputs ❖ In-built output monitoring and recording function PW460 Protective Relay Test Kit ❖ 6x15A,4x300V ❖ 8 binary inputs and 8...

PW41i (Advanced) Protective Relay Test Set ❖ 3*40A,4*300V ❖ 8 binary inputs and 4 binary outputs ❖ Support both local control with 10.4inch touch screen and PC control by PowerTest software ❖ Can import test templates ❖ 8 binary inputs and 4 binary outputs ❖ Local control with LCD and shortcut keys to simplify operation ❖ Can import test templates POM2-6143 Protective Relay Test Set ❖ 6*15A,4*300V ❖ 8 binary inputs and 8 binary outputs, ❖ Support both local control and PC control ❖ 8 binary inputs and 8 binary outputs, ❖ Support both local control and PC control S40A Protection Relay Testing...

T1000 Primary Injection Test Set ❖ In-built voltmeter and ammeter ❖ 120s continuous output time at 1000A T200A Universal Single Phase Test Set/ T200A Single Phase Secondary Injection Test Set ❖ 2 binary inputs and 1 binary outputs ❖ In-built voltmeter and ammeter ❖ Long output time: 120s at 250A PW636i-F Digital Relay Test Kit ❖ 6*32A, 4*300V, 8 fiber optic ports ❖ Can be used both as a conventional relay test kit and IEC61850 testing tools ❖ 8 binary inputs and 8 binary outputs, 4 counter inputs, 12 low level outputs ❖ In-built output monitoring and recording function ❖ 6*20A, 6* 130V, 8 fiber...

PNS330i Digital Protection Relay Test Set ❖ 3* 10A, 4* 120V, 4 fiber optic ports ❖ Can be used both as a conventional relay test set and IEC61850 testing tools ❖ 4 binary inputs and 4 binary outputs ❖ Support local control with 10.4inch touch screen and connect with mobile terminals and cloud by Wi-Fi, 4G, and Bluetooth. ❖ 4 Ethernet optical ports, 4 ST serial optical ports ❖ 1 binary input, 1 binary output ❖ Available programmable upgrade, all in one Micro SD card ❖ Measuring received fiber optical power PW366Ai Protection Relay Test Set ❖ 12*20A, 4*300V, 8 fiber optic ports ❖ Can be used both...

PCT200X Portable CT/PT Testing System (external power supply type) ❖ Test Standard: IEC60044-1/6, IEC61869-2, ANSI/IEEE C57.13, IS2705 ❖ Can test M/P/TP/PS/PX/PXR type, bushing and GIS type CT ❖ Knee point/Excitation Test check up to 45000V ❖ 7inch built-in touch screen, all test items can be completed automatically after press Run key ❖ The whole machine is only 4kg ❖ Ratio test accuracy better than ±0.05% ❖ Support control through mobile phone and tablet (battery type) ❖ Test Standard: IEC60044-1/6, IEC61869-2, ANSI/IEEE C57.13, IS2705 ❖ Can test M/P/TP/PS/PX/PXR type, bushing and GIS type...

Panel Mount Type ❖ PAC2000B 1X200ARMS,2400VA/phase PA460Bi Panel-mounted Power Amplifier PAS Series Switching-mode 4-Quadrant Power Amplifier ❖ PAS30i 30kW/kVA, 3 phases, (270VrmsX37.5A and ±382VX 26.5A)/phase

PQC700i Series Universal Power Quality Calibrator ❖ 3x480V/3x240V, 3x10A output ❖ Harmonic, inter-harmonics, flicker, voltage swells and dips can be generated. ❖ Local control with 8.4inch touchscreen and PC control by PQC software ❖ Flicker generation supports IEC61000-4-15 ❖ Rise and fall times <3ps ❖ Wide frequency band, 0~500KHz ❖ High speed playback, sampling rate up to 10MHz ❖ Playback COMTRADE file and edit waveform ❖ Triggered by GPS, binary input and manual PDC Series High DC Primary Current Injection Test Set ❖ 0~15000A/0~20000A DC output ❖ modular designed with changeable modules,...

PONOVO Products Optional Accessories • Current Booster (Phpc01) Phpc01 current booster is designed to supply high compliance voltage even at small current range, suitable for testing high burden electromagnetic current relays. 2 units. Master machine injects pulse current to primary side of CT, slave machine receives and analysis the waveform of induced pulse current at the secondary side so as to judge the polarity is positive or negative automatically by the LED indicator on the kits. PGPS02: It provides GPS synchronization signal in PPS (pulse per second) or PPM (pulse per minute) for synchronized...

PONOVO Software PowerTest Protection Relay Test Software For all the three phase or six phase relay testers of PONOVO, one universal software can be used, the name is PowerTest software. PowerTest is a relay test software that includes different test packages, the Basic package, Protection package, Advanced package, Special package and New Modules. Each package includes different testing modules, that can be used for different kinds of relay testing, and the special package for more testing application, such as transducer, energy meter, etc. Basic package Protection package Advanced package Special...

PONOVO Software PowerTest-some test modules introduction Differential Differential module is suitable for use the 6 output current channels' relay tester, which is applied on transformer, generator and bus bar etc. differential protection equipment test. Because of adopting the 6 currents output, it realizes the two sides three phases test between relay tester and relay equipment. with checking the difference between system and unit, checking the synchronization setting, reclose set time checking and automatic evaluating of testing results. State Sequence In the State-Sequence module, the relay...
