PDC15k High DC Primary Current Injection Test Set Brochure_EN_2026 V2.pdf

Product catalog summary

Overview: The PDC15k High DC Primary Current Injection Test Set is a professional testing solution designed for railway transportation systems. It utilizes high-frequency inversion and linear amplification to deliver high DC current output, suitable for testing DC circuit breakers in various settings, including high-voltage DC converter stations and railway stations.

Key Features:

Modular design with interchangeable modules for flexibility.
Mobile and lightweight, equipped with a portable cart for easy transportation.
High accuracy and quick response with minimal ripple.
Local operation system with user-friendly interface and automatic test report generation.

Functions:

Testing DC circuit breaker operating current and time.
Measuring internal and contact resistance of DC circuit breakers.

Composition:

System includes a control unit, three DC current output units, and a portable cart.
Control unit features a 7-inch touch screen, various ports for connectivity, and emergency stop button.
DC current output units provide up to 5000A per unit.

Software:

Main interface includes Ramp test, DC loop impedance test, and system information.
Ramp test allows for incremental current output to test circuit breaker parameters.
DC loop impedance test measures contact and loop resistance.

Specifications:

Power supply: Single phase 220VAC, 50Hz/60Hz.
Output voltage range: 0~5V, DC current output range: 0~15000A.
Accuracy: ±1% for 3000A~15000A, <0.5% ripple.
Environmental conditions: Operating temperature 0~+40 ºC, storage temperature -25 ºC ~+70 ºC.

Environmental and Safety:

IP22 protection rating.
Operates within a wide range of environmental conditions.

Company Background: Ponovo Power Co., Ltd. has been providing intelligent testing and power quality control solutions since 2001, serving over 5000 clients globally.

Catalog excerpts

PDC15k High DC Primary Current Injection Test Set Brochure_EN_2026 V2.pdf-1

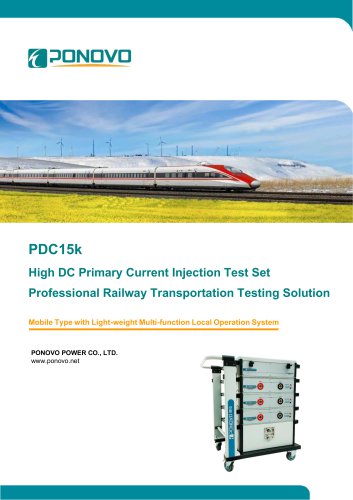

PDC15k High DC Primary Current Injection Test Set Professional Railway Transportation Testing Solution Mobile Type with Light-weight Multi-function Local Operation System PONOVO POWER CO., LTD. www.ponovo.net

Open the catalog to page 1

PDC15k High DC Primary Current Injection Test Set Brochure_EN_2026 V2.pdf-2

PDC15k High DC Primary Current Injection Test Set PDC15k High DC Primary Current Injection Test Set adopts highfrequency inversion and linear amplification principle to realize the high DC current output capability. PDC15k is modular designed with changeable modules, single module is small in size and light in weight, users can flexibly select current modules according to on-site needs. Multi-functions completed by local control software. With high accuracy and quick response, PDC15k could be used for testing different characteristics of DC circuit breaker release, such as trip current value...

Open the catalog to page 2

PDC15k High DC Primary Current Injection Test Set Brochure_EN_2026 V2.pdf-3

PDC15k High DC Primary Current Injection Test Set Composition and panels PDC15K is composed of 1 system control unit, 3 DC current output unit and a portable cart. Control unit DC current output unit Carrying trolley with pull-out storage box Control unit ▪ Top Panel Power supply connector Operation state indicator for each DC current output unit Power switch 7.0inch touch screen Ground port Binary input and output port Output total current measurement port Output port voltage measurement port Stop button Feedback voltage input port Emergency Ethernet stop button port

Open the catalog to page 3

PDC15k High DC Primary Current Injection Test Set Brochure_EN_2026 V2.pdf-4

PDC15k High DC Primary Current Injection Test Set ▪ Rear Panel Control port 1: connect with DC current output unit 1 Control port 3: connect with DC current output unit 3 Control port 2: connect with DC current output unit 2 Control port 4: reserved in PDC15K DC current output unit ▪ Front Panel Power on/off indicator, Run indicator, Overheat indicator, Overload indicator and fault indicator DC current output Remaining charging power indicator Measurement port of output current Control port: connect with Control u

Open the catalog to page 4

PDC15k High DC Primary Current Injection Test Set Brochure_EN_2026 V2.pdf-5

PDC15k High DC Primary Current Injection Test Set Software Introduction Main interface ❖ The main interface has three function menus: Ramp test, DC loop impedance test and About information. ❖ Ramp test can output current in incremental mode to test the DC circuit breaker action current, action time, etc. ❖ DC loop impedance test can do contact resistance and loop resistance test. ❖ About is some basic information of this test system. Ramp test interface ❖ Including Ramp test parameter setting, Ramp test monitoring and Quick test result display. ❖ Ramp test parameter setting can set start value,...

Open the catalog to page 5

PDC15k High DC Primary Current Injection Test Set Brochure_EN_2026 V2.pdf-6

About information ❖ About information includes software Version, Release Date, Model and company information. Specifications General

Open the catalog to page 6

PDC15k High DC Primary Current Injection Test Set Brochure_EN_2026 V2.pdf-7

PDC15k High DC Primary Current Injection Test Set General Automatic ramp output Current output mode Control unit Quantity Display screen Manufacturer-specific software update interface DC current output unit Quantity Current output Portable cart Quantity 1000×1020×600mm(W×H×D) contains four universal wheels and a storage box for cables Binary inputs Number Input characteristics Accuracy of timing Binary outputs Number Contact rating DC Loop resistance test Resistance range Accuracy error Testing current Environmental conditions Operation temperature Storage temperature Relative humidity Atmospheric...

Open the catalog to page 7

PDC15k High DC Primary Current Injection Test Set Brochure_EN_2026 V2.pdf-8

Professional Solution Provider For The Power World Since 2001, Ponovo Power has been focusing on providing professional solutions to over 5000 clients in the fields of intelligent testing and power quality control in China and aboard J& No.139 Jinghai Third Road, BDA, Beijing, China. 100176
