Overview of Hydraulic Systems
PONAR WADOWICE offers both standardized and customized hydraulic systems for various industries such as machine tools, metallurgy, mining, woodworking, papermaking, building, agriculture, and handicraft. These systems are designed to meet specific operating conditions and can integrate customer-preferred control equipment.

Industry-Specific Hydraulic Systems

Building Materials Industry: Features a flow of 143-148 dm3, operating pressure of 14 MPa, and electric motor power of 42.5-46.5 kW. Uses HL 46 medium with oil temperatures between 40°-60°C, filtration accuracy of 10 µm, and water-oil coolers dissipating 35-120 kW.
Agricultural Machinery Industry: Flow of 180 dm3, operating pressure of 20 MPa, electric motor power of 74 kW, and tank capacity of 630 dm3. Filtration accuracy is 16 µm.
Machine-Tool Industry: Flow ranges from 6 to 29 dm3, operating pressures from 2 to 13 MPa, and electric motor power from 1.1 to 4.5 kW. Filtration accuracy is 16 µm with air-oil coolers.
Machinery Industry: Flow from 2.2 to 63 dm3, operating pressures up to 32 MPa, and electric motor power from 1.1 to 22 kW. Filtration accuracy is 10-16 µm with air-oil cooling systems.
Means of Transport Industry: Lower flow rates and operating pressures, electric motor power from 0.75 to 1.5 kW, and filtration accuracy of 16-20 µm.
Metal Producing Industry: High flow rates and operating pressures, electric motor power up to 84.2 kW, and filtration accuracy of 6-16 µm with water-oil systems.
Mining Industry: Flow of 27 to 125 dm3, operating pressures up to 32 MPa, electric motor power from 4.4 to 18.5 kW, and filtration accuracy of 20-40 µm.
Casting Industry: High flow rates and operating pressures, electric motor power of 22 kW, and filtration accuracy of 16 µm with air-oil systems.
Sugar Industry: Flow of 140 dm3, operating pressure of 9 MPa, electric motor power of 18.5 kW, and tank capacity of 450 dm3. Filtration accuracy is 16 µm.
Energetic Sector: Varying flow rates and operating pressures, electric motor power up to 5.5 kW, and filtration accuracy of 10-16 µm with air-oil systems.
Chemical Industry: High flow rates and operating pressures, electric motor power of 75 kW, and filtration accuracy of 16 µm.
Automotive Industry: Flow of 9 dm3, operating pressure of 10 MPa, electric motor power of 2.2 kW, and tank capacity of 100 dm3. Filtration accuracy is 16 µm.

Service Offerings
PONAR WADOWICE provides comprehensive services including overhaul and renovation of hydraulic components using original spare parts, system checks, and upgrades. They offer modernization and maintenance services, dynamic diagnostics, and technical consultations.

Consultations and Technical Advice
Expert advice on component replacement, design, operation, and training on maintenance and operation is provided.

Component Testing and Maintenance
Services include assessments for wear and tear, crimping of hydraulic hose fittings, hose replacement, professional pipe bending, oil filtration, and evaluation of oil purity according to NAS and ISO standards.

Assembly and Training
Professional assembly of hydraulic systems with an emphasis on cleanliness and training for end-users on operation and maintenance are provided.

Contact Information
Contact details for various departments are available for further inquiries and support.

Catalog excerpts

hydraulic components and systems >

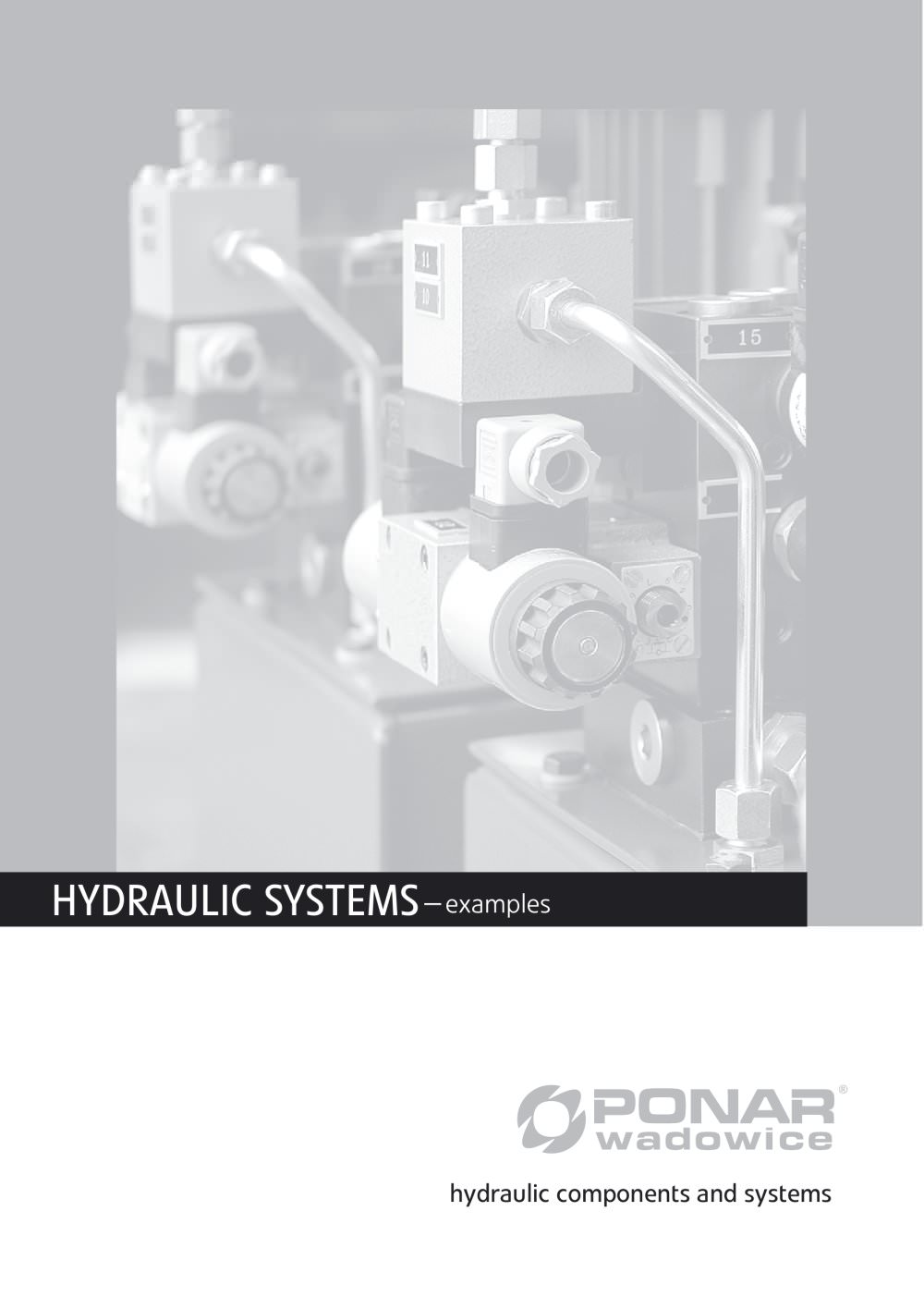

Open the catalog to page 1

hydraulic systems 4building materials industry 5-6agricultural machinery industry 7machine-tool industry 8-13 machinery industry 14-20 means of transport industry ski lift 21means of transport industry ֖ municipal vehicle 22metal producing industry 23-26 mining industry 27-28casting industry 29sugar industry 30 energetic 31-33 chemical industry 34automative industry 35service 36 contact 37 page 3 >

Open the catalog to page 3

We supply both standardized hydraulic systems described in our catalogue and customized solutions, according to agreements with customer.On request, a control unit can be installed on the hydraulic power unit tank.Hydraulic power units are designed for applications in open hydraulic drive systems. They can be engineered using standard or customized design in order to meet customer s requirements.For severe operating conditions or on customer Ғs request, the hydraulic power units can be provided with coolers or heaters of hydraulic fluid while the pump can be installed inside, on top, on the side...

Open the catalog to page 4

Flow in system: > Flow in feed system: 143 dm > 3 Flow in filtration system: 215 dm > 3 Operating pressure: 14 MPa > Electric motor power: 42,5 kW > Electric motor voltage supply: 400 V 50 Hz > Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40-60аC Tank capacity: 400 dm > 3 Medium: Water > Cooler type: water-oil Dissipated: 35-68 kW > page 5 size="-1">

Open the catalog to page 5

Flow in system: > Flow in feed system: 148 dm > 3 Flow in cooling system: 220 dm > 3 Flow in filtration system: 148 dm > 3 Operating pressure: 14 MPa > Electric motor power: 46,5 kW > Electric motor voltage supply: 400V 50Hz > Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40-60аC Tank capacity: 400 dm > 3 Medium: Water > Cooler type: water-oil Dissipated: 55-120 kW > page 6 size="-1">

Open the catalog to page 6

Flow in system: > Flow in feed system: 180 dm > 3 Flow in filtration system: 270 dm > 3 Operating pressure: 20 MPa > Electric motor power: 74 kW > Electric motor voltage supply: 400 V 50 Hz > Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40-60аC Tank capacity: 630 dm > 3 Filtration accuracy: 16 m > page 7 size="-1">

Open the catalog to page 7

Flow in system: > Flow in feed system: 12 dm > 3 Flow in filtration system: 18 dm > 3 Operating pressure: 5,5 MPa > Electric motor power: 1,5 kW > Electric motor voltage supply: 400 V 50 Hz > Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40-60аC Tank capacity: 50 dm > 3 Filtration accuracy: 16 m > page 8 size="-1">

Open the catalog to page 8

Flow in system: > Flow in feed system: 25 dm > 3 Flow in filtration system: 25 dm > 3 Operating pressure: 5 MPa > Electric motor power: 3 kW > Electric motor voltage supply: 400V 50Hz > Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40-60аC Tank capacity: 70 dm > 3 Filtration accuracy: 16 m > page 9 size="-1">

Open the catalog to page 9

Flow in system: > Flow in feed system: 29 dm > 3 Flow in cooling system: 30 dm > 3 Flow in filtration system: 29 dm > 3 Operating pressure: 13 MPa > Electric motor power: 4,5 kW > Electric motor voltage supply: 400V 50Hz > Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40-60аC Tank capacity: 160 dm > 3 Medium: air > Cooler type: air-oil Dissipated: 4-8 kW > page 10 size="-1">

Open the catalog to page 10

Flow in system: > Flow in feed system: 25 dm > 3 Flow in filtration system: 25 dm > 3 Operating pressure: 5 MPa > Electric motor power: 3 kW > Electric motor voltage supply: 3x400V 50Hz > Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40-60аC Tank capacity: 70 dm > 3 Filtration accuracy: 16 m > page 11 size="-1">

Open the catalog to page 11

Flow in system: > Flow in feed system: 17 dm > 3 Flow in filtration system: 17 dm > 3 Operating pressure: 2 MPa > Electric motor power: 1,1 kW > Electric motor voltage supply: 3x400V 50Hz > Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40-60аC Tank capacity: 250 dm > 3 Filtration accuracy: 10 m > page 12 size="-1">

Open the catalog to page 12

Flow in system: > Flow in feed system: 6/22/27 dm > 3 Flow in filtration system: 55 dm > 3 Operating pressure: 5/4/4 MPa > Electric motor power: 1,5/3/4 kW > Electric motor voltage supply: 3x400V 50Hz > Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40-60аC Tank capacity: 250 dm > 3 Immersion heater Wattage: 3 kW > Supply voltage: 230 V 50Hz > page 13 size="-1">

Open the catalog to page 13

Flow in system: > Flow in feed system: 63 dm > 3 Flow in filtration system: 60 dm > 3 Operating pressure: 32 MPa > Electric motor power: 5,5 kW > Electric motor voltage supply: 400V 50Hz > Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40-60аC Tank capacity: 63 dm > 3 Filtration accuracy: 16 m > page 14 size="-1">

Open the catalog to page 14

Flow in system: > Flow in feed system: 46 dm > 3 Flow in cooling system: 70 dm > 3 Flow in filtration system: 70 dm > 3 Operating pressure: 20 MPa > Electric motor power: 18,5 kW > Electric motor voltage supply: 400 V 50 Hz > Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40-60аC Tank capacity: 250 dm > 3 Medium: air > Cooler type: air-oil Dissipated: 7-14 kW > page 15 size="-1">

Open the catalog to page 15

Flow in system: > Flow in feed system: 5,8 dm > 3 Flow in filtration system: 5,8 dm3 Operating pressure: 18 MPa > Electric motor power: 2,2 kW > Electric motor voltage supply: 400 V 50 Hz > Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40-60аC Tank capacity: 5 dm > 3 Filtration accuracy: 16 m > page 16 size="-1">

Open the catalog to page 16

Flow in system: > Flow in feed system: 63 dm > 3 Flow in cooling system: 95 dm > 3 Flow in filtration system: 95 dm > 3 Operating pressure: 10 MPa > Electric motor power: 11 kW > Electric motor voltage supply: 400V 50Hz > Control voltage: 24 VDC Medium: HL 46 Oil temperature: 40-60аC Tank capacity: 250 dm > 3 Medium: air > Cooler type: air-oil Dissipated: 7-14 kW > page 17 size="-1">

Open the catalog to page 17
