Vacuum packages HYDROPACK

Product catalog summary

Overview: The HYDROPACK series offers compact, efficient, and functional liquid ring vacuum systems with total recirculation. The system includes a pump mounted on a single skid that serves as a separator tank and features a heat exchanger to maintain a stable working temperature.

Key Features:

Compact and functional design derived from the Hydrosys series.
Available in total or partial liquid recirculation models.
High efficiency at both high and low vacuum levels.
Maximum thermal efficiency due to the new heat exchanger design.
Vertical gas discharge with high separation power of the service liquid.
Reliable and robust due to the compact skid design.
Reduced maintenance with easy access to components.
Wide choice of construction materials and customization options.
Option to construct with two pumps on a single skid.

Specifications:

Maximum capacity and power: 450 m3/h and 15 kW.
Materials include carbon steel, AISI 316 stainless steel, Viton Teflon gaskets, and brass valves.

Models and Capacities:

HYDROPACK 2: 3 Kw / 50 Hz / 2p, 4 Kw / 60 Hz / 2p, 80 kg dry weight, 20 liters circulating liquid.
HYDROPACK 4: 5.5 Kw / 50 Hz / 2p, 7.5 Kw / 60 Hz / 2p, 245 kg dry weight, 50 liters circulating liquid.
HYDROPACK 5: 15 Kw / 50 Hz / 2p, 18.5 Kw / 60 Hz / 2p, 440 kg dry weight, 85 liters circulating liquid.

Additional Information: For further combinations and details, customers are advised to consult the Sales Office.

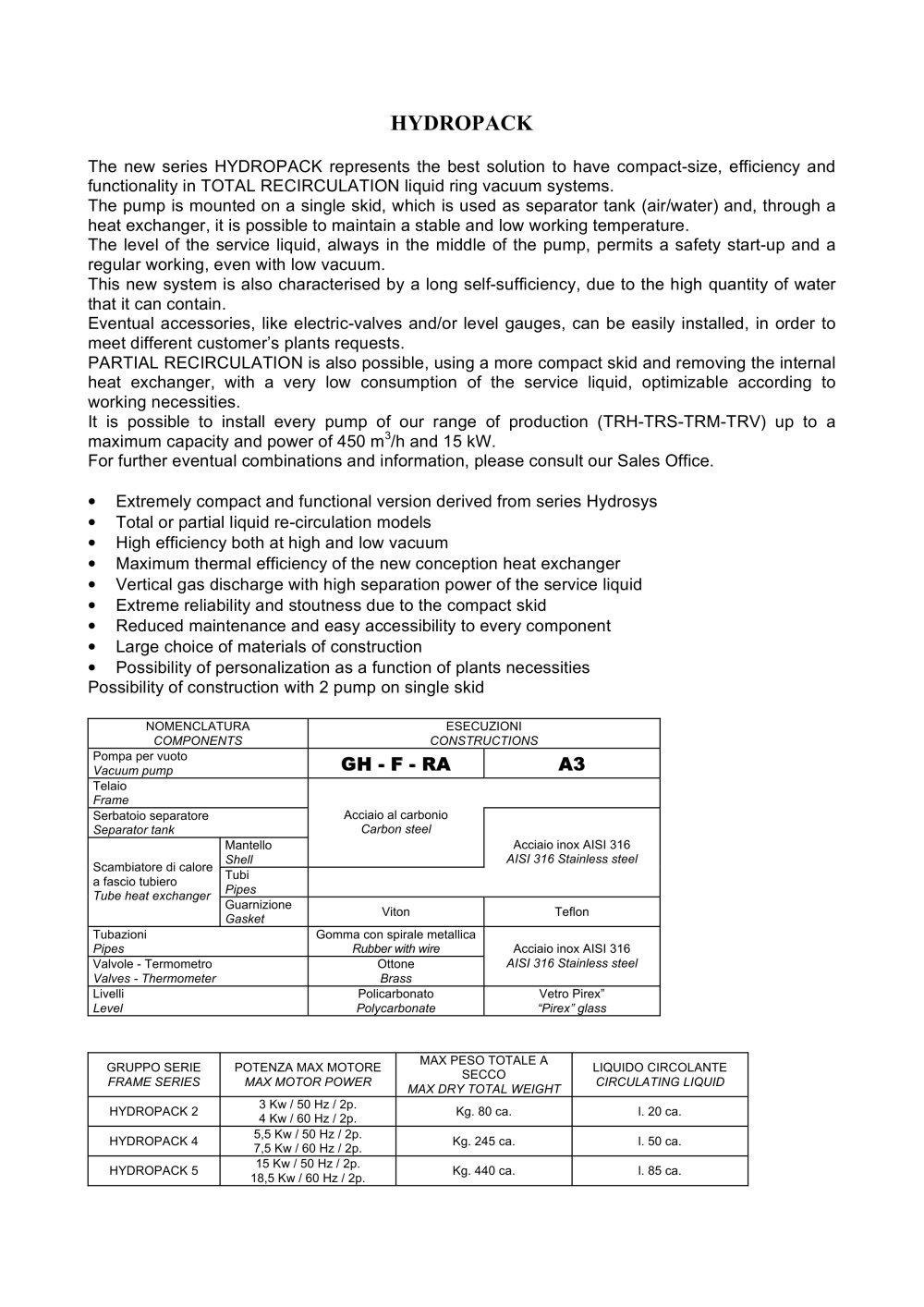

Catalog excerpts

NOMENCLATURA COMPONENTS ESECUZIONI CONSTRUCTIONS Pompa per vuoto Vacuum pump > Telaio Frame Serbatoio separatore Acciaio al carbonio Separator tank Carbon steel Mantello Scambiatore di calore a fascio tubiero Shell AISI 316 Stainless steel Tubi Tube heat exchanger Guarnizione Pipes Acciaio inox AISI 316 Gasket Viton Teflon Tubazioni Pipes Gomma con spirale metallica Rubber with wire Valvole - Termometro AISI 316 Stainless steel Valves - Thermometer Ottone Brass Acciaio inox AISI 316 Livelli Level Policarbonato Polycarbonate Vetro PirexҔ PirexӔ glass GRUPPO SERIE POTENZA MAX MOTORE MAX PESO TOTALE A SECCO LIQUIDO CIRCOLANTE FRAME SERIES MAX MOTOR POWER MAX DRY TOTAL WEIGHT CIRCULATING LIQUID HYDROPACK 2 3 Kw / 50 Hz / 2p. 4 Kw / 60 Hz / 2p. Kg. 80 ca. l. 20 ca. HYDROPACK 4 5,5 Kw / 50 Hz / 2p. 7,5 Kw / 60 Hz / 2p. Kg. 245 ca. l. 50 ca. HYDROPACK 5 15 Kw / 50 Hz / 2p. 18,5 Kw / 60 Hz / 2p. Kg. 440 ca. l. 85 ca. >
