centrifugal pumps TCTM
4Pages

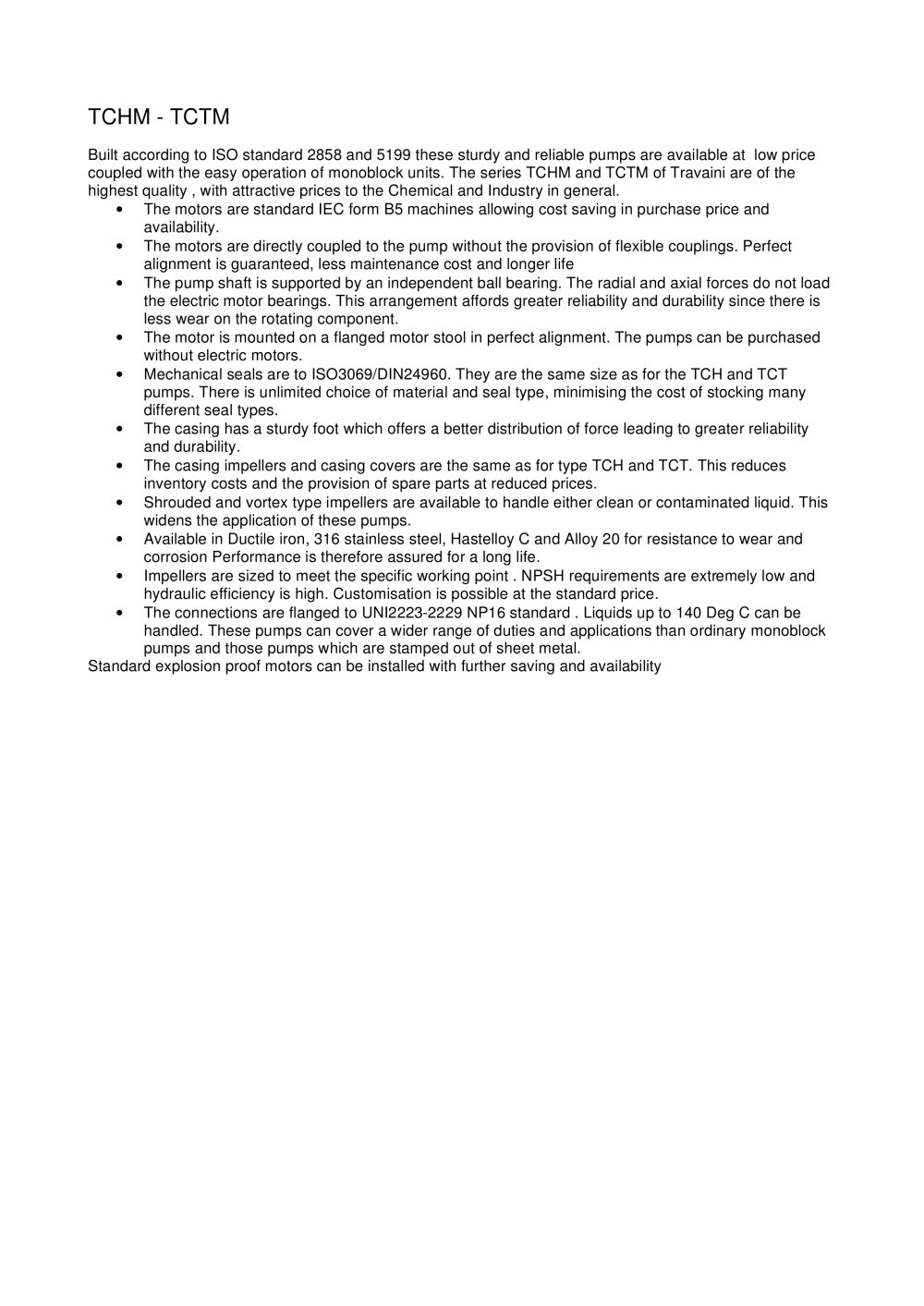

Built according to ISO standard 2858 and 5199 these sturdy and reliable pumps are available at low price coupled with the easy operation of monoblock units. The series TCHM and TCTM of Travaini are of the highest quality , with attractive pri ces to the Chemical and Industry in general. > ? The motors are standard IEC form B5 machines allowing cost saving in purchase price and availability. > ? The motors are directly coupled to the pump without the provision of flexible couplings. Perfect alignment is guaranteed, less maintenance cost and longer life > ? The pump shaft is supported by an independent ball bearing. The radial and axial forces do not load the electric motor bearings. This arrangement affords greater reliability and durability since there is l ess wear on the rotating component. > ? The motor is mounted on a flanged motor stool in perfect alignment. The pumps can be purchased without electric motors. > ? Mechanical seals are to ISO3069/DIN24960. They are the same size as for the TCH and TCT pumps. There is unlimited choice of material and seal type, minimising the cost of stocking many different seal types. > ? The casing has a sturdy foot which offers a better distribution of force leading to greater reliability and durability. > ? The casing impellers and casi ng covers are the same as for type TCH and TCT. This reduces inventory costs and the provision of spare parts at reduced prices. > ? Shrouded and vortex type impellers are available to handle either clean or contaminated liquid. This widens the application of these pumps. > ? Available in Ductile iron, 316 stainless steel, Hastelloy C and Alloy 20 for resistance to wear and corrosion Performance is therefore assured for a long life. > ? Impellers are sized to meet the specific working point . NPSH requirements are extr emely low and hydraulic efficiency is high. Customisation is possible at the standard price. > ? The connections are flanged to UNI2223 - 2229 NP16 standard . Liquids up to 140 Deg C can be handled. These pumps can cover a wider range of duties and applications than ordinary monoblock pumps and those pumps which are stamped out of sheet metal. Standard explosion proof motors can be installed with further saving and availability >

Costruzione / construction Esecuzioni speciali Special constructions POMPETRAVAINI Pompe centrifughe monostadio Materiali di costruzione Monostage centrifugal pumps Materials of construction Serie (tipo di girante) Series (impeller type) Tipo di tenuta sull'albero Type of shaft seal Costruzione monoblocco con lanterna Close-coupled construction with lantern Numero di progetto costruttivo Constructive project number Bocca premente (mm) Discharge flange size (mm) Modifica progetto idraulico Modification of hydraulic project Diametro nominale della girante Nominal diameter of impeller VDMA Nذ....
