centrifugal pumps TCT

Product catalog summary

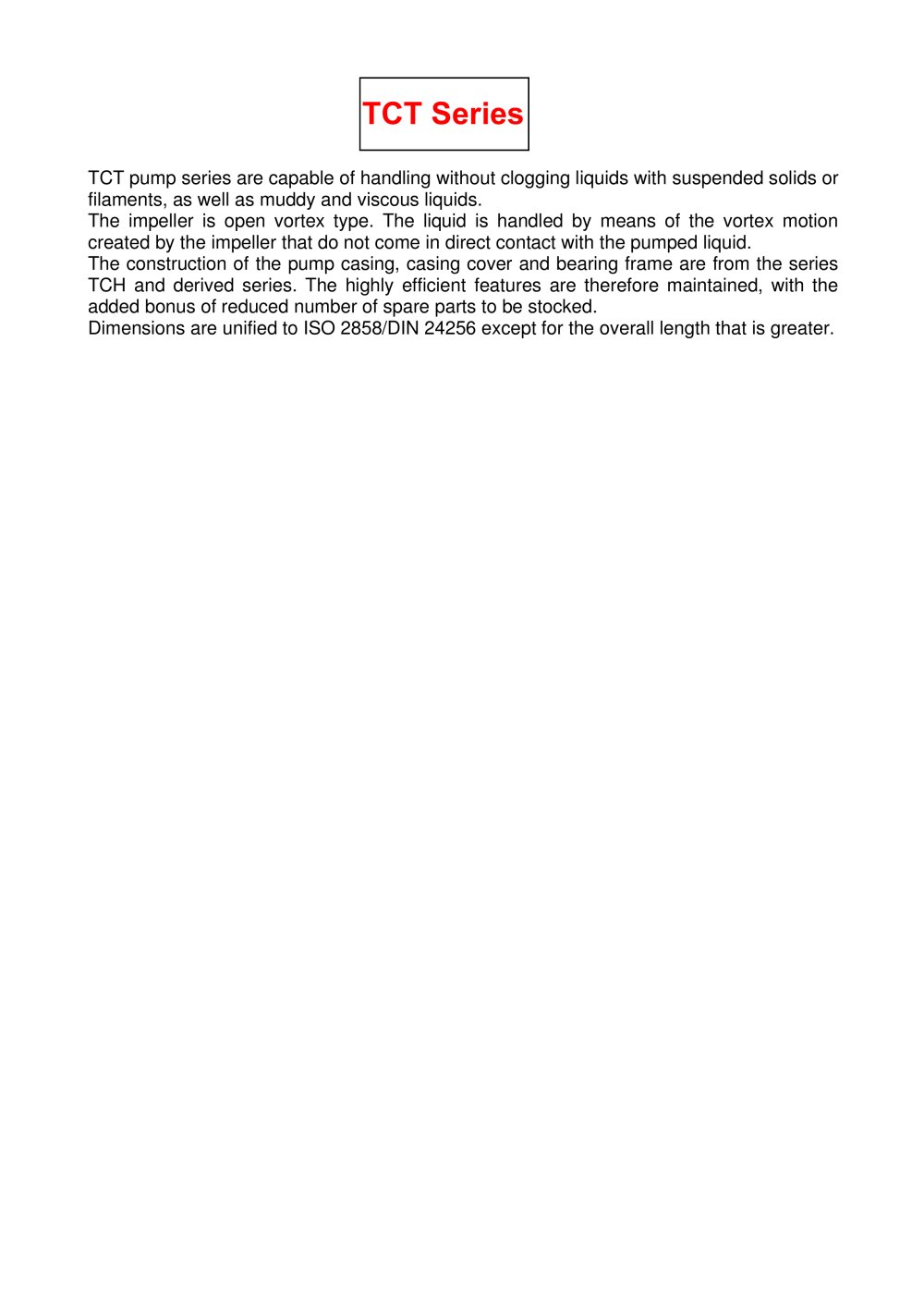

Overview: The TCT pump series is designed to handle liquids with suspended solids, filaments, and viscous or muddy liquids without clogging. It features an open vortex type impeller that facilitates liquid movement through vortex motion, avoiding direct contact with the liquid.

Specifications: The pump casing, casing cover, and bearing frame are derived from the TCH series, ensuring high efficiency and reduced spare parts inventory. The dimensions conform to ISO 2858/DIN 24256 standards, except for a greater overall length.

Construction Details: The pump is a monostage centrifugal type, with options for special constructions and materials. It can be constructed as a close-coupled unit with a lantern on request. The impeller type, discharge flange size, and nominal diameter are specified, along with options for hydraulic project modifications and shaft seal types.

Materials: The pump components are made from various materials, including ductile iron, AISI 420 stainless steel, AISI 316 stainless steel, Hastelloy C, and Incoloy 825. Specific parts like the pump casing, shaft, impeller, bearing housing, wear ring, and shaft sleeve are detailed with their respective materials.

Catalog excerpts

Costruzione / construction Esecuzioni speciali POMPETRAVAINI Special constructions Pompe centrifughe monostadio Costruzione monoblocco con lanterna (su richiesta) Monostage centrifugal pumps Close-coupled construction withlantern (on request) Serie (tipo di girante) Series (impeller type) Materiali di costruzione Esecuzione ad asse verticale Materials of construction Construction with vertical axis Tipo di tenuta sullalbero Ҙ Bocca premente (mm) Type of shaft seal Discharge flange size (mm) Numero progetto costruttivo Diametro nominale della girante Constructive project number Nominal diameter...

Open the catalog to page 4
