Pinking machine

Product catalog summary

Technical Specifications:

Knife Length: 500 mm (19½ inches)
Cutting Height: 15 mm (⅝ inch) at full width, 45 mm (1¾ inches) at half width
Table Size: 950 x 505 mm (37½ x 20 inches)
Overall Dimensions: Length: 950 mm (37½ inches), Width: 800 mm (31½ inches), Height: 650 mm (25½ inches)
Weight: Gross: 64 kg (141 lbs), Net: 44 kg (97 lbs)

Note: Specifications are subject to design changes.

Features:

Solid construction suitable for modest requirements
Efficient for sample cutting, ideal for small quantities
Equipped with a mechanical safety guard
Compact and user-friendly design
Cost-effective models available

Contact Information:

POLYTEX AG, Grundstrasse 1, CH-5012 Schönenwerd, Switzerland
Tel: +41-(0)62 858 90 00
Fax: +41-(0)62 858 90 99
Email: [email protected]
Website: www.polytex.ch

Catalog excerpts

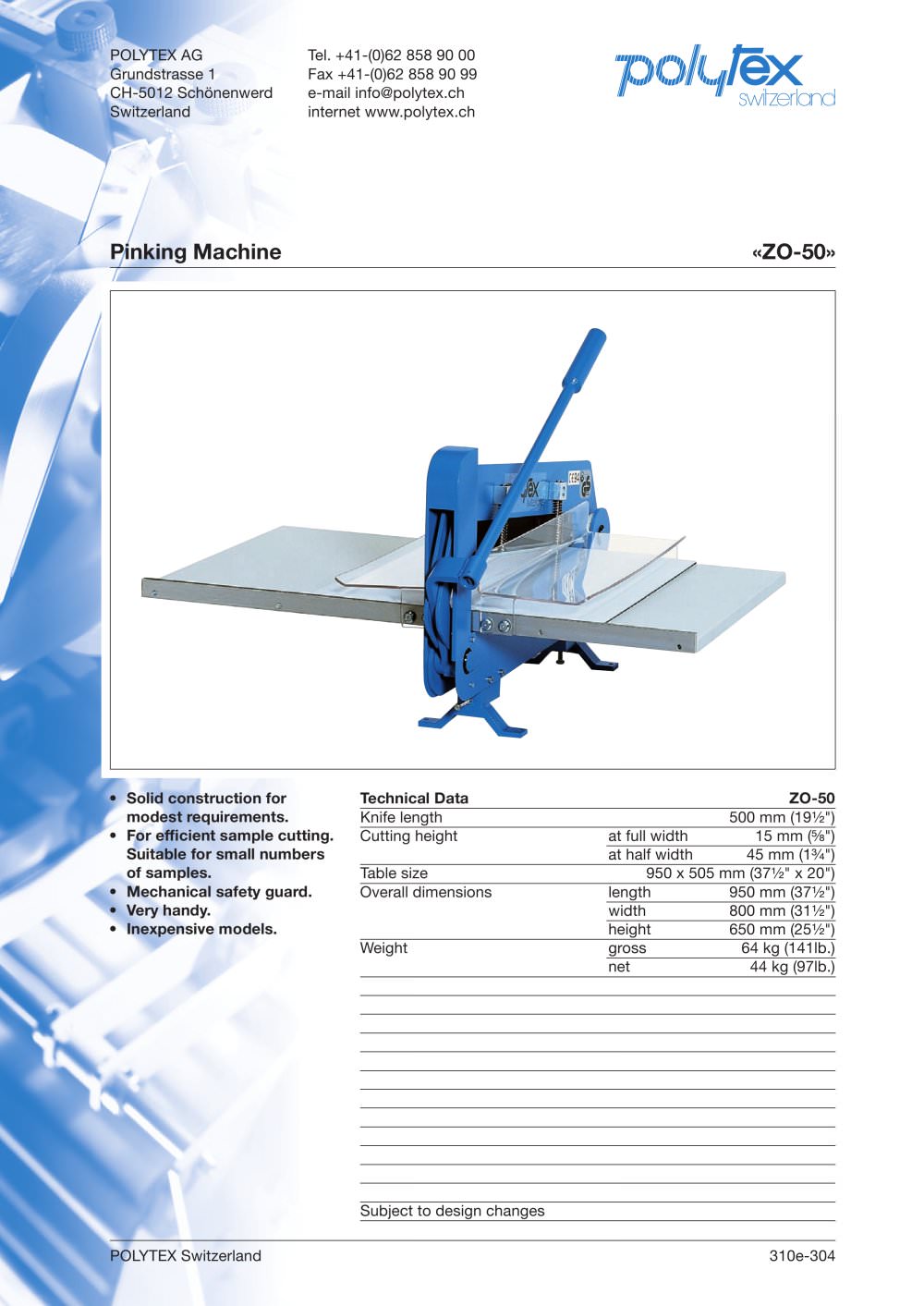

Pinking Machine «ZO-50» POLYTEX Switzerland 310e-304 Technical Data ZO-50 Knife length 500 mm (19¹") Cutting height at full width 15 mm (") at half width 45 mm (1³") Table size 950 x 505 mm (37¹" x 20") Overall dimensions length 950 mm (37¹") width 800 mm (31¹") height 650 mm (25¹") Weight gross 64 kg (141lb.) net 44 kg (97lb.) Subject to design changes • Solid construction for modest requirements. • For efficient sample cutting. Suitable for small numbers of samples. • Mechanical safety guard. • Very handy. • Inexpensive models. POLYTEX AG Grundstrasse 1 CH-5012 Schönenwerd Switzerland Tel. +41-(0)62 858 90 00 Fax +41-(0)62 858 90 99 e-mail [email protected] internet www.polytex.ch
