MSA-600 Micro System Analyzer // In-plane and out-of-plane motion up to 8GHz plus topography analysis
MSA-600 Micro System Analyzer // In-plane and out-of-plane motion up to 8GHz plus topography analysis
The MSA-600 Micro System Analyzer is an advanced optical measurement workstation designed for analyzing the dynamic response and topography of MEMS and microstructures. It provides real-time vibration, planar motion, and surface topography analysis to optimize device performance and manufacturing processes.
- Real-time response measurement up to 2.5 GHz, extendable to 8 GHz with the MSA-600-S model.
- Sub-picometer displacement resolution for high precision.
- Automated system compatible with production environments.
- Integration with MEMS/wafer probe stations for enhanced productivity.
- Real-time Vibration Analysis: Uses laser Doppler vibrometry for out-of-plane vibrations with sub-picometer resolution and frequency response up to 8 GHz.
- Planar Motion Analysis: Utilizes stroboscopic video microscopy for in-plane motion with nanometer displacement resolution.
- Surface Topography Analysis: Employs scanning white-light interferometry for 3D topography with sub-nanometer vertical resolution.
- Optimizing device functionality by measuring real-time response behavior.
- Improving manufacturing processes through detailed evaluation of device parameters.
- Testing MEMS reliability and service life under simulated conditions.
- Sorting MEMS for critical applications by examining dynamic spectrum.
- GHz testing for high-frequency micro-electro mechanical filters.
- Rapid identification and visualization of system resonances and static topography.
- Easy integration and operation, reducing measurement cycle time.
- Accelerates product development and troubleshooting.
- Real-time vibration analysis with scanning laser Doppler vibrometry.
- Planar motion analysis with stroboscopic video microscopy.
- Surface topography analysis with coherence scanning interferometry.
The MSA-600 offers flexible configurations with options for out-of-plane laser vibrometry, planar motion analysis, and static topography. It supports upgrades for extended bandwidth and additional measurement capabilities.
- 8 GHz operational capability for optical measurements.
- Solid portal stand with motorized z-axis for sensor head support and focusing.
- XY positioning stage with tip-tilt unit for sample fine-adjustment and stitching.
- 4-channel data acquisition with signal analyzer.
- Optional function generator for higher GHz range.
- Air-damped or electronically controlled vibration isolation table.
- Integration with probe stations for wafer-level measurement.
- MSA vibration measurement on semi-automatic vacuum probe station.
- Wafer-level testing allows sorting out of defective dies early in the production process, maintaining high yield and quality levels.
- Determining the thickness of pressure sensor membranes by analyzing frequency spectrum.
- Measuring stress to qualify the expected service life of MEMS devices.
- High throughput testing for monitoring production processes.
- Provides direct mechanical response measurements, complementing standard electrical test procedures.
- Helps in maintaining low production costs while ensuring high quality.
- Enables efficient and quick measurement of dynamic behavior of MEMS devices directly on a wafer.
For further details, contact Polytec GmbH, Germany, or visit their website at www.polytec.com.
Catalog excerpts

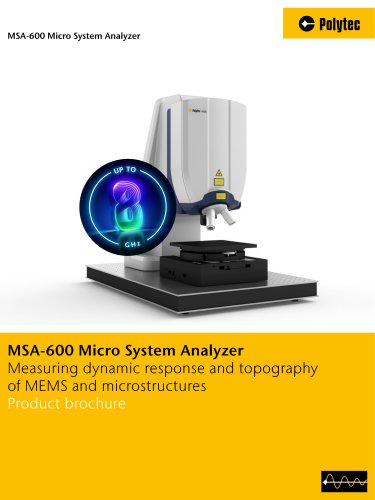

MSA-600 Micro System Analyzer MSA-600 Micro System Analyzer Measuring dynamic response and topography of MEMS and microstructures Product brochure
