PPC-238 Medical

PPC-238 Medical

Product catalog summary

Overview: The document provides technical specifications for the Poindus PPC-238, a medical-grade panel PC designed for diverse installations with advanced features and compliance with medical standards.

Specifications:

Processor: Onboard Intel Raptor Lake Refresh Core3 and Core5, with Core5 120U up to 5GHz and Core3 100U up to 4.7GHz.
Memory: 1 x SO-DIMM DDR5 slot, 8GB RAM standard, expandable up to 32GB.
Display: 23.8" Full HD, 1920x1080 resolution, 350cd/m² brightness, 10-point PCAP multi-touch screen.
Storage: 1 x M.2 PCIe SSD.
Connectivity: Multiple USB ports, HDMI, Type C, RJ45 Ethernet, and COM ports.
Audio: 2 x 2W speakers.
Power: Input 100 ~ 240Vac, Output DC+19V, 90W adapter.
Construction: Aluminum frame with sheet metal chassis, fanless operation, IP65 front panel.
Environmental: Operating temperature 0°C ~ 40°C, storage temperature -20°C ~ 60°C.
Certification: CE/FCC/LVD, EN 60601-1 / EN60601-1-2 compliance.
OS Support: Windows 10/11 (64 bit), Linux (Ubuntu 22.04).

Features:

Advanced cooling with a fanless system for silent operation.
VESA compliance for flexible installation options.
WiFi/BT module available for project-based needs.
Peripheral support includes MSR, iButton, RFID, fingerprint reader, and 2D scanner.

Mechanical & Construction:

Dimensions: 573.36 x 342.59 x 56.89 mm.
Weight: 8.2 Kgs (net), 10 Kgs (gross).
Mounting options include wall, pole, and VESA 75x75, 100x100.

Contact Information: Poindus Systems Corp. Headquarters in Taipei, Taiwan, with additional contacts in the UK and Germany.

Catalog excerpts

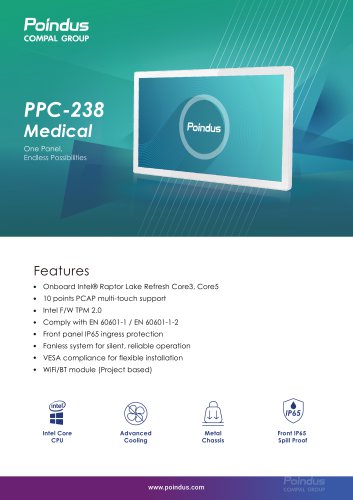

Features • Onboard Intel® Raptor Lake Refresh Core3, Core5 • 10 points PCAP multi-touch support • Front panel IP65 ingress protection • Fanless system for silent, reliable operation • VESA compliance for flexible installation • WiFi/BT module (Project based) Intel Core Advanced Metal Front IP65 CPU Cooling Chassis Spill Proof

Open the catalog to page 1

System Information Intel® Core Processor Series 1 (Raptor Lake Refresh) System Memory - 1 x SO-DIMM DDR5 slot, 8GB RAM as standard. Max. memory support up to 32GB Intel® AMT (vPRO Essential) Display & Touch - 23.8" Full HD Display, resolution 1920x1080 - 350cd/m2, LED backlight -10-point PCAP multi-touch screen - 1 x M.2 E Key (for WiFi/BT project based) - 2 x RJ-48 COM Ports (Support DC+0/5/12V by BIOS setting, default is 0V) - 1 x RJ45 Gigabit Ethernet support 10/100/1000M, WOL, PXE - 1 x RJ11 support DC+12V or 24V (default) by jumper setting, support 2 cash drawers - 1 x 4-pin DIN with lock...

Open the catalog to page 2

- iButton reader, USB type - 13.56MHz RFID reader, USB type - Fingerprint reader, USB type - System fan: Fanless operation - Mounting: Wall / Pole / VESA 75x75, 100x100 - Construction: Aluminum frame with sheet metal chassis - Operating temperature: 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing - Storage Temperature: -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing - Windows 10/11 (64 bit), Linux (Ubuntu 22.04)

Open the catalog to page 3

Poindus Systems Corp. Headquarters Varlink Limited ADASYS GmbH 5F, No.59, Ln. 77, Xing-Ai Rd., Neihu Dist., Taipei City 114, Taiwan. R.O.C Unit 1 Osbaldwick Industrial Estate, Outgang Lane, York, YO19 5UX, UK. Max-Planck-Str. 10 70806 Kornwestheim, Deutschland

Open the catalog to page 4
