DHA, CDA Series - Desiccant Air Dryer
6Pages

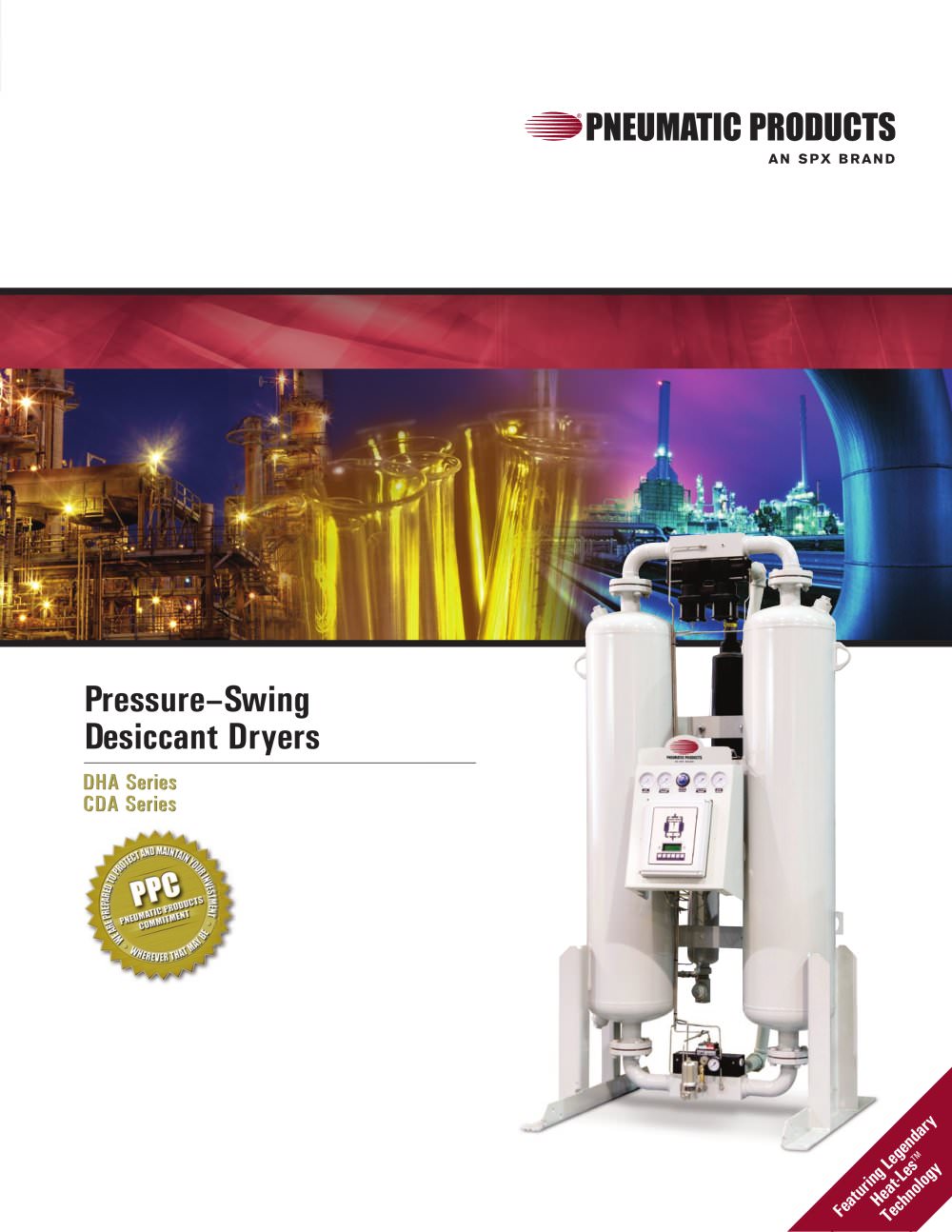

Pressure–SwingDesiccant DryersFeaturing Legendary Heat-LesTM TechnologyEnergy

The DHA / CDA series dryer has been designed specifically to bring you reliable performance with unquestioned durability, even in hostile environments. Offering switching valves with at least a 5 year life means that you do not need to worry about maintenance or calibration – the DHA / CDA is truly a Fit and Forget solution to compressed air drying. But more than this, the inclusion of the AMLOC Energy Management System means that savings in energy are significant enough to show rapid financial payback and therefore years of potential cost savings in the future. Versatile – Suitable for...

TechnologyEnergy Savings Equals Reduced EmissionsSystem Moisture Load Control ( AMLOC® ) – Saves EnergyIt is rare for a dryer to need to operate continuously at full load. To save energy (and therefore money) an AMLOC Energy Management System controls the dryer regeneration potentially resulting in thousands of dollars of energy savings each year. The PTFE coated, stainless steel capacitance probes sense the dielectric strength imparted upon the desiccant by the extracted water vapor. Capable of identifying an aging or fouled bed, the regeneration cycles are managed with precision – even at...

DHA Series and CDA Series – Key Product FeaturesSensory PerceptionAMLOC® Probe proven in over 25,000 installations. Lifetime Warranty. No calibration required.Engineered Performance Non-lubricated Select Series Poppet Valves. The ULTIMATE in reliability.AMLOC® Energy OptimizerSynoptic indication of process phases.RS-232 Communications capable via PLC, computer or modem.4 line X 80 character information center.The complete solution Peace of mind, reliability, energy saving and environmentally friendly all in one packageEnergy saving• Oil free• Filtration as standard• Ideal for remote,...

it WorksMoist, filtered compressed air enters down flow drying Chamber 1 via valve (A). Water vapor is adsorbed onto the desiccant and dry compressed air exits through Valve (B) where, abrasive desiccant dust is captured by an afterfilter. In regeneration mode, a side–stream of dried process air (C) with an affinity for moisture, leverages the heat of adsorption to desorb off–line desiccant Chamber 2. Water vapor releases from the desiccant and evacuates through Valve (D) where our spring loaded flow Expanding Piston Seal Creates positive linear motionrestrictor controls the rate of...

TechnologyEnergy 2Inlet Flow DimensionsApprox.Inlet/OutletDHA@ 100 psig, -40°FinchesWeightConnectionsModelsscfmH WDlbs.inches60DHA605636353443/4” NPT85DHA856435353861” NPT110DHA1108135354891” NPT130DHA1308335354961” NPT185DHA1855845415951-1/2” NPT210DHA2106245416211-1/2” NPT270DHA2707550417551-1/2” NPT360DHA3607850427852” NPT460DHA4606558421,0632-1/2” NPT560DHA5607358421,2752-1/2” NPT660DHA66010455511,4072-1/2” NPT800DHA80010655541,8732-1/2” NPT900DHA90011055512,0223” FLG1200DHA1,20011457542,5003” FLG1350DHA1,35011657722,7003” FLG1650DHA1,65011862773,2004” FLGEngineering DataPerformance...
