Technical Data Sheet

Product catalog summary

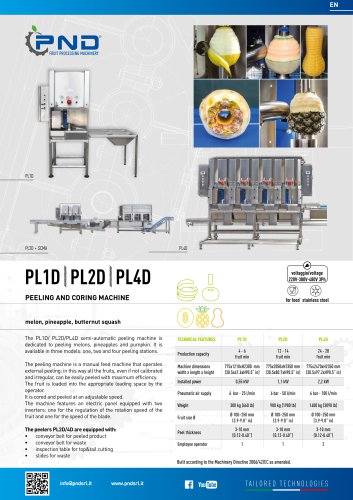

Overview: The document provides technical specifications and features of the semi-automatic peeling and coring machines designed for melons, pineapples, and butternut squash. The machines are available in three models: PL1D, PL2D, and PL4D, each with varying production capacities and features.

Specifications:

Production Capacity: PL1D: 4-6 fruits/min, PL2D: 12-14 fruits/min, PL4D: 24-28 fruits/min.
Dimensions: PL1D: 775x1210xH2300 mm, PL2D: 775x2050xH2350 mm, PL4D: 775x2470xH2350 mm.
Installed Power: PL1D: 0.55 kW, PL2D: 1.1 kW, PL4D: 2.2 kW.
Pneumatic Air Supply: 6 bar with varying l/min for each model.
Weight: PL1D: 300 kg, PL2D: 900 kg, PL4D: 1400 kg.
Fruit Size: Ø 100–250 mm.
Peel Thickness: 3-10 mm.
Operator Requirement: PL1D and PL2D require 1 operator, PL4D requires 2 operators.

Features:

Constructed from stainless steel and designed for food processing.
Operates on 220V-380V-480V 3Ph voltage.
Manual feed with external peeling capability for irregular fruits.
Equipped with an electric panel with two inverters for speed regulation.
PL2D and PL4D models include conveyor belts for peeled products and waste, an inspection table for top and tail cutting, and waste slides.

Compliance: Built according to the Machinery Directive 2006/42/EC as amended.

Catalog excerpts

EN The PL1D/ PL2D/PL4D semi-automatic peeling machine is dedicated to peeling melons, pineapples and pumpkin. It is available in three models: one, two and four peeling stations. The peeling machine is a manual feed machine that operates external peeling: in this way all the fruits, even if not calibrated and irregular, can be easily peeled with maximum efficiency. The fruit is loaded into the appropriate loading space by the operator. It is cored and peeled at an adjustable speed. The machine features an electric panel equipped with two inverters: one for the regulation of the rotation speed of the fruit and one for the speed of the blade. • conveyor belt for peeled product • conveyor belt for waste • inspection table for top&tail cutting [email protected] www.pndsrl.it TECHNICAL FEATURES Built according to the Machinery Directive 2006/42/EC as amended.

Open the catalog to page 1
