SL/PN automatic

Product catalog summary

Overview: The document describes the features and specifications of the ET 2000 control box and the SL/PN automatic labelling machine by PMR System group Srl. It highlights the capabilities, available models, and technical features of the labelling systems.

ET 2000 Control Box: This control box allows users to set start delays and signals for pre-end of labels. The digital version includes alarm signals and can store up to 100 different label size parameters.

Labelling Machine Features: The machine is designed for automatic labelling of non-moving flat products using a vacuum pad. It is available in bench/basic and in-line versions, with options for hot or dry overprinting units. The machine can handle both square and round labels by changing the suction pad.

Construction and Design: The machine features aluminium label-reel holding plates with a blocking eccentric hub, a chrome-plated steel support column with wheels for adjustment, and a pneumatic device for controlling the vacuum pad labelling unit.

Label Application: The machine can apply labels sized from 10 mm to 100 mm and is suitable for direct application on bristles enclosed in thermoformed packages.

Available Models: The document lists Economy and Classic models, with a version for vertical thermoforming also available.

Technical Features: The machine supports flat, round, and oval products, with a speed of 7 meters per minute. It has a stepper motor, and the label size ranges from 10x10 mm to 100x150 mm. The product size ranges from a minimum of 20 mm to a maximum of 120x300 mm for flat products and 100 mm in diameter for round products. The label roll sizes have a maximum external diameter of 350 mm and a minimum internal diameter of 40 mm. The machine operates on 230 V AC power and requires compressed air with a pneumatic press range of 2 to 6 Bar.

Accessories: Accessories include a support column, half column, extra pad, end of label sensor, optic acoustic alarm with lamp, and a 90° arm for frontal labelling.

Contact Information: PMR System group Srl is located at Via Bertacciola, 41, 20030 Bovisio Masciago (MI), with contact details provided for further inquiries.

Catalog excerpts

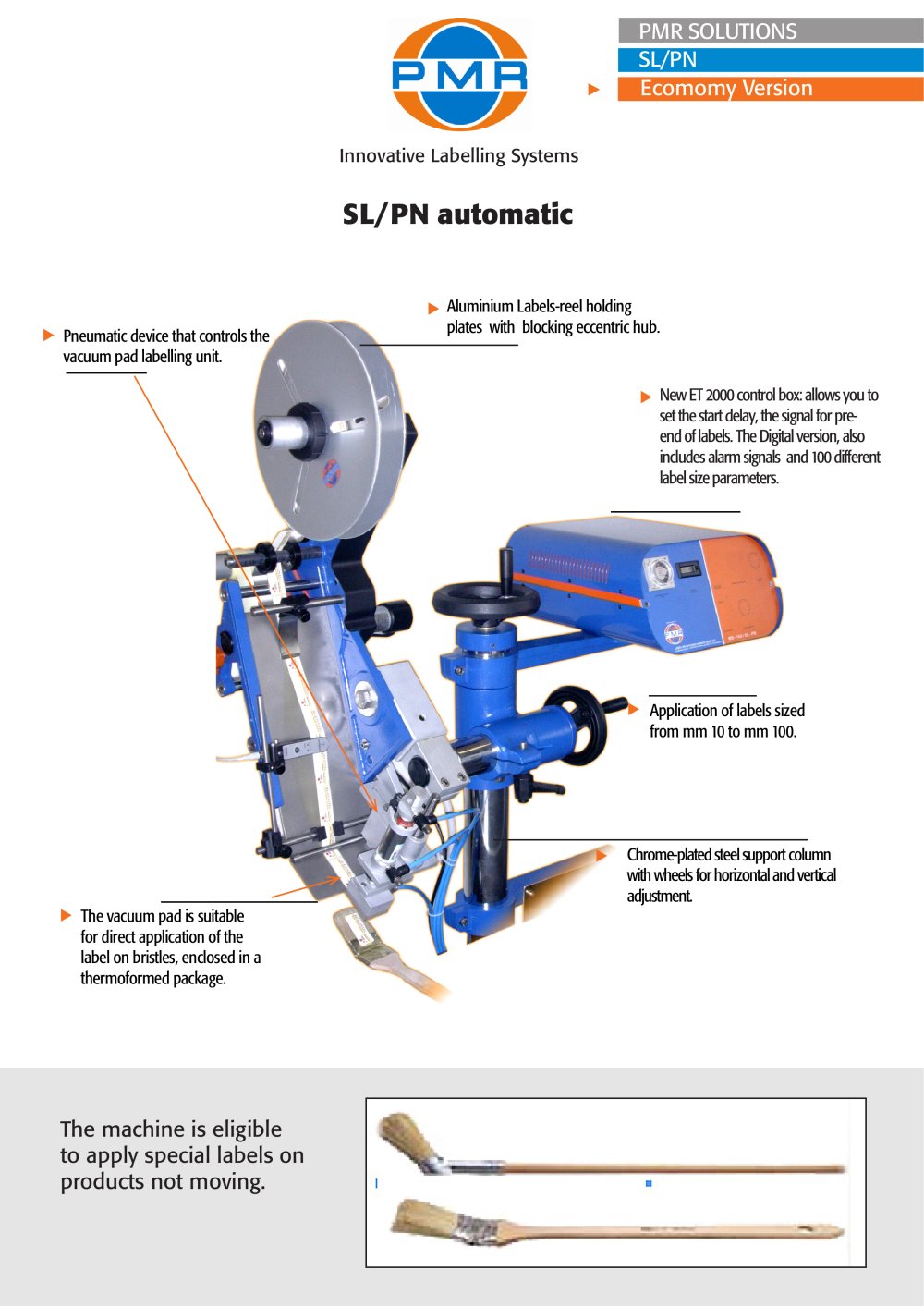

Aluminium Labels-reel holding plates with blocking eccentric hub. Pneumatic device that controls the vacuum pad labelling unit. New ET 2000 control box: allows you to set the start delay, the signal for pre- end of labels. The Digital version, also includes alarm signals and 100 different label size parameters. Application of labels sized from mm 10 to mm 100. Chrome-plated steel support column with wheels for horizontal and vertical adjustment. The vacuum pad is suitable for direct application of the label on bristles, enclosed in a thermoformed package. >

Open the catalog to page 1

Automatic labelling machine for labelling automatically non moving flat products by means of a vacuum pad. Available as bench/basic version (both cod.PN) (manual positioning of pro- ducts) and as in-line version (automatic step by step positioning of products) SL/PN labeller can be equipped with hot (cod.PNC) or dry (cod.PNS) overprinting unit to print up to 5 lines of alphanumerical data on labels. Simply by changing the suction pad, the machine can be used with both square and round labels. There is also a version for vertical thermoforming (cod. PNT). label (cod.PN2) > Support column (cod,COL)...

Open the catalog to page 2
