Print & Apply New Print 3

Print & Apply New Print 3

Print & Apply New Print 3

Product catalog summary
Overview: The document describes the features and specifications of the New Print 3, a semi-automatic labelling system designed for applying labels to various products, including food bags, envelopes, and non-homogeneous items.
Specifications:
  • Foam Roller: Utilizes a soft foam roller activated by an electro-magnet for label application.
  • Printer: Equipped with a thermal transfer printer featuring a stainless steel sleeve and a resolution of 203 dpi, capable of printing alphanumeric characters, symbols, and two-dimensional barcodes.
  • Base and Control: Solid PVC base with an electronic control box, polycarbonate console, red operating LEDs, and an on/off switch.
  • Dimensions: Machine dimensions are 2000 mm in length, 2450 mm in width, and 700 mm in height.
  • Power Supply: Operates on 230 V AC.
  • Label Reel Size: Maximum external diameter of 180/190 mm and minimum internal diameter of 40 mm.
Features:
  • Application: Suitable for labels with a maximum width of 110 mm, featuring a peeling blade with automatic rewind.
  • Photocell: Includes a photocell for reading both transparent and opaque products.
  • Movement: Aluminum and chrome hub ensures movement on three axes.
  • Printer Support: Blue-painted aluminum support for the modified TOSHIBA bsx4t printer with a front exit of 150 mm.
Product Compatibility: Designed for products with a minimum size of 20 x 20 mm and a maximum size of 120 x 300 mm.
Contact Information: PMR System group Srl, Via Bertacciola, 41, 20030 Bovisio Masciago (MI), Tel. +39 0362 594502, Fax +39 0362 594485, Email: [email protected], Website: www.pmr.it
Accessories: Offers integrated systems and solutions for labelling and marking since 1971.
See more

Catalog excerpts

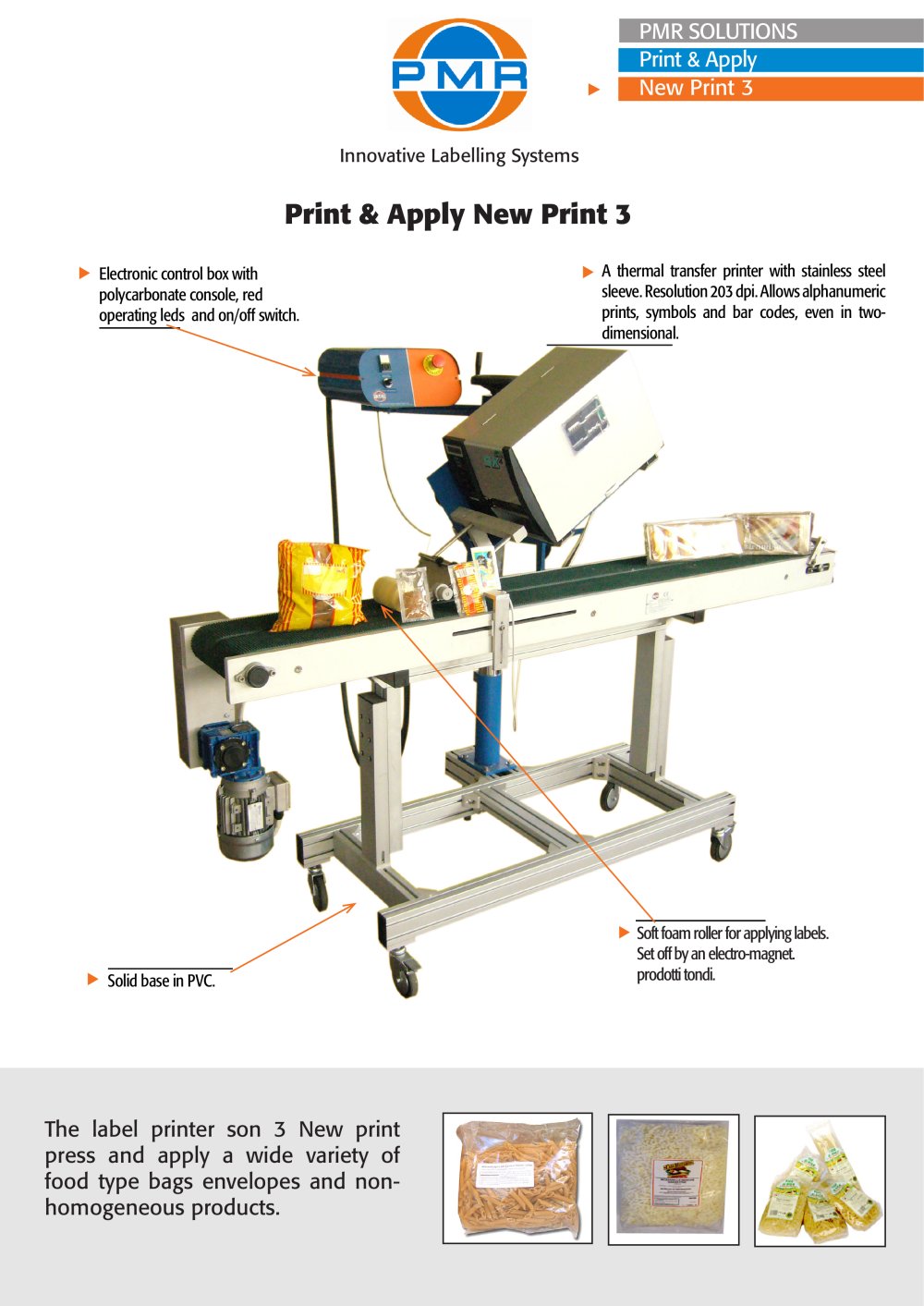

Print & Apply New Print 3-1

PMR SOLUTIONS Print & Apply New Print 3 > Innovative Labelling Systems Electronic control box with polycarbonate console, red operating leds and on/off switch. A thermal transfer printer with stainless steel sleeve. Resolution 203 dpi. Allows alphanumeric prints, symbols and bar codes, even in two- dimensional. Soft foam roller for applying labels. Set off by an electro-magnet. prodotti tondi. Solid base in PVC. The label printer son 3 New print press and apply a wide variety of food type bags envelopes and non- homogeneous products. >

 Open the catalog to page 1
Print & Apply New Print 3-2

Semiautomatic application for use of labels max width of 110 mm and peeling blade with automatic rewind. photocell made up for reading the tape product (products transparent and opaque) provided column in aluminum and chrome hub, capable of ensuring the movement on three axes. Support printer aluminum painted blue, printer TOSHIBA bsx4t modified front exit 150 mm resolution 203 dpi. > Product Type bags, envelopes, non-homogeneous proucts Machine sizes length mm 2000 x width mm 2450 x height mm 700Motor 230 V ac Print area width min X length min mm 20 x 20Product size * Min 20 x 20 Max 120 x 300...

 Open the catalog to page 2
