Label-counting system C500

Product catalog summary

Overview: The C500 is a label-counting system designed by Innovative Labelling Systems, part of the PMR System group. It is engineered to rewind labels onto cores with diameters ranging from 40 mm to 300 mm. The base model accommodates a width of 130 mm, while a special model supports up to 180 mm.

Specifications:

Motor Speed: 120 rpm
Power: 230 V AC
Speed: 15 meters per minute
Product Compatibility: Flat, round, and oval shapes

Features:

External switches for motor rotation direction
Digital piece counter for accurate label counting
Anodized aluminium reel holders for durability
Base constructed from painted cast aluminium

Models Available: The system is available in a base model and a special model, differing primarily in the maximum label width they can handle.

Applications: The C500 is versatile, supporting a broad range of label applications up to 150 mm. It can be equipped with a photocell or microswitch and supports overprinting with dry or hot methods.

Contact Information: PMR System group Srl, Via Bertacciola, 41, 20030 Bovisio Masciago (MI), Tel. +39 0362 594502, Fax +39 0362 594485, Email: [email protected], Website: www.pmr.it

Catalog excerpts

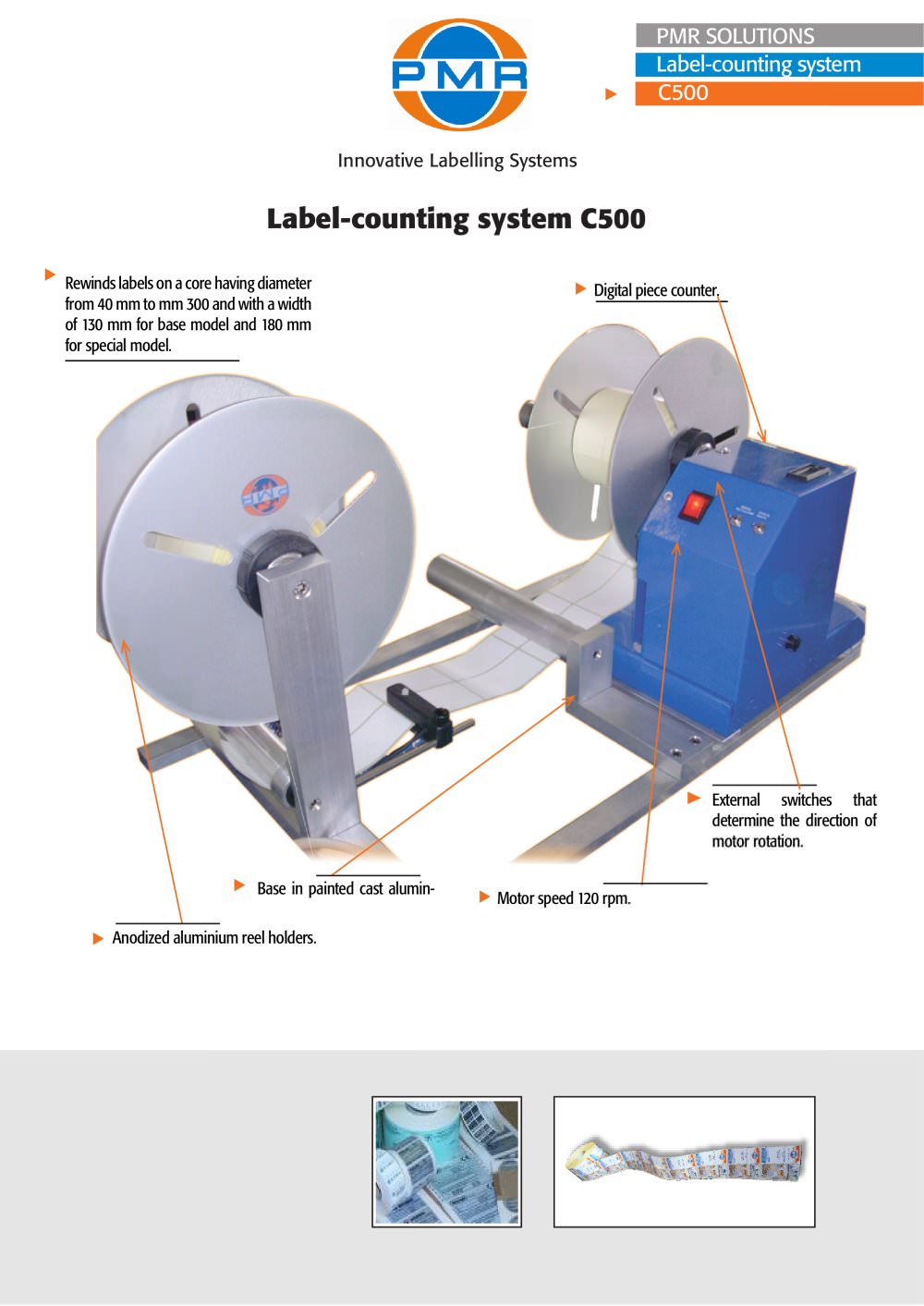

Rewinds labels on a core having diameter from 40 mm to mm 300 and with a width of 130 mm for base model and 180 mm for special model. Digital piece counter. External switches that determine the direction of motor rotation. Base in painted cast alumin- Motor speed 120 rpm. Anodized aluminium reel holders. >

Open the catalog to page 1

Use simple and universal s broad application of labels up to 150 mm with automatic spellicolatura. It can mount photocell or microswitch and groups of overprinting dry or hot. > Product shape flat, round and ovalSpeed 15 mt/min Power 230 V AC > PMR System group Srl Via Bertacciola, 4120030 Bovisio Masciago (MI)Tel. +39 0362 594502 Fax +39 0362 [email protected] >

Open the catalog to page 2
