Overview: The EAM LED Chain Catalogue 2008 provides details on LED modules designed for backlighting and signage applications. It highlights the use of efficient LED emitters and offers both standard and custom design options.

Features:

Wide range of sizes and colors
Various circuit configurations
Secondary optics and heat sinks
Optimized for color consistency and intensity
Easy integration

Specifications:

Operating Voltage: 12V DC
Viewing Angle: 120 degrees
Storage Temperature: -40 to +100°C
Operating Temperature: -30 to +85°C
Continuous Forward Current: 0.18 A/m
Power Dissipation: 2.2 W/m

Electro-optical Characteristics:

White: CCx=0.31, y=0.32, Luminous Intensity: 1.4 cd
Yellow: Wavelength: 587 nm, Luminous Intensity: 1 cd
Green: Wavelength: 528 nm, Luminous Intensity: 1 cd
Blue: Wavelength: 467 nm, Luminous Intensity: 0.2 cd
Red: Wavelength: 624 nm, Luminous Intensity: 1 cd

Product Variants:

PA1510-1SC41-85-12vdc: 15mm LED Chain, 10 chains/m, 80mm intervals
PA5012-2SC41-70-12vdc: 50mm LED Chain, 9 chains/m, 70mm intervals
PA4510-3SC41-70-12vdc: 45mm LED Chain, 9 chains/m, 70mm intervals
PA5610-4SC41-70-12vdc: 56mm LED Chain, 8 chains/m, 70mm intervals
PA2713-6SL3020-84-12vdc: 27mm LED Chain, requires constant current driver
PA3314-LGXRGB: 33mm High Power RGB LED Chain, 200mm wire links
PA2515-2NSSW-100-12vdc: 25mm LED Chain, 100mm wire links
PA50x16-3SW100-12vdc: 50mm LED Chain, 100mm wire links

Additional Notes:

Reel quantity: 50 metres
Adhesive backing for easy fixing
Specifications may change without notice
Contact office for latest intensity yields and custom options

Catalog excerpts

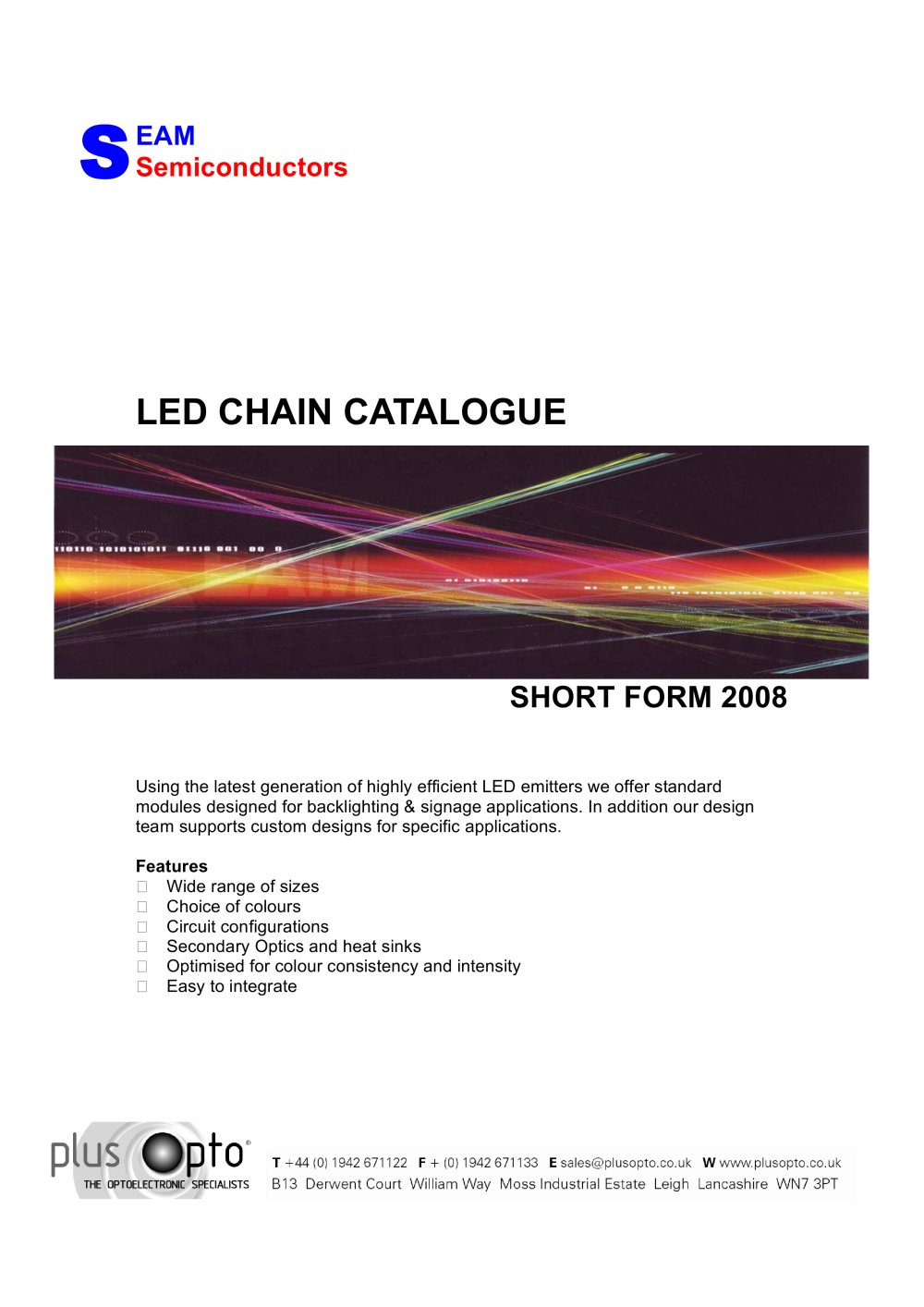

Using the latest generation of highly efficient LED emitters we offer standard modules designed for backlighting & signage applications. In addition our design team supports custom designs for specific applications. Features Wide range of sizes Choice of colours Circuit configurations Secondary Optics and heat sinks Optimised for colour consistency and intensity Easy to integrate >

Open the catalog to page 1

C) r y mbolParamete MinTest ConditionRadiation ColorPrefixS yp UnitMaxT DnmWavelengthIf= 20mAYellowPY2713If= 20mARedPR27136If= 20mAWarm WhitePX27139If= 20mACool WhitePW2713If= 20mAGreenPT2713cdIf= 20mABluePB2713IvLuminous Intensityper boardV12If= 20mAAll ColoursVdcOperating Voltage 2 1/2 (deg)Viewing Angle590If= 20mAYellowPY2713630If= 20mARedPR2713X=0.38, y=0.44If= 20mAWarm WhitePX2713X=0.26, y=0.31If= 20mACool WhitePW2713525If= 20mAGreenPT2713nm470If= 20mABluePB2713 Please contact our office for the latest bin intensity yieldsWire lead length & termination can be specifiedOther sizes, colour/voltage...

Open the catalog to page 6
