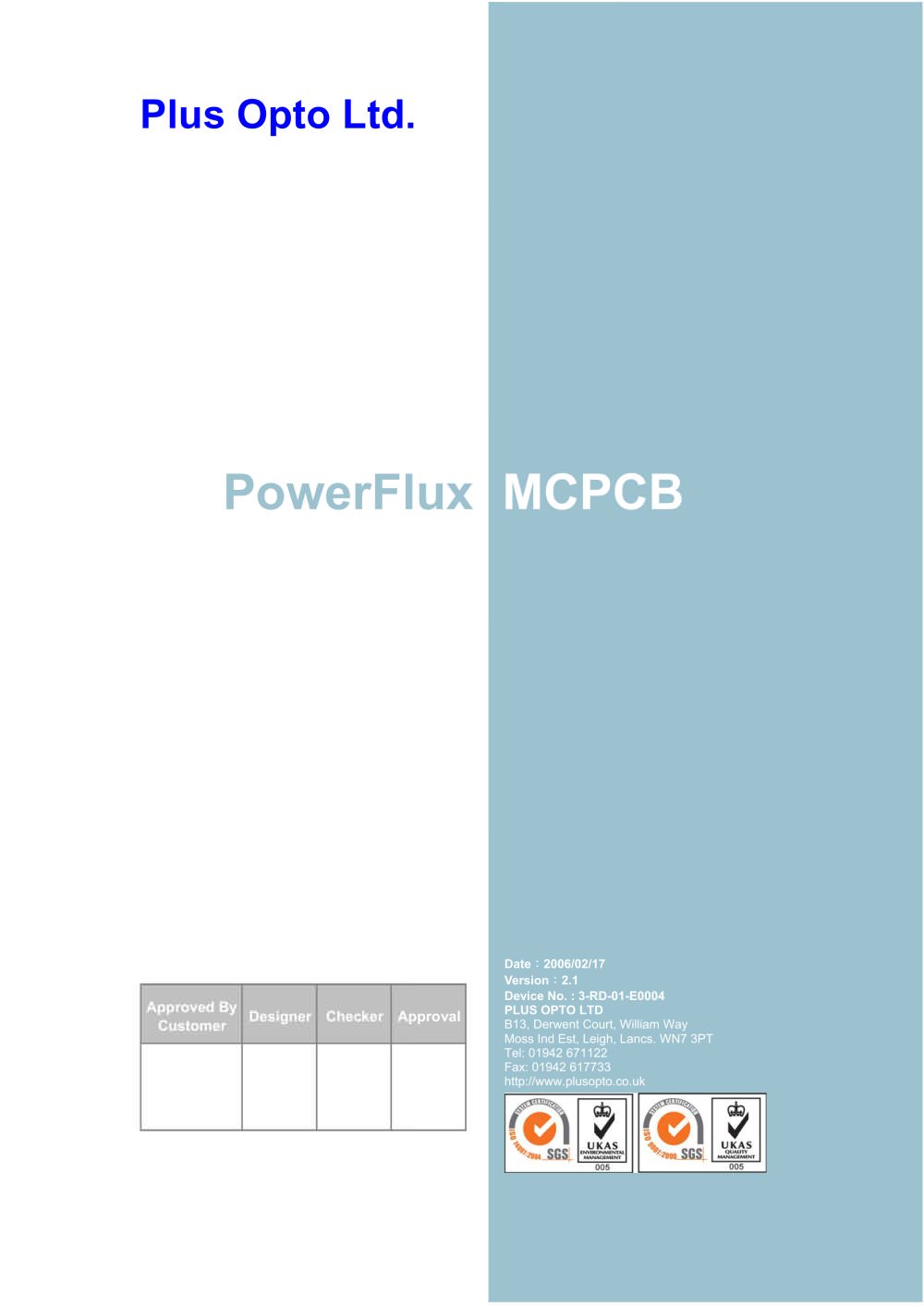

Overview: This document provides technical specifications and guidelines for the PowerFlux MCPCB by Plus Opto Ltd. It includes package outlines, electrical characteristics, and thermal management recommendations for various semiconductor models.

Package Outlines: The document lists several semiconductor models with their respective package outlines. All dimensions are provided in millimeters, and it is noted that drawings are not to scale. A critical recommendation is that the lead temperature should not exceed 60°C.

Electrical Characteristics: The document details the forward current characteristics at a junction temperature of 25°C for different models and colors. It specifies the typical total flux in lumens and the forward voltage range for colors such as Red, True Green, and Blue at a current of 350mA.

Color and CCT Characteristics: The document provides typical total flux and correlated color temperature (CCT) for various colors at a junction temperature of 25°C. It includes data for White, Warm White, Red, Red Orange, Amber, True Green, and Blue across different models.

Thermal Characteristics: The thermal characteristics section outlines the dimensions of various modules and their corresponding forward voltage and temperature after 20 minutes of operation. It emphasizes the importance of maintaining the MCPCB temperature below 60°C for reliable operation and lumen maintenance.

Recommendations: Proper thermal management is crucial, and secondary heatsinking should be closely matched with the MCPCB to ensure optimal performance. Specifications are subject to change for improvement without prior notice.
