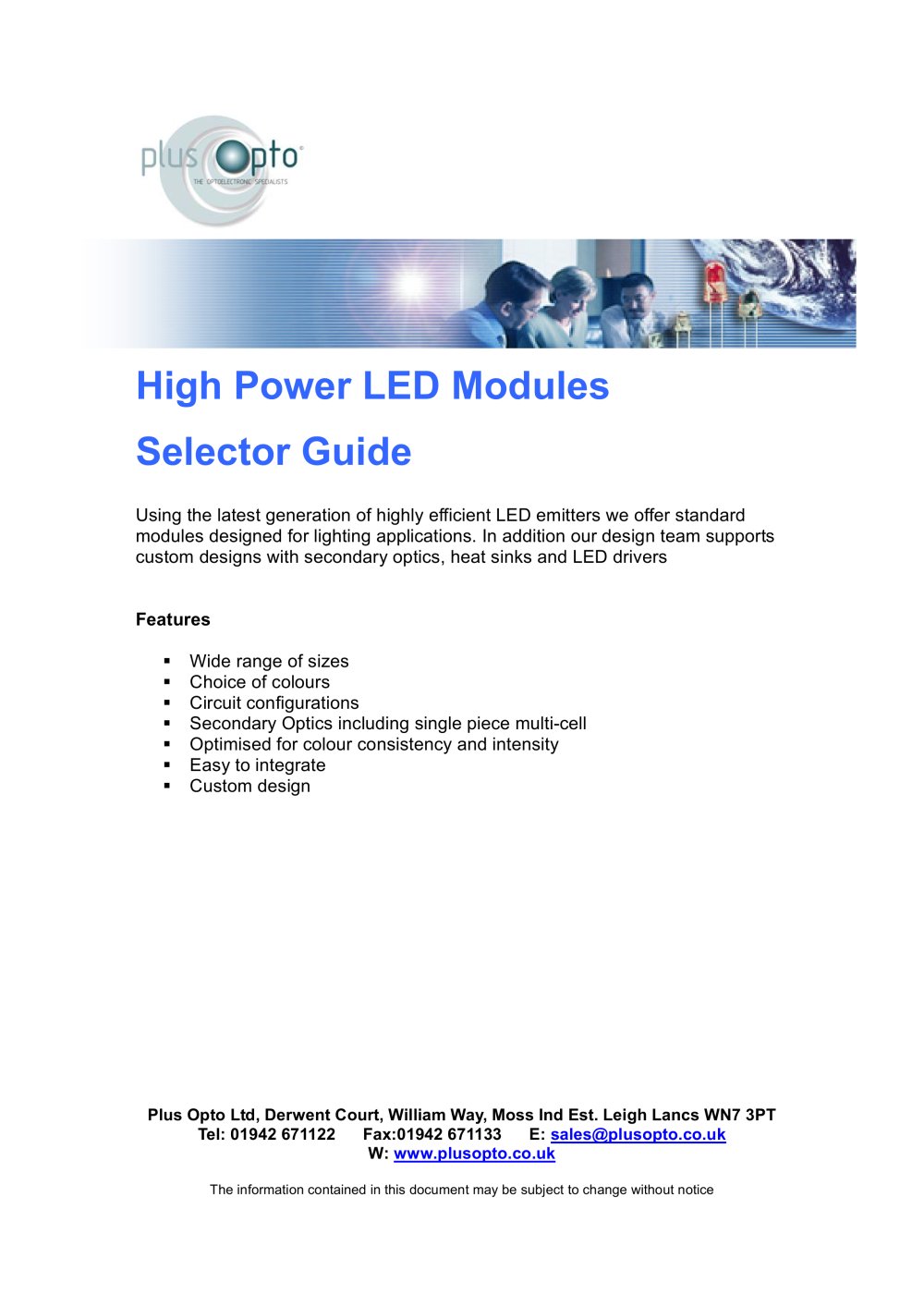

High Power LED Modules Selector Guide

Introduction: This document provides a guide to the high power LED modules offered by Plus Opto Ltd, featuring the latest generation of efficient LED emitters. The modules are designed for various lighting applications and can be customized with secondary optics, heat sinks, and LED drivers.

Features:

Wide range of sizes and colors
Various circuit configurations
Secondary optics including single piece multi-cell
Optimized for color consistency and intensity
Easy integration and custom design options

Module Types:

Circular Modules: Available in various diameters with different emitter configurations, including RGB options.
Square Modules: Offered in a 50x50 mm size with 4 emitters in series.
Linear Modules: Available in multiple dimensions with configurations ranging from 3 to 12 emitters in series or parallel.

Outline Dimensions: The document includes detailed outline dimensions for each module type, ensuring proper integration into lighting systems.

Contact Information: Plus Opto Ltd can be contacted via phone, fax, or email for further inquiries or custom design support.
