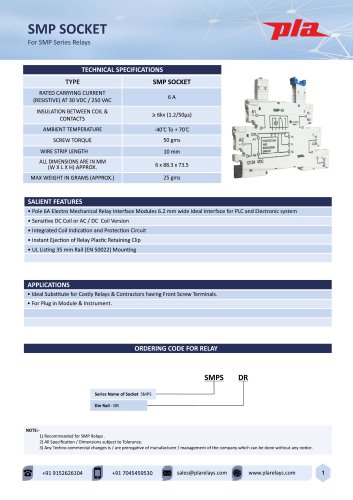

TECHNICAL SPECIFICATIONS SALIENT FEATURES • Pole 6A Electro Mechanical Relay Interface Modules 6.2 mm wide Ideal Interface for PLC and Electronic system • Sensitive DC Coil or AC / DC Coil Version • Integrated Coil Indication and Protection Circuit • Instant Ejection of Relay Plastic Retaining Clip • UL Listing 35 mm Rail (EN 50022) Mounting ORDERING CODE FOR RELAY SMPS Series Name of Socket SMPS Din Rail - DR — 2) All Specification / Dimensions subject to Tolerance. 3) Any Techno commercial changes is / are prerogative of manufacturer / management of the company which can be done without any notice.

CONNECTION DIAGRAM DIMENSIONS TYPE : SMPS COIL INDICATION CIRCUIT SMP NOTE 1) In case no tolerance shown In outline dimensions : Outline dimension 1mm, tolerance should be ±0.2mm Outline dimension 1mm and 5mm, tolerance should be ±0.3mm Outline dimension 5mm tolerance should be±0.4mm 2) The tolerance without indicating for PCB layout is always ±0.2mm
