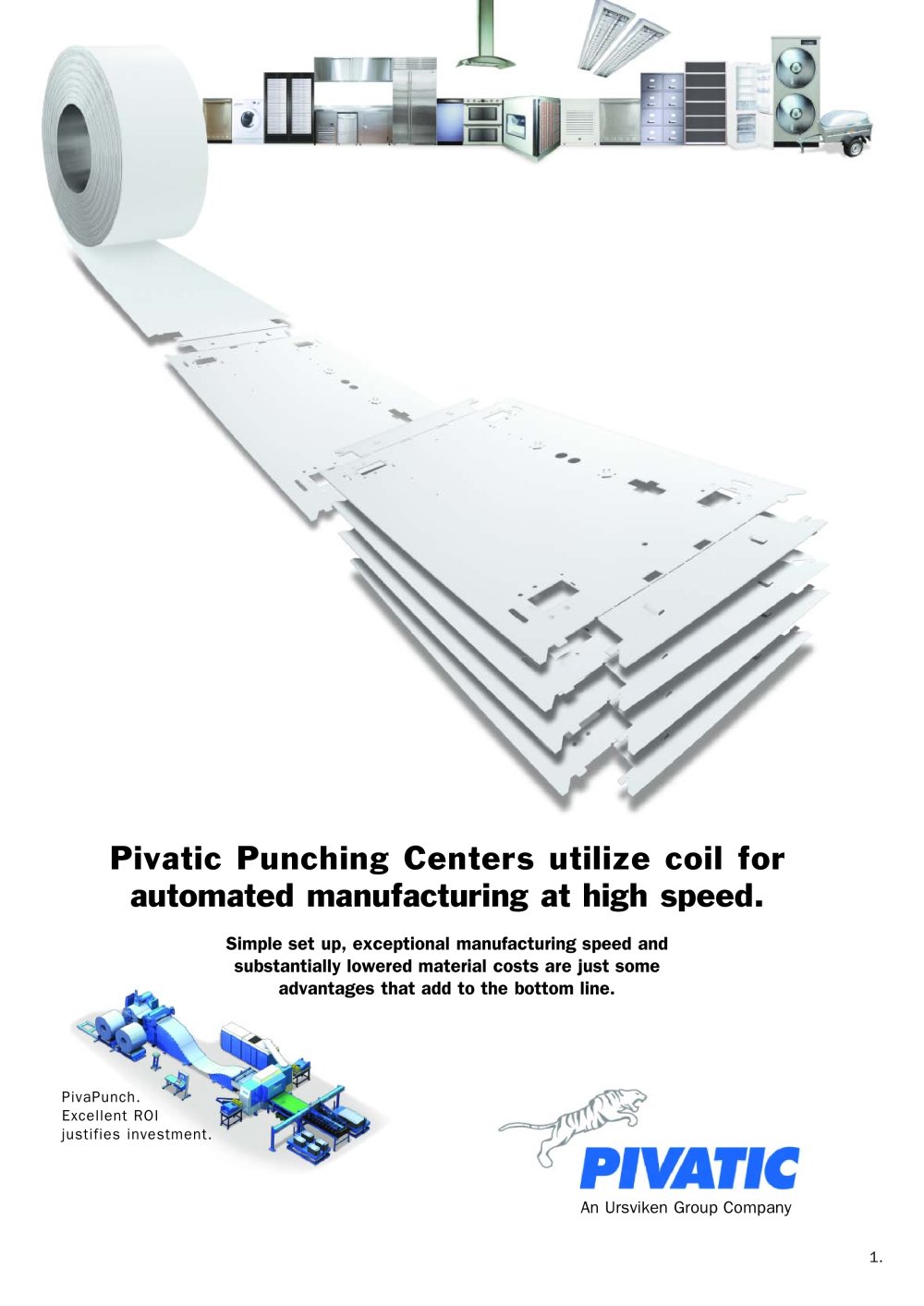

PivaPunch. Excellent ROI justifies investment. >

Pivatic Solution Productivity PivaPunch increases productivity more thanany other punching method. > Standard ThickTurret Tools set in Quick-Change Tool Cassettes. Parts, including holes,embossing, lances, louvers and press tool operations made to order in a single pass. Far better cycletimes than any other punch press. The width of the partequals the coil width or the coil trimming.Consistent partquality thanks to automated processes. Available in the configuration YOU need. Part programming straight from CAD files.Parts nestedacross the coil width. Lower material costs:ҕLower initial cost and...

Office Furniture, Heating & Ventilation, Air Conditioning, Domestic Appliances, Shelving, Lighting Fixtures, Electronics, Vehicle, Accessories, Telecommunications, Subcontracting, Enclosures > Efficiency Flexibility flexible than other punch methodsbecause it uses an advanced and freely programmable CNC coil punch system. 100% of time is actual punching ՕNo tool change time - all tools active Double Tool Punch Feature, two holes or corners of a symmetrical pattern punched at the same time ՕStrip fed from hit-to-hit non-stop No loading time with continuous coil feeding ՕStacking of punched blanks...

Rather than being built to rotate and move great distances between each punch, the tool cassettes are built to move as little as possible. It moves only in the Y-axis over the sheet metal. The sheet metal, in its turn, movesonly in the x-axis. Punchingstations come standard with two tool cassettes, one on each side of the sheet. This simple design makes it possible to work several times faster than any other system. > Punching power is transmitted from the ram plate through striker pinsdriven by tool selectors to a tool in each tool cassette consecutively or at the same time when punching symmetrical...

Greater number of toolsՕ Tools of different sizes Fixed tools Օ Auto-indexed tools > The tool cassettes come in a variety ofconfigurations making PivaPunch versatile and efficient for both simple and complex projects. As we proceed, you can see the most common tool cassette configurations. > Tool Cassette TT is configuredfor 26 fixed tools: 12 A, 6 B, 4 C, 2 D and 2 E stationsTool Cassette TTi is configuredfor 18 fixed tools and 1 auto- indexing tool: 10 A, 4 B, 2 C, 1 D and 1 E fixed stations and 1 indexing D station. The configuration of the tool cassettes determines what kind of tools the...

Corner notching, standard hole patterns Օ Trimming of strip to run more from the same coil Slitting of parts nested beside each other PivaPunch up-stroking tool stations allow for embossing without causing any damage to the surface of the part.Between hits, the embossingtool lays below the surface. Tool cassette TTii is configuredfor 18 fixed tools and 2 auto- indexing tools: 10 A, 4B, 2C, 1D and 1E fixed and 1 indexing B and C station. Tool cassette LTD including 1 F-station tool and 1 dedicated tool up to 200*225 mm (7.87*8.85Ք), gap 225 mm (8.85).Tool cassette LTT for versatilejobs including...

CNC punched parts, hole groups, embossings, slittingand trimmingՕCNC Coil Punch also for large tools up to 6 diameter ԕThick Turret type and dedicated tooling for trimmingand notching CNC punched parts, perforation, large cut-outs & forms Օ CNC coil punch and press tool capabilities Cycle times affected by tooling selection 8. >

TypeStrip WidthSheetPunching StationsStacker Thickness AvailableTrim &Standard Blankmm Inches mm inches Type TT Type TTi Type LT Type HT Notch Lengthsmm inches PCC60 60610 mm 2.36Ņ24 inches 0,52 .019Ņ .078 One Tool Cassettes One Tool Cassettes 2250, 3000, 5000 mm 89,118,197 inches 0,55 .019Ņ .196 One Tool Cassettes One Tool Cassettes 2250, 3000, 5000 mm 89,118,197 inches PCC60 60610 mm 2.36Ņ24 inches 0,52 .019Ņ .078 Two Tool Cassettes Two Tool Cassettes X X X2250, 3000, 5000 mm 89,118,197 inches 0,55 .019Ņ .196 Two Tool Cassettes Two Tool Cassettes X X2250, 3000, 5000 mm 89,118,197 inches PCC80...

Pivatic֒s software is developedin cooperation with the hardware to optimize efficiency. Pivatics software is supported globally. 10. Punching stations areselected according to cycle time requirements. PivaPunch can be equipped with completematerial handling systems for feeding of coils and with stacking options for punched blanks. Two coil cars make it possible to change coils in minimal time. Use a multi station coil storage with coil cars when longer independentproduction comes to play. >

Blanks are piled on one or several lifting tables using the pick& place stacker. The entire area of the pallets can be utilized for stacking in several piles. Trim and Notch Station adds flexibility andproduction speed. Part families with different widths run from thesame coil ՕReduces the number of different coils and set-ups. Rectangular corners and cut-outs on the edges that are CNC punched ՕCycle times are reduced since Trim & Notch after Cutting-to-Length is a separate operation. > An Ursviken Group Company 11. >
