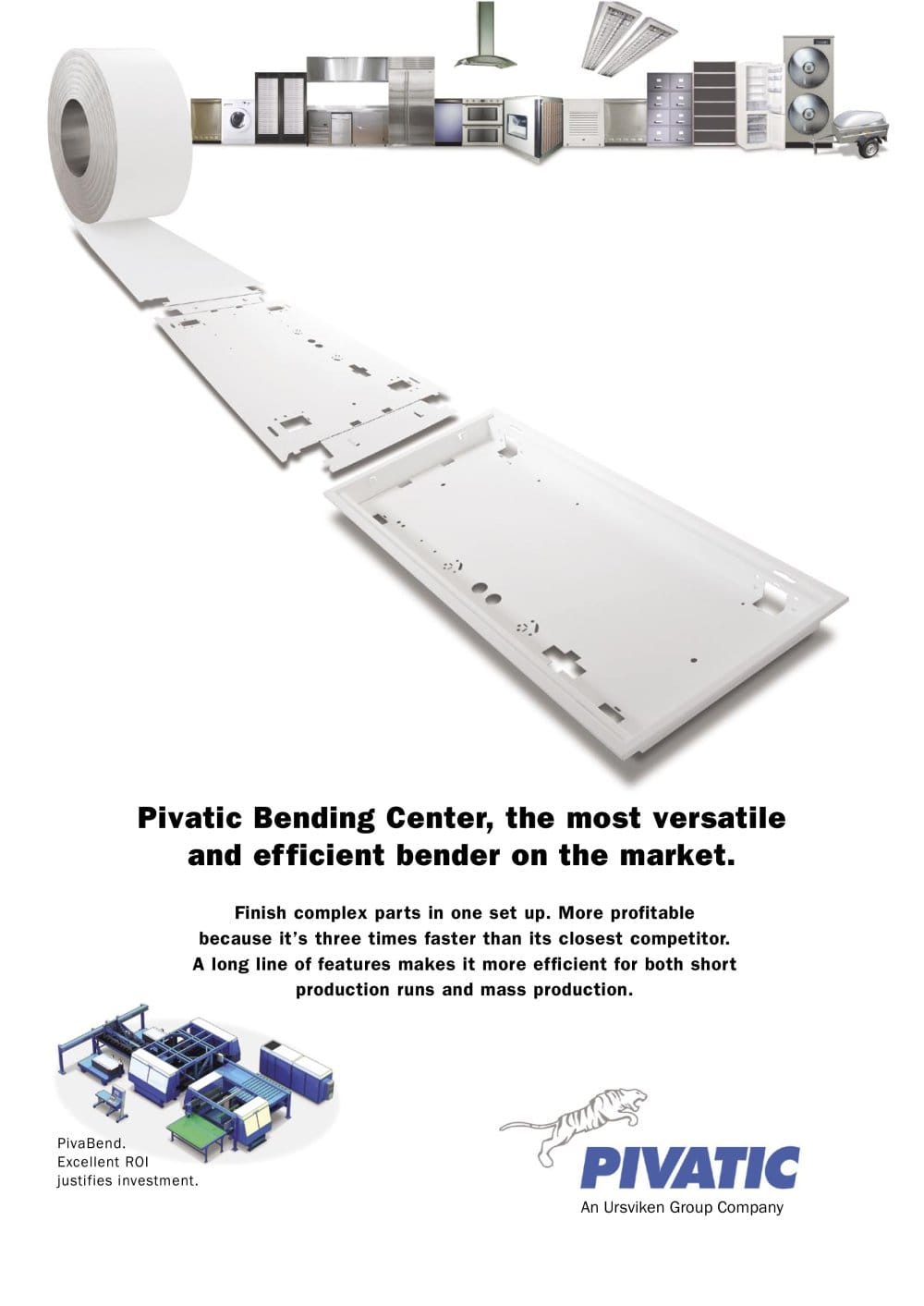

Pivatic Bending Center, the most versatile and efficient bender on the market. Finish complex parts in one set up. More profitable because it’s three times faster than its closest competitor. A long line of features makes it more efficient for both short production runs and mass production. PivaBend. Excellent ROI justifies investment. An Ursviken Group Company
Open the catalog to page 1PivaBend is made for today's more demanding manufacturing needs. Smaller manufactures will find it useful to be able to run smaller product series back-to-back fully automatically. Larger PivaBend creates a leap in productivity for both small and large manufacturers. manufacturers will find that PivaBend’s better cycle times produce like no other equipment. PivaBend is non-operator dependent, making it possible to run many different smaller projects 24/7. uction Sheet Prod nal Metal Traditio Time PivaBend increases productivity more than any other traditional manufacturing method. A long...
Open the catalog to page 2PivaBend is more efficient and more flexible than other competitive technology. PivaBend is more efficient than other sheet metal forming methods because PivaBend uses one bending machine for each edge of the component and can run unattended. It’s more flexible because angles, dimensions and sequences are all programmable. PivaBend is possible to integrate into additional processes such as punching (PivaPunch) straight from coil or roll forming equipment. Industries that use PivaBend Of fice Furniture Heating & Ventilation Air Conditioning Domestic Appliances Shelving Lighting Fixtures...
Open the catalog to page 3The bending methods and the modular line concept make PivaBend suitable for many different applications. The types of bending methods utilized by PivaBend are suitable for use with materials with sensitive surfaces like pre-painted steel and aluminum. The material moves between stations and are clamped and folded without being scratched or dented. The material is firmly clamped into place and cannot move during the bending process while the folding tools follow the material without moving over the surface. This ensures a continuous production and no costly scratches or rejects. The PivaBend...
Open the catalog to page 4Technical Specifications Sections Return Flange Return Flange on sides/ends mm The maximum height of bends is 120 mm. When corner tools are used maximum height is up to 80 mm. Return Flange on ends mm Other specifications on request. An Ursviken Group Company
Open the catalog to page 5PivaBend Bending Stations Pivatic offers a line of panel bender stations. Each station is different and performs a specific number of tasks. The stations are made as modules and can be combined into more complex manufacturing centers. This spread describes the functions and advantages of PivaBend FLN, PivaBend FLW, PivaBend FSW, PivaBend FSO. PivaBend Centers for Sections PivaBend FLN for sections. PivaBend FLN consists of two stationary bending machines. It has CNC feeders for transporting and positioning of the work piece. This layout allows two blanks to be bent at the same time. To...
Open the catalog to page 6PivaBend Centers for Panels * 24 sec. PivaBend FSW for Panels The integration of the basic station with the FSW station results in extremely short cycle times because practically all 4 sides are bent at the same time. Profiles of all sides are freely programmable. Different parts can be run in batches and in sequence on a made-to-order basis. The only set up: Hold Down Tools are changed in a couple of minutes without any hand tools thanks to the clamping system. Hold Down Tool set up for different part widths: 1. The Standard solution - Hold Down Tools are changed in a couple of minutes...
Open the catalog to page 7PivaBend Centers for Wrappers & Panels * 24 sec. PivaBend FSO for Wrappers and Panels PivaBend for Wrappers and Casings combines the Bending stations for sides and ends with a wrapper and casing bending unit (FSO). The PivaBend Center can then produce wrapper and casing type products as well as sections and panels. The FSO station can be fully integrated with material handling equipment or be off-set for manual operation. PivaBend for Wrappers and Casings is highly versatile. All side dimensions, hemmings and positive & negative angles are fully programmable. The production of the sides and...
Open the catalog to page 8PivaBend Centers for Wrappers & Panels * 24 sec. PivaBend for Panels and Casing PivaBend for Panels and Casing is equipped with the wrapper forming unit FSO for the ends and for the U-bends. All side dimensions and angles are freely programmable. Ends are only upwards similar to the final U-bends. PivaBend Center for Wall Panels PivaBend Center for Wall Panels PivaBend Center for Wall Panels and similar products whose length remains the same but the width changes. The ends are therefore bent first upwards. * Times are based on FLN225/FSW125 model machine ** Times are based on FST125/FLN300...
Open the catalog to page 9PivaBend Stations are Modular Units that The PivaSystem can be set up as Parts run straight from Panel Bender FSL PivaBend FSL Panel Bender consists of two parallel Benders, Automatic Tool Changer and an industrial robot for material handling. The bending machines traverse on precision guides and bend the two sides at the same time. Benefits: • Short cycle times thanks to two bending machines. • The opposite sides are parallel to each other. • Can also be integrated to a PivaPunch Center. An Ursviken Group Company
Open the catalog to page 10Efficient stacking and destacking equipment enables manufacturing from the coil and from pallets. Clinching and spot weld operations are done in-line prior to box bending to make parts complete in a single pass. Connection to a sheet storage for increased possibilities. Pivatic offers unique solutions that complete parts after bending including spot weld and clinching operations.
Open the catalog to page 11Ursviken Group empowers productivity in sheet metal fabrication. The Ursviken Group is a global provider of high-end solutions for sheet metal manufacturers. We base our service and solutions on more than 100 years of being on the forefront of the metal forming industry. Our solutions are at the top of today's industry and give our customers a leap in productivity that leads to a healthy return on their investments. The Ursviken Group consists of two leading companies, Pivatic Oy and Ursviken Technology AB. The Finnish company Pivatic is a pioneer in manufacturing solutions based on coil....
