Product catalog summary
Overview: The document provides technical specifications and details for Pipestoppers™, a range of pipe sealing products offered by Huntingdon Fusion Techniques Limited. These products are designed for pressure testing and stopping pipework from 50 mm (2") upwards.
Product Range: The Pipestoppers™ range includes nylon expanding plugs, aluminium plugs, steel drain plugs, inflatable stoppers, and double steel plugs. Double steel plugs are highlighted for their increased stability and higher pressure capabilities compared to single plugs.
Specifications: Double steel plugs are available with 1/2", 1", and 2" outlets. Standard seals are made from natural rubber, with options for special rubber seals for enhanced chemical resistance and higher temperature applications. All plugs conform to British Standards BS 8005 for low-pressure testing and sealing of pipes.
Technical Information: The document includes a detailed chart of available sizes and pressure capabilities for both solid and hollow shaft plugs. Sizes range from 1/2 inch to 6 inches in diameter, with varying pressure ratings depending on the plug type and size.
Applications: These products are suitable for use in repairs, maintenance, and new sections of pipework, especially where access is limited. They are effective for debris stopping and preventing the ingress of foreign bodies.
Additional Information: The document notes that results depend on factors such as the exact internal diameter of the pipe, number of turns, condition of the pipe interior, and material. It also mentions that modifications to products may occur without prior notice.
See more

Catalog excerpts

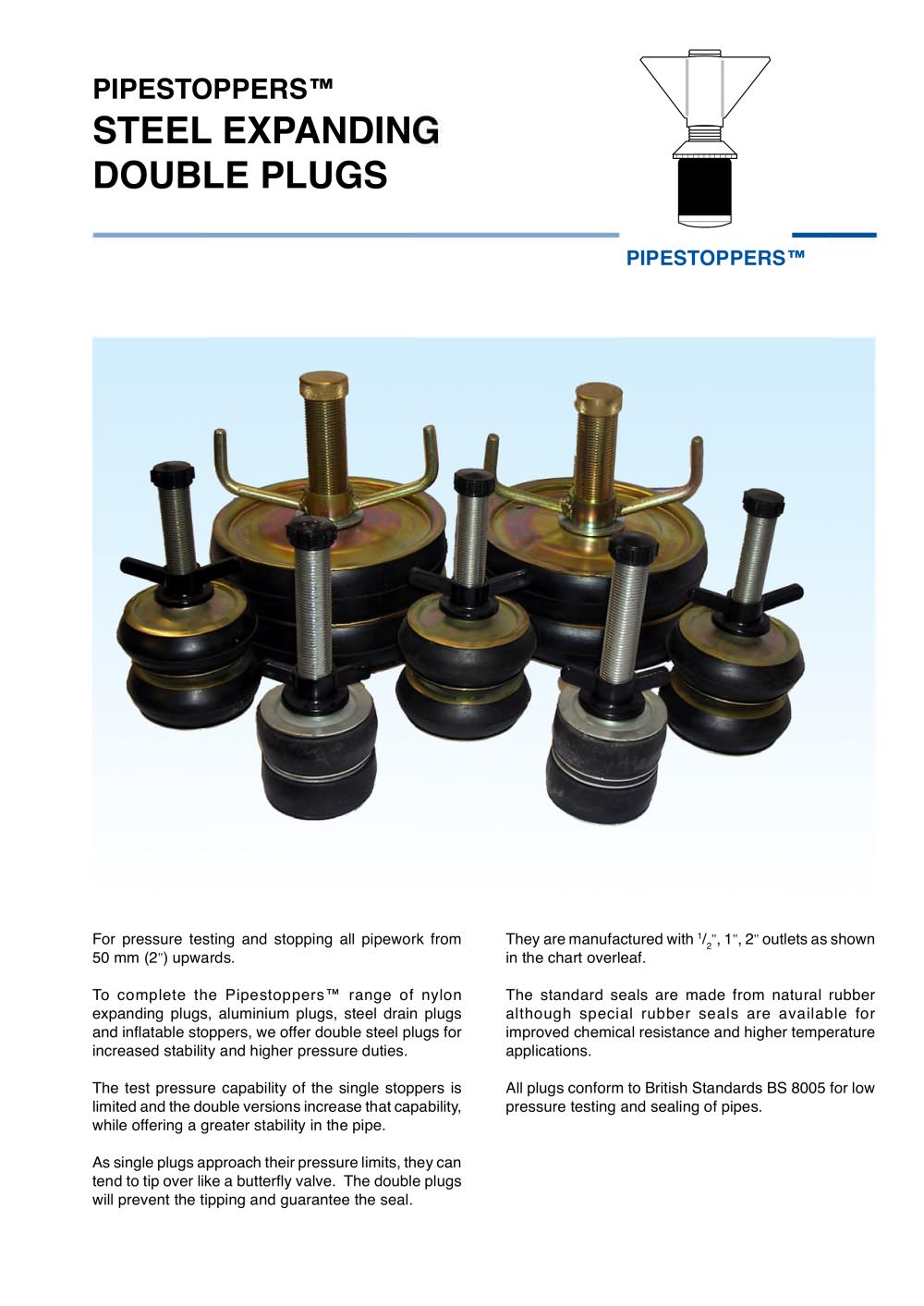

Steel Expanding Double Plugs-1

For pressure testing and stopping all pipework from 50 mm (2 They are manufactured with > 1 / > 2 " , 1 > " , 2 > " outlets as shown in the chart overleaf.The standard seals are made from natural rubber although special rubber seals are available for improved chemical resistance and higher temperature applications.All plugs conform to British Standards BS 8005 for low pressure testing and sealing of pipes. > " ) upwards. To complete the Pipestoppers range of nylon expanding plugs, aluminium plugs, steel drain plugs and inflatable stoppers, we offer double steel plugs for increased stability and higher pressure duties. The test pressure capability of the single stoppers is limited and the double versions increase that capability, while offering a greater stability in the pipe.As single plugs approach their pressure limits, they can tend to tip over like a butterfly valve. The double plugs will prevent the tipping and guarantee the seal. >
