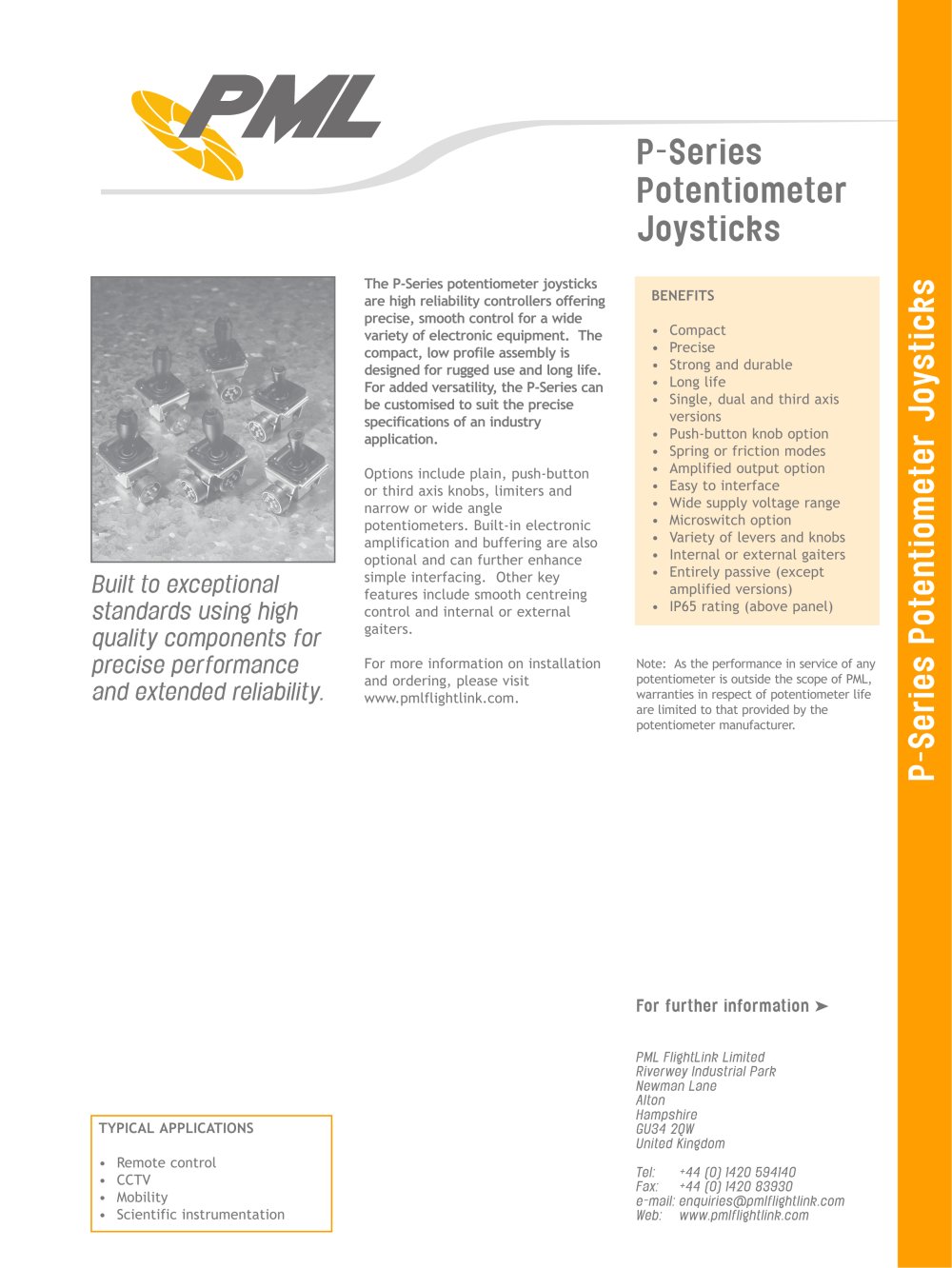

P-Series Potentiometer Joysticks Overview
The P-Series potentiometer joysticks are designed for high reliability and precise control across various electronic equipment. These joysticks are compact, durable, and customizable to meet specific industry needs. They offer options such as plain, push-button, or third axis knobs, and can include built-in electronic amplification for enhanced interfacing.
The P-Series potentiometer joysticks are designed for high reliability and precise control across various electronic equipment. These joysticks are compact, durable, and customizable to meet specific industry needs. They offer options such as plain, push-button, or third axis knobs, and can include built-in electronic amplification for enhanced interfacing.
Key Benefits
- Compact and precise design
- Durable with a long lifespan
- Available in single, dual, and third axis versions
- Push-button knob and amplified output options
- Easy interfacing with a wide supply voltage range
- IP65 rating for protection above the panel
Specifications
- Track Value: 10k, 5k with +/- 20% tolerance
- Track Angle: 300º standard, 60º optional
- Power Rating: 1.0 Watt at 70ºC, de-rating to 0 at 125º
- Insulation Resistance: >1000 Megaohms at 500Vcc
- Dielectric Strength: 1000V RMS at 50 Hz
- Linearity: ±2%
- Materials: Frame made of mild steel, levers of stainless steel, and moldings of nylon
Mechanical Specifications
- Types: Sprung to centre, sprung to end, friction, ball detent
- Spring Torque: Weak 0.7 kgcm, Standard 1.0 kgcm, Heavy 1.7 kgcm
- Wiring Information: Includes details for X, Y, and Z axes, and push-button connections
Applications
- Remote control systems
- CCTV
- Mobility devices
- Scientific instrumentation
For more detailed information and specific application requirements, visit the PML FlightLink website.
