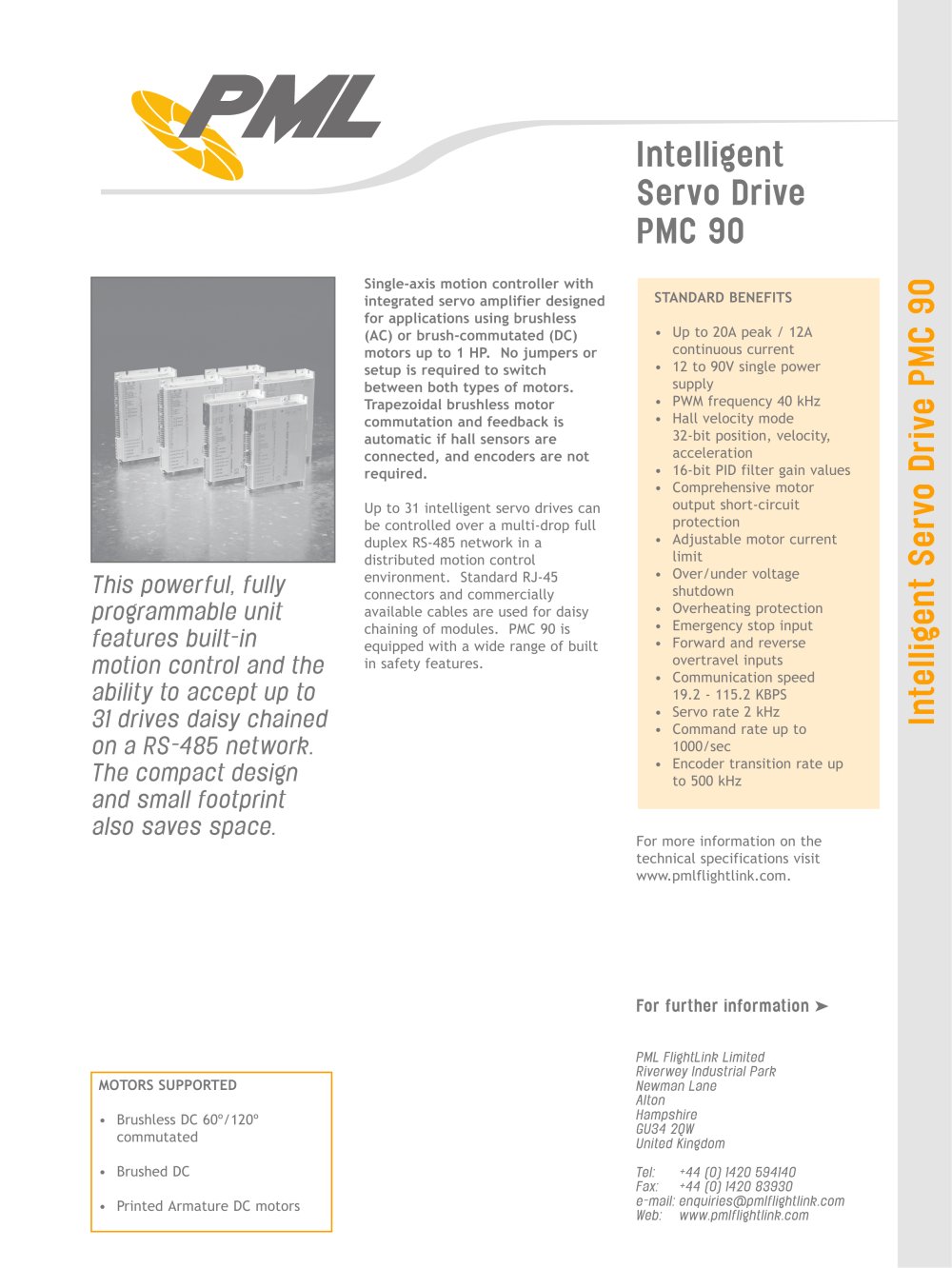

Overview: The Intelligent Servo Drive PMC 90 is a single-axis motion controller with an integrated servo amplifier, designed for applications using both brushless (AC) and brush-commutated (DC) motors up to 1 HP. It features a compact design, allowing for space-saving installations.
Specifications:
- Supports up to 31 drives daisy-chained on an RS-485 network.
- Automatic trapezoidal brushless motor commutation with hall sensors; encoders are not required.
- Current capacity: Up to 20A peak / 12A continuous.
- Voltage range: 12 to 90V single power supply.
- PWM frequency: 40 kHz.
- Communication speed: 19.2 - 115.2 KBPS.
- Servo rate: 2 kHz; Command rate: up to 1000/sec.
- Encoder transition rate: up to 500 kHz.
Safety Features:
- Comprehensive motor output short-circuit protection.
- Adjustable motor current limit.
- Over/under voltage shutdown.
- Overheating protection.
- Emergency stop input.
- Forward and reverse overtravel inputs.
Supported Motors:
- Brushless DC 60º/120º commutated.
- Brushed DC.
- Printed Armature DC motors.
Connectivity: Utilizes standard RJ-45 connectors and commercially available cables for daisy chaining modules.
Additional Information: For more technical specifications, visit the PML FlightLink website.
