Inductive Joysticks
Inductive Joysticks

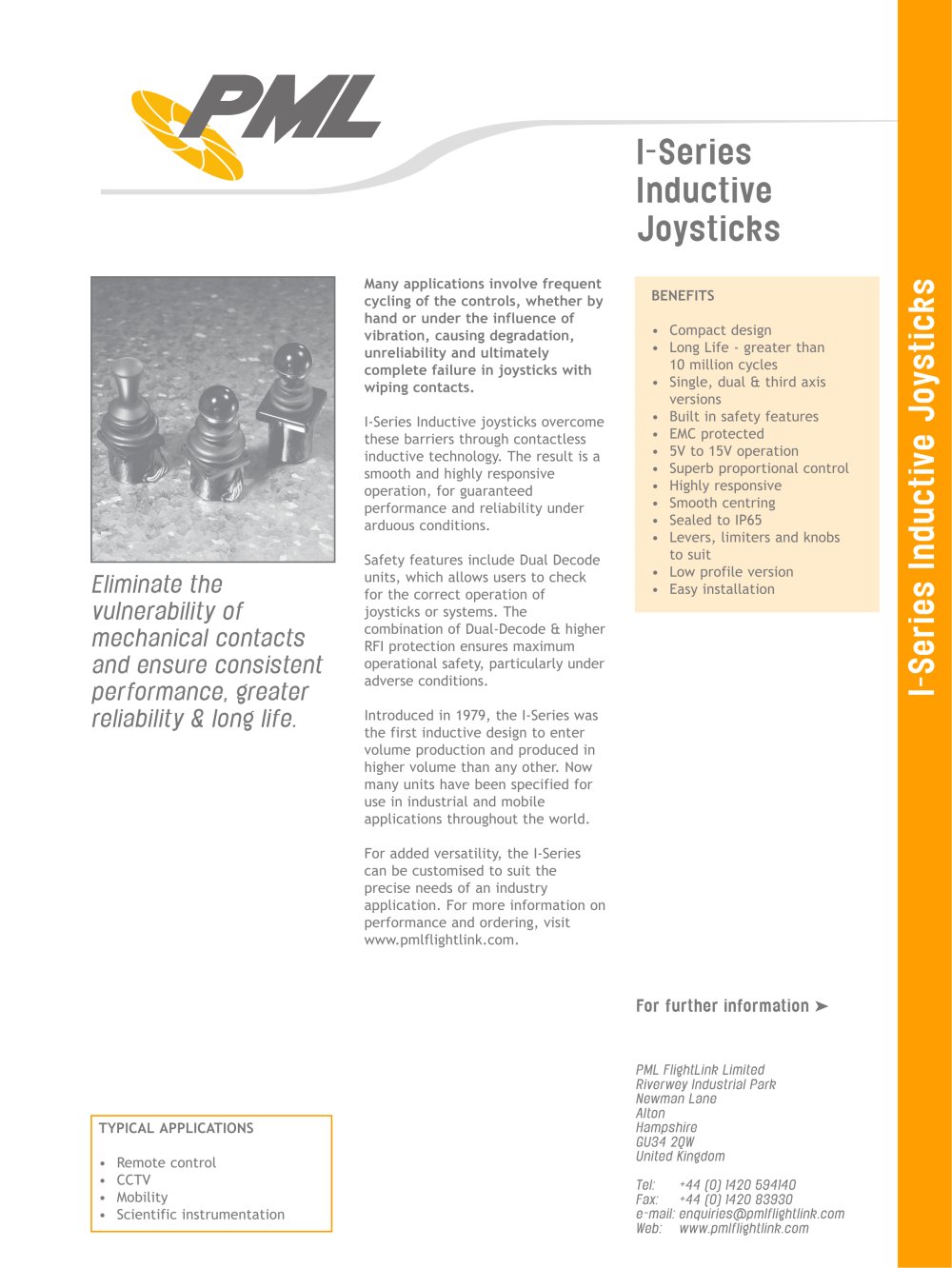

The I-Series Inductive Joysticks are designed to eliminate the vulnerabilities associated with mechanical contacts, ensuring consistent performance, greater reliability, and long life. These joysticks utilize contactless inductive technology, providing smooth and responsive operation even under challenging conditions.
Key Features
- Compact design with a lifespan exceeding 10 million cycles.
- Available in single, dual, and third-axis versions.
- Built-in safety features including Dual Decode units for operational checks.
- EMC protection and operation within 5V to 15V range.
- Sealed to IP65 for environmental protection.
- Customizable to meet specific industry needs.
Specifications
Electronic Specifications:
- Supply Voltage: 5V to 15V max.
- Output Impedance: 1.8k Ohms ±1%.
- RFI Rejection: >20V/M without external shielding, >40V/M with external shielding.
- Operating Temperature: -20ºC to +55ºC.
- Body made of glass-filled nylon, lever of 303 stainless steel.
- Components include hardened steel gimbal pins and PVC or neoprene gaiter.
Applications
- Remote control systems.
- CCTV operations.
- Mobility aids.
- Scientific instrumentation.
Contact Information
PML FlightLink Limited, Riverwey Industrial Park, Newman Lane, Alton, Hampshire, GU34 2QW, United Kingdom. Tel: +44 (0) 1420 594140, Email: [email protected], Web: www.pmlflightlink.com
Catalog excerpts
ELECTRONIC SPECIFICATION *Supply Voltage (Vs) 5 V to 15 V max > Signal Swing Optional Җ up to a maximum of 50% Vs Output Impedance 1.8k Ohms ѱ1% Preferred Load 10k Ohms to infinity Centre Tap Impedance 340 Ohms 1% Signal Ripple <1% of Output *Current Drain 15mA typ (Vs = 10V) *RFI Rejection >20V/M properly Installed (no external shielding)>40V/M properly Installed (with external shielding) > All dimensions in mm. All weights in kg. *ESD Immunity >10kV properly Installed *Signal Matching (DD) <5% of Maximum Swing *Operating Temperature -20ѺC to +55C PCB / Components Surface Mount > *Some parameters...
