GPG Series Gearmotors

Product catalog summary

Overview: The GPG Series by PML FlightLink Limited combines the advantages of flat armature motor technology with an ultra-slim integrated gearbox. This compact and lightweight motor gearbox combination is designed for a wide range of applications, offering high quality and cost-effective solutions.

Specifications:

DC input voltages: 12V, 24V, and 36V.
Standard gear ratios: 12:1 to 206:1.
Optional encoder or brake for feedback control or safety.
Grease lubricated gearbox with a maximum temperature of 150°C.
Weight: 1.5 kg, Color: Black.

Performance Characteristics:

GPG-M12 (12V): Rated at 12 Volts and 10 Amps, with efficiency around 85-86% across various gear ratios.
GPG-M12 (24V): Rated at 24 Volts and 7.5 Amps, maintaining similar efficiency levels.
GPG-N12 (36V): Special order only, rated at 36 Volts and 7 Amps.

Applications: Suitable for battery-operated units, welder conductor feeds, industrial robots, small rewinders, wire drawers, medical equipment, golf carts, and mobility equipment.

Special Options: Customizable options include brakes, encoders, or tachometers. Gearbox configurations can be adjusted for specific needs, with gear ratios available from 10:1 to 206:1.

Contact Information: For further details, visit the website or contact PML FlightLink Limited directly.

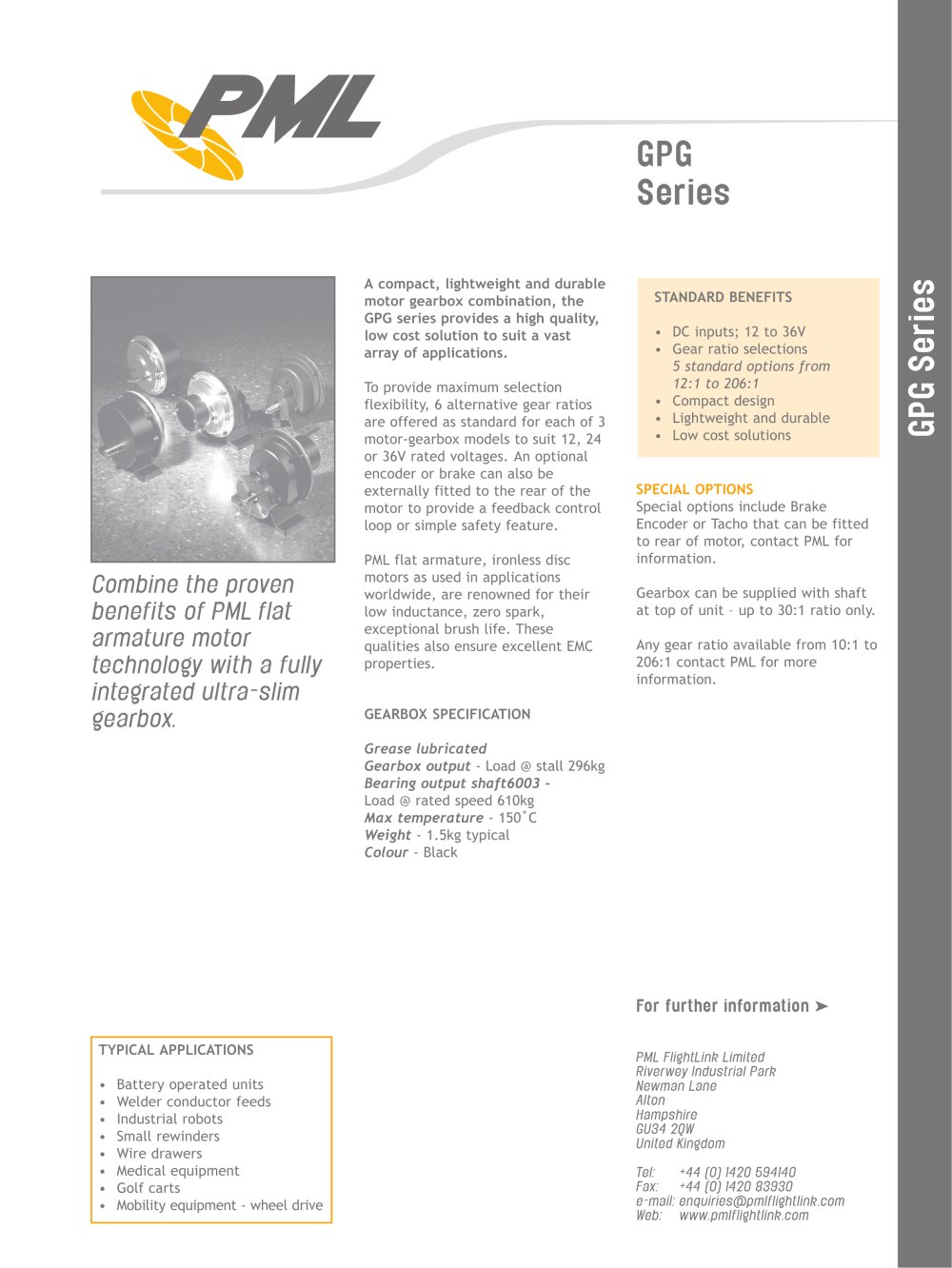

Catalog excerpts

GPG - M12 (12V) Rated voltage and current12 Volts and 10 Amps GPG - N12 (36V) Rated voltage and current36 Volts and 7 Amps REDUCTION RATIO 102580120206 24132035 300120382515 36193052 8686858585 REDUCTION RATIO 102580206 61342 30012038 92063 868685 Output Shaft TorqueNcm Output Shaft TorqueNcm Output Shaft Speedrpm Output Shaft Speedrpm Instantaneous Max TorqueNmEfficiency Instantaneous Max TorqueNm Efficiency > specialorder only GPGSeries GPG - M12 (24V) Rated voltage and current24 Volts and 7.5 Amps > REDUCTION RATIO 102580120206 37233561 300120382515 511345391 8686858585 Output Shaft TorqueNcm...
