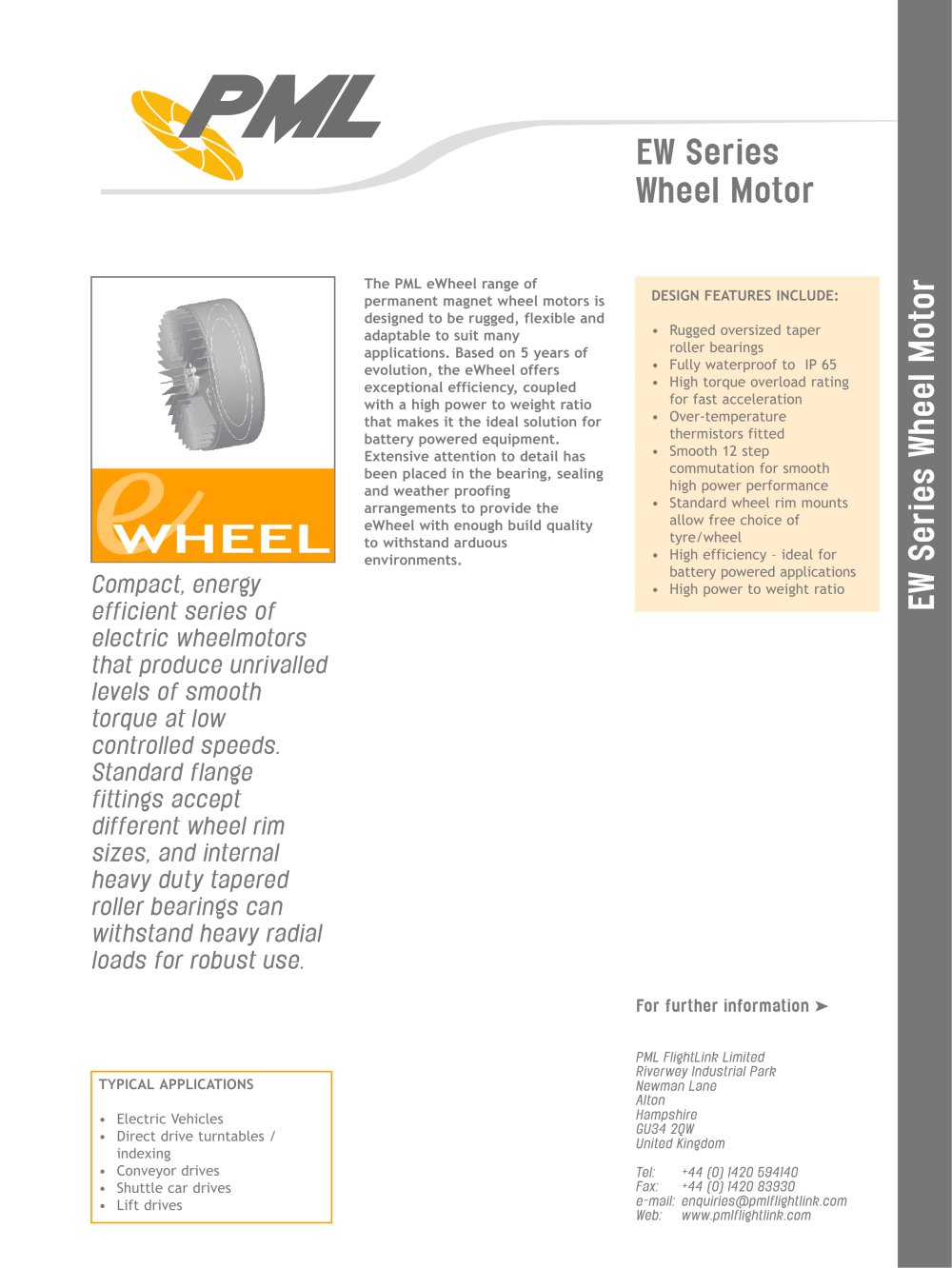

EW Series Wheelmotors
Product catalog summary
Overview: The document provides technical specifications and features of the EW Series Wheel Motor by PML FlightLink Limited. These motors are designed for high efficiency and robust performance in various applications, particularly suitable for battery-powered equipment.
Design Features:
- Rugged oversized taper roller bearings for durability.
- Fully waterproof to IP 65 standards.
- High torque overload rating for rapid acceleration.
- Over-temperature thermistors for safety.
- Smooth 12-step commutation for high power performance.
- Standard wheel rim mounts for flexibility in tire/wheel choice.
- High power to weight ratio, enhancing efficiency.
Typical Applications:
- Electric Vehicles
- Direct drive turntables/indexing
- Conveyor drives
- Shuttle car drives
- Lift drives
Motor Ratings and Test Results:
- Peak Stall Torque ranges from 36 Nm to 640 Nm depending on the model.
- Continuous Stall Torque ranges from 9 Nm to 160 Nm.
- Rated Power varies from 1350 Watts to 14400 Watts.
- Rated Speed ranges from 900 RPM to 1500 RPM.
Motor Dimensions: Detailed dimensions are provided for different models (EW15, EW20, EW25, EW30) with specifications for various parameters such as length, width, and weight.
Performance Characteristics: The document emphasizes the need for precise figures based on specific customer application requirements, directing users to the company's website for more detailed information.
See more
Catalog excerpts
TEST DETAILE WHEEL MOTOR TESTRESULTS MOTOR RATINGSUNITEW15EW20EW25EW30 3060306030603060 Peak Stall Torque (30 sec)Nm364876140168340320640 Continuous Stall TorqueNm9121935428580160 Rated PowerWatts135018002280420042008500720014400Rated SpeedRPM150015001200120010001000900900 >
