Metal Cutting
Product catalog summary
Overview: The document provides detailed technical specifications for various models of industrial machinery, primarily focusing on cutting and sawing equipment. It includes information on dimensions, power requirements, cutting capacities, and operational speeds.
Specifications:
- Power Supply: Most machines operate on 400 V with varying power outputs ranging from 0.37 kW to 11 kW.
- Cutting Speed: Machines offer cutting speeds between 10 to 170 m/min, depending on the model and configuration.
- Dimensions and Weight: The equipment dimensions vary significantly, with some models as compact as 710×420×350 mm and others as large as 5100×2450×3000 mm. Weights range from 29 kg to 14500 kg.
- Cutting Angles: Machines support various cutting angles, typically 90°, ±45°, and ±60°.
Models and Variants:

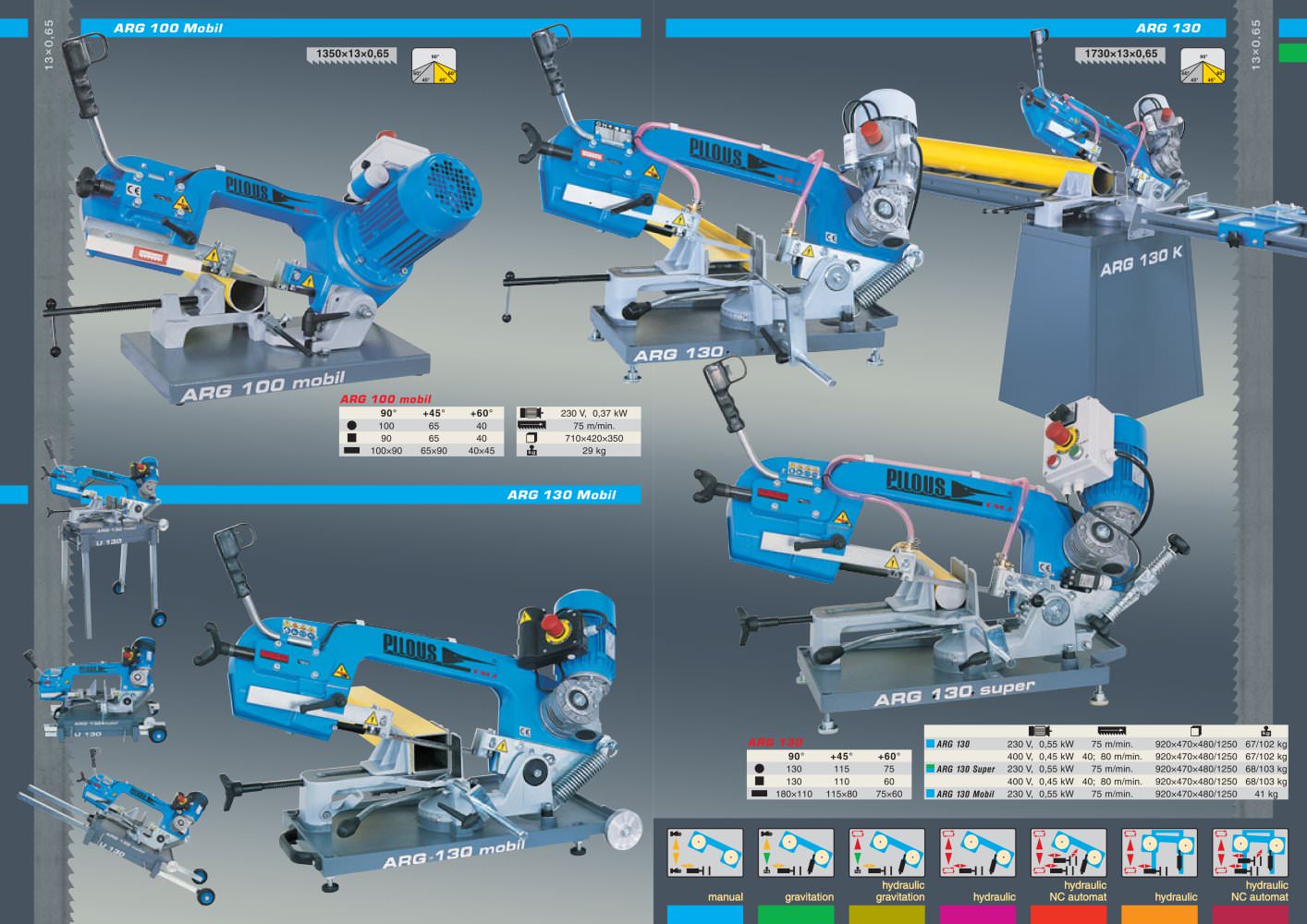

- ARG Series: Includes models like ARG 130, ARG 200, ARG 250, and ARG 300, each with multiple variants such as Super, Mobil, and NC Automat.
- PP Series: Models like PP 301, PP 361, and PP 501, available in standard and CNC configurations.
- AWD Series: High production systems like AWD 4.2 CNC and AWD 10.2 CNC, designed for heavy-duty operations.
Key Features:
- Automation: Many models feature automatic CNC systems for enhanced precision and efficiency.
- Display: Some models are equipped with graphic displays for easier operation and monitoring.
- Customization Options: Various options and accessories are available to tailor the machines to specific operational needs.
Recommendations: Choose the model based on specific operational requirements such as cutting capacity, speed, and automation needs. Consider the available space and power supply when selecting equipment dimensions and power ratings.
See more
Catalog excerpts
EXTRA ARG 1100 special IR 220 SYS 01 RBS 2500 CCS 660 EcoDrill ED 1250 >
Open the catalog to page 19All Pilous catalogs and technical brochures
