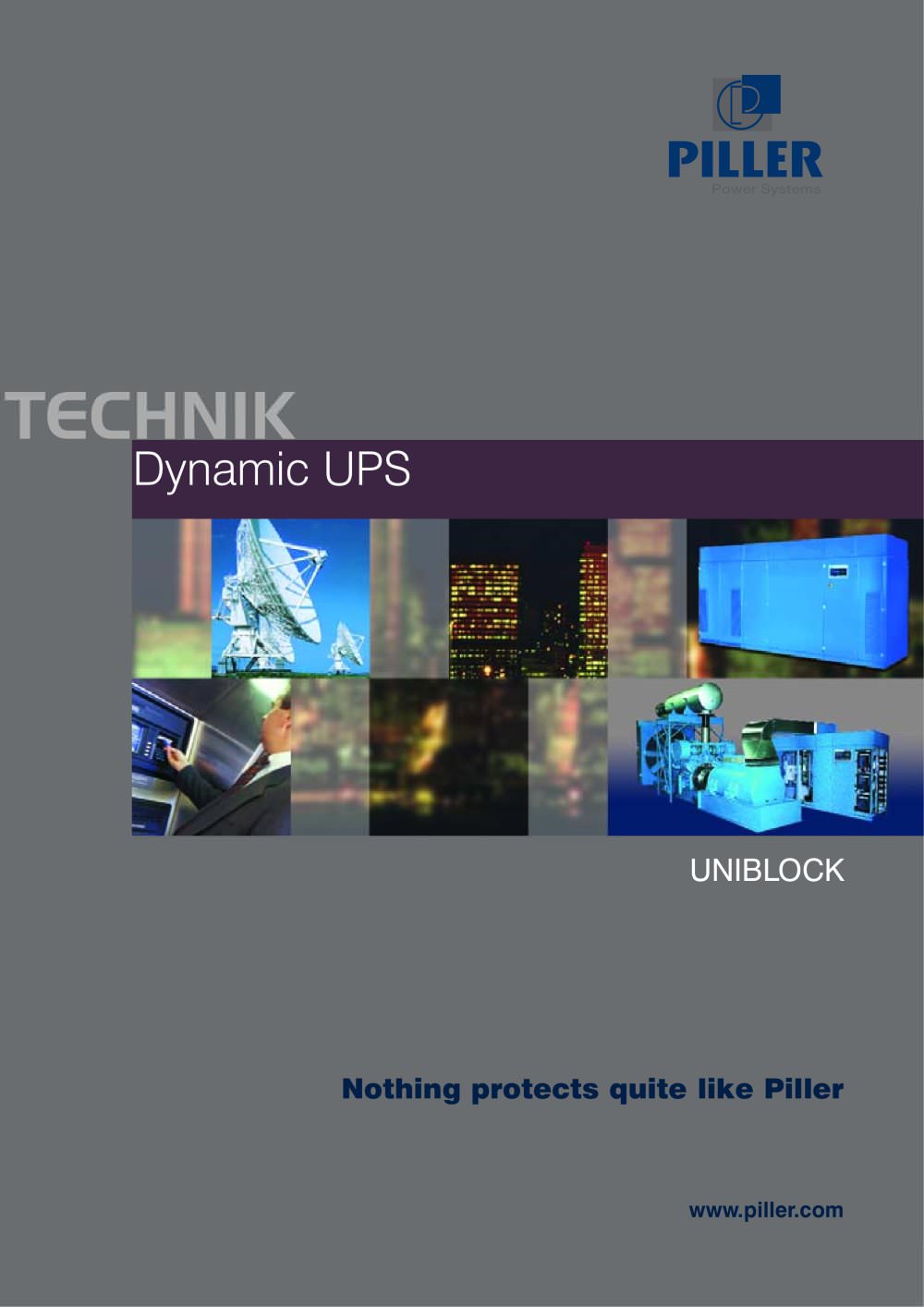

Dynamic UPS
12Pages

Delivering exceptional availability of qualityoutput power Peace of mind, ease of operation and low costof ownership > Ң֠ UPS Mean Time Between Failure upto1,200,000 hours > ■ Quiet in operation > ■ Water cooling available (selectedmodels) > ■ Redundant master/slave controllers > ■ Redundant on-board power supplies > ■ Paralleling and synchronisation ability > ■ Leading and lagging output power factor without de-rating > ■ A range of communication protocols and industry standard interfaces > ■ Natural sine-wave output > ■ Remote monitoring > ■ Guaranteed cooling > ■ Integration with...

Loads are becoming more commonamong today's power demands. The latest enterprise-class servers have internal power supplies, designed to meet new international standards, that cause overall power factor swings through unity to leading. The UNIBLOCK is proven capable of handling these leading power factor environments without over-sizing as required by other UPS systems. Because Piller's dynamic UPS systems utilise natural principles of power generation, the UNIBLOCK provides inherent assurance that ever-changing power requirements will be met today and tomorrow! > UNIBLOCK's full range of...

The UNIBLOCK provides protectionagainst both utility and load disturbances. Its robust electro- mechanical design naturally absorbs and filters any disturbances, including input and output harmonics, while assuring a clean, regulated sine wave. True isolation is also assured by UNIBLOCK's unique bypass switching device, an electromechanical switch that is not susceptible to short circuits compared to other UPS systems. The UNIBLOCK's power conditioningdelivers premium performance, including: > ■ Low input distortion factor, notexceeding 3% in normal operation > ■ Low output voltage...

The UNIBLOCK by virtue of it's lowoutput impedance, inherently delivers fault current of 14 times the nominal full load. Offering fault current delivery similar to the systems utility transformer, security is provided even when utility power is not available to the site. This guarantees disconnection of a downstream fault within 10ms, without going to an unprotected bypass source, if available, as required by other UPS systems! With UNIBLOCK during the fault clearing condition, full UPS function including battery operation ֖ is maintained and remaining loads are unaffected. This is...

For the user, the UNIBLOCK is friendlyand gives continuous peace of mind. The touch operated, colour display panel is presented as a system mimic diagram, permitting intuitive operation. The display provides clear indication of system status at all times and continually monitors and records the systems operation. At any time a full history of system events can be called upon from the display, enabling the operator to view the systems operation 24/7. UNIBLOCK is carefully engineered withmaintenance in mind to minimise any down time. Piller equipment is quick to service, by design. UNIBLOCK's...

The UNIBLOCK integrates capably intoany new or existing power quality system. The UNIBLOCK is delivered "parallel ready" and does not require specially configured integration circuitry like most other UPS systems. UNIBLOCK offers flexibility to be connected in a variety of configurations to provide redundant protected power paths from multiple upstream sources. The appropriate system can be engineered by Piller's systems integration team, in-house engineersand project managers with decades of large-system expertise in electrical hardware, controls and software. In a collaborative process,...

Research shows that utility disturbanceslasting more than 10ms occur almost daily. 97% of these power disturbances are less than 3 seconds in duration. Therefore, the need for capable short term power protection cannot be overstated. UNIBLOCK offers a choice of short term energy storage Җ either traditional batteries or POWERBRIDGE, Piller's very own advanced kinetic energy storage system. > The UNIBLOCK is very battery friendly, maximising their service life and reducing costs. The batteries are not subject to constant harmful DC ripple currents from inverter operation and the UNIBLOCK's...

To protect against long-term outages,UNIBLOCK can be configured with a separate diesel generator system or supplied with an integrated diesel engine solution. With the choice of either battery or battery free short term energy storage customer specific ride through times can be built into the system design. Whichever storage system is selected you can be assured that frequent engine starting will be avoided, reducing component stress and pollution/noise nuisance. Piller's integrated engine systems utilise a horizontal orientation where the UNIBLOCK is directly coupled to the engine through...

Across the globe the Piller network iscommitted to delivering world-class service resources and Piller clients can always be confident that a highly qualified team of service and support technicians are there to uphold the very best standards of customer care. Services range from installation andcommissioning to predictive analysis, emergency call-out, spare parts, planned maintenance and training. Sophisticated remote monitoring can track a system's operating status at any time, anywhere. With the Piller "Total Care" programme, Piller simply takes care of everything. > ● UPSmaintenance > ●...
