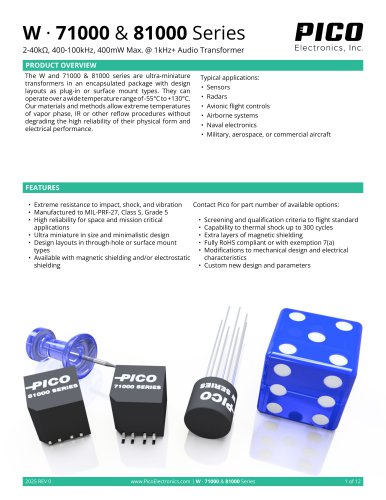

Ultra Miniature Transformers W Series Thru Hole Specifications MIL-PRF-27: All units manufactured to MIL-PRF-27, Grade 5, Class S. FREQUENCY RESPONSE: ±3db, 400 Hz - 100 KHz at 1.0 Milliwatt. MAXIMUM DISTORTION: 5% With Rated Power Level at 1 KHz and 400 Hz. DIELECTRIC STRENGTH: All Units Tested at 200 V RMS. INSULATION RESISTANCE: Greater Than 10,000 Megohms at 300 V DC. WEIGHT: 2.5 Grams. OPERATING TEMPERATURE: -55º C to +130º C TERMINALS: Solid .016 Diameter Conductor. Solderability per MIL-STD-202 Method 208. THERMAL SHOCK: 25 Cycles, Method 107, MIL-STD-202, Test Condition 55º C. to +130º C Larger size drawing of W Series [1] Ultra Miniature Transformers: W Series Pico Part Number W Series Prim. Imped. Ohms Sec. Imped. Ohms Split Windings SER Prim. Unbal. DC Curr. ma Turns Ratio Prim/Sec. Prim. DC Resist. Ohms Power Watts

Open the catalog to page 1

Ultra Miniature Transformers: W Series Pico Part Number W Series Prim. Imped. Ohms Sec. Imped. Ohms Split Windings SER Power Watts Prim. Unbal. DC Curr. ma Prim. DC Resist. Ohms Turns Ratio Prim/Sec.

Open the catalog to page 2

Ultra Miniature Transformers: W Series Pico Part Number W Series Prim. Imped. Ohms Sec. Imped. Ohms Split Windings SER Power Watts Prim. Unbal. DC Curr. ma Prim. DC Resist. Ohms Turns Ratio Prim/Sec.

Open the catalog to page 3

Ultra Miniature Transformers: W Series Pico Part Number W Series Prim. Imped. Ohms Sec. Imped. Ohms Split Windings SER Power Watts Prim. Unbal. DC Curr. ma Prim. DC Resist. Ohms Turns Ratio Prim/Sec. W-SHIELD: MU-METAL SHIELD .37" d x .32" h (9.4 mm d x 8.1 mm h) SINGLE SHIELD WXX-SHIELD: MU-METAL SHIELD .395" d x .33" h (10 mm d x 8.4 mm h) USE WITH W-SHIELD FOR DOUBLE SHIELDING * Includes Electrostatic Shield **Discount Prices: 1-9 Net; 10-24 less 10%; 25-49 less 16%; 50-99 less 23%; 100-499 less 30% Ordering Instructions: No minimum. Net 30 days F.O.B. Pelham, NY Delivery--stock to one...

Open the catalog to page 4

PART NUMBERS INDUCTANCE SERIES Inductors: All inductors have split windings and measurements are listed for both series and parallel connections. Two values of inductance, each at a particular value of DC Current, are listed for each inductor. Delivery - stock to one week for sample orders. For immediate engineering assistance or to place an order: Call Toll Free: 800-431-1064 PICO Electronics, Inc. 143 Sparks Ave. Pelham, NY 10803-1810 Tel: 914-738-1400 or Fax: 914-738-8225 Go back to Thru Hole Transformers and Inductors menu[3]
