VACUUM PUMPS P6010
3Pages

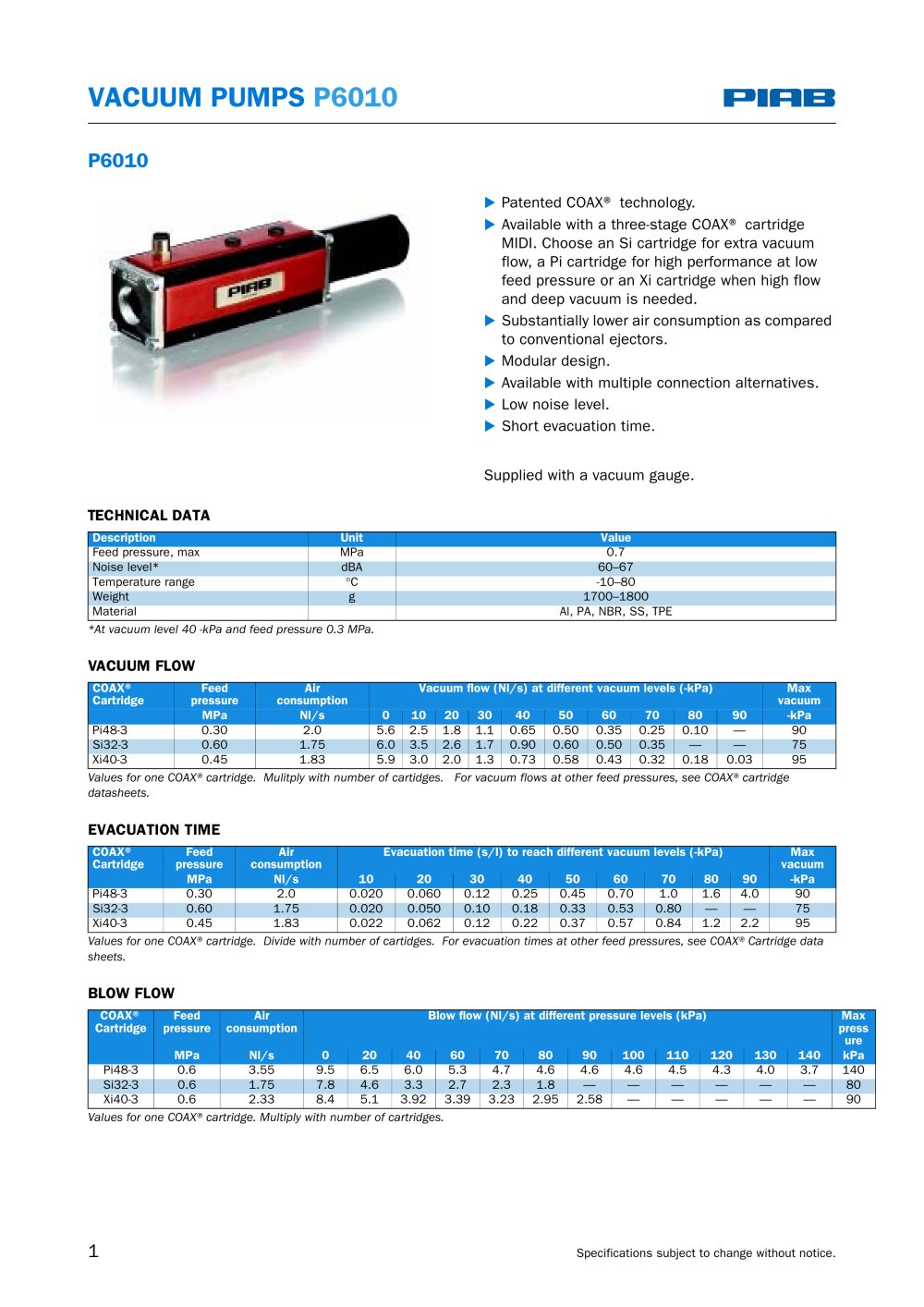

1 Specifications subject to change without notice. VACUUM PUMPS P6010 P6010 .. Patented COAX® technology. .. Available with a three-stage COAX® cartridge MIDI. Choose an Si cartridge for extra vacuum flow, a Pi cartridge for high performance at low feed pressure or an Xi cartridge when high flow and deep vacuum is needed. .. Substantially lower air consumption as compared to conventional ejectors. .. Modular design. .. Available with multiple connection alternatives. .. Low noise level. .. Short evacuation time. Supplied with a vacuum gauge. TECHNICAL DATA *At vacuum level 40 -kPa and feed pressure 0.3 MPa. VACUUM FLOW Values for one COAX® cartridge. Mulitply with number of cartidges. For vacuum flows at other feed pressures, see COAX® cartridge datasheets. EVACUATION TIME Values for one COAX® cartridge. Divide with number of cartidges. For evacuation times at other feed pressures, see COAX® Cartridge data sheets. BLOW FLOW Values for one COAX® cartridge. Multiply with number of cartridges. Description Unit Value Feed pressure, max MPa 0.7 Noise level* dBA 60–67 Temperature range °C -10–80 Weight g 1700–1800 Material Al, PA, NBR, SS, TPE COAX® Cartridge Feed pressure Air consumption Vacuum flow (Nl/s) at different vacuum levels (-kPa) Max vacuum MPa Nl/s 0 10 20 30 40 50 60 70 80 90 -kPa Pi48-3 0.30 2.0 5.6 2.5 1.8 1.1 0.65 0.50 0.35 0.25 0.10 — 90 Si32-3 0.60 1.75 6.0 3.5 2.6 1.7 0.90 0.60 0.50 0.35 — — 75 Xi40-3 0.45 1.83 5.9 3.0 2.0 1.3 0.73 0.58 0.43 0.32 0.18 0.03 95 COAX® Cartridge Feed pressure Air consumption Evacuation time (s/l) to reach different vacuum levels (-kPa) Max vacuum MPa Nl/s 10 20 30 40 50 60 70 80 90 -kPa Pi48-3 0.30 2.0 0.020 0.060 0.12 0.25 0.45 0.70 1.0 1.6 4.0 90 Si32-3 0.60 1.75 0.020 0.050 0.10 0.18 0.33 0.53 0.80 — — 75 Xi40-3 0.45 1.83 0.022 0.062 0.12 0.22 0.37 0.57 0.84 1.2 2.2 95 COAX® Cartridge Feed pressure Air consumption Blow flow (Nl/s) at different pressure levels (kPa) Max press ure MPa Nl/s 0 20 40 60 70 80 90 100 110 120 130 140 kPa Pi48-3 0.6 3.55 9.5 6.5 6.0 5.3 4.7 4.6 4.6 4.6 4.5 4.3 4.0 3.7 140 Si32-3 0.6 1.75 7.8 4.6 3.3 2.7 2.3 1.8 — — — — — — 80 Xi40-3 0.6 2.33 8.4 5.1 3.92 3.39 3.23 2.95 2.58 — — — — — 90

Specifications subject to change without notice. 2 VACUUM PUMPS P6010 Vacuum pumps P6010 ORDERING INFORMATION AVM™2 NO = Normally open valve for vacuum on/off, AVM™2 NC = Normally closed valve for vacuum on/off. CU NC = Normally closed valve for vacuum on/off. For detailed information on Classic plate, PCC, AVM™2 and CU, see separate datasheets. Vacuum flow Evacuation time Blow flow 1. Housing P6010 Code Housing P6010 2. COAX® cartridge modules P6010 code COAX® cartridge module blind x4 AA a COAX® cartridge module Pi48-3X1 AJ a COAX® cartridge module Pi48-3X2 AK a COAX® cartridge module...

3 Specifications subject to change without notice. VACUUM PUMPS P6010 ORDERING INFORMATION, ACCESSORIES Connections 2x G3/4" 53 Connections 2x G3/4", silencer 3/4" 54 Connections 2x 1" NPSF 55 Connections 2x 1" NPSF, silencer 1" 56 Connections 2x 3/4" NPSF 57 Connections 2x 3/4" NPSF, silencer 3/4" 58 Example Ordering number P6010 Pi48-3X1, Mounting T-slot, Cover plate G-threads, Connections 2x G1" and silencer 1" P6010 AJ 01 LA 52 Description Art. No. Silencer G1" 0112499 Silencer 1" NPSF 0113003 Manometer 250 kPa 0112533 Manometer 1 MPa 0112532 5. Select Connections for vacuum and exhaust...
