VACUUM PUMPS CLASSIC
2Pages

{{requestButtons}}

Catalog excerpts

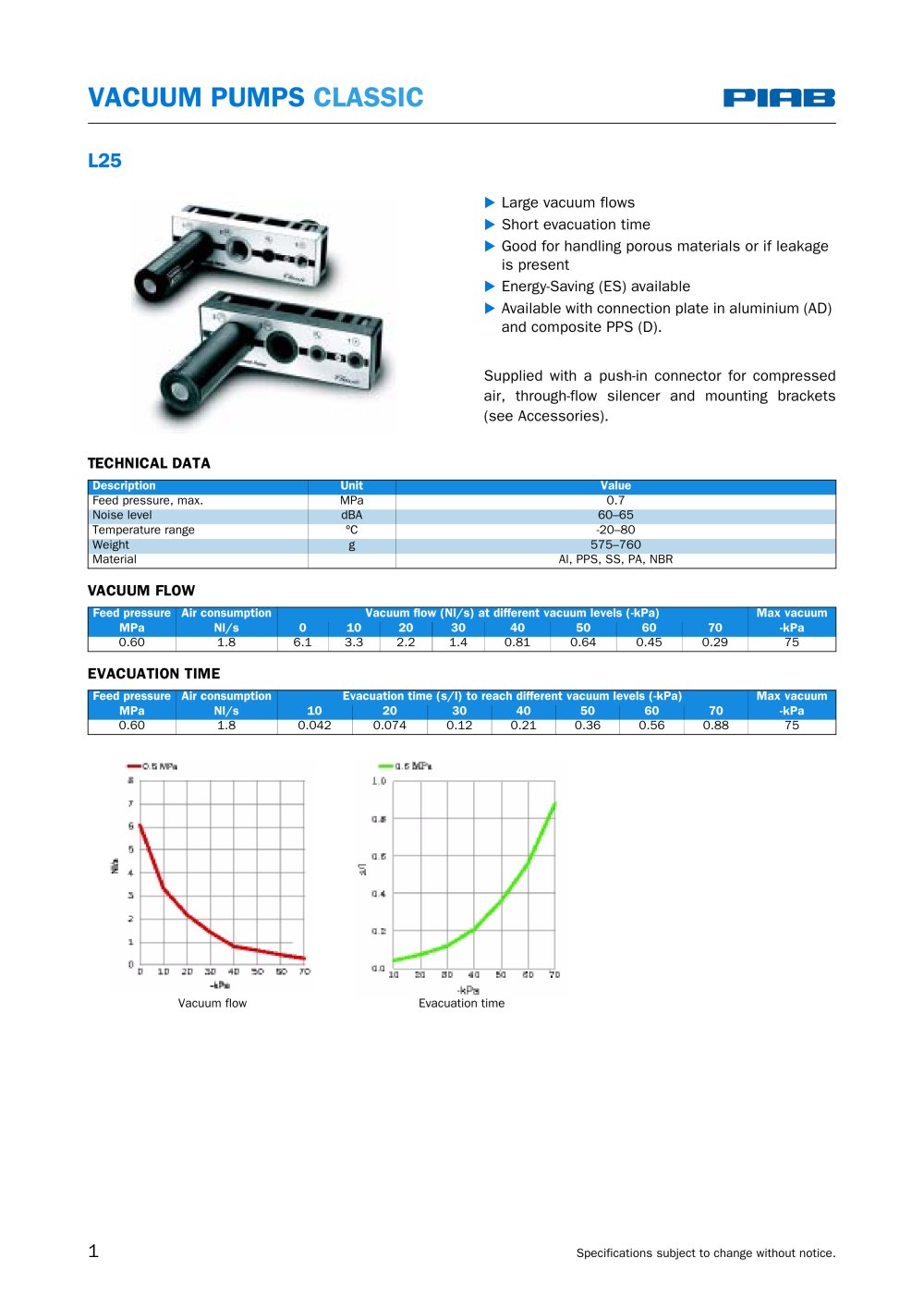

VACUUM PUMPS CLASSIC - 1

1 Specifications subject to change without notice. VACUUM PUMPS CLASSIC L25 .. Large vacuum flows .. Short evacuation time .. Good for handling porous materials or if leakage is present .. Energy-Saving (ES) available .. Available with connection plate in aluminium (AD) and composite PPS (D). Supplied with a push-in connector for compressed air, through-flow silencer and mounting brackets (see Accessories). TECHNICAL DATA VACUUM FLOW EVACUATION TIME Description Unit Value Feed pressure, max. MPa 0.7 Noise level dBA 60–65 Temperature range ºC -20–80 Weight g 575–760 Material Al, PPS, SS, PA, NBR Feed pressure Air consumption Vacuum flow (Nl/s) at different vacuum levels (-kPa) Max vacuum MPa Nl/s 0 10 20 30 40 50 60 70 -kPa 0.60 1.8 6.1 3.3 2.2 1.4 0.81 0.64 0.45 0.29 75 Feed pressure Air consumption Evacuation time (s/l) to reach different vacuum levels (-kPa) Max vacuum MPa Nl/s 10 20 30 40 50 60 70 -kPa 0.60 1.8 0.042 0.074 0.12 0.21 0.36 0.56 0.88 75 Vacuum flow Evacuation time

Open the catalog to page 1
VACUUM PUMPS CLASSIC - 2

Specifications subject to change without notice. 2 VACUUM PUMPS CLASSIC Vacuum pumps CLASSIC ORDERING INFORMATION ORDERING INFORMATION, ACCESSORIES Sealing kits include flap valves, gaskets and compressed-air filters. Description Art. No. A Vacuum pump CLASSIC L25, conn. AD, NBR sealings, ES 0103095 B Vacuum pump CLASSIC L25, conn. AD, NBR sealings 0102117 B Vacuum pump CLASSIC L25, conn. D, NBR sealings 0102025 B Vacuum pump CLASSIC L25, conn. D, Viton® sealings 0102212 C Vacuum pump CLASSIC L25, conn. AD, NBR sealings, non-return valve 0102118 C Vacuum pump CLASSIC L25, conn. D, NBR...

Open the catalog to page 2
