- 5602 Filter Units: Available with textile or Gore Sinbran filters, operating at a feed pressure of 0.4–0.6 MPa and a temperature range of 0–60°C. Textile filters handle particles as small as 5.0 μm, while Gore Sinbran filters handle particles down to 0.5 μm. Filter areas range from 0.60 to 0.77 m².
- 5604 and 5606 Filter Units: Utilize Gore Sinbran filters with similar pressure and temperature ranges, but with larger filter areas from 1.33 to 2.38 m², and a minimum particle size of 0.5 μm.
- Maxi L400 to L1600: These pumps power vacuum conveyors, offering high vacuum flow and compact design. They operate within a feed pressure range of 0.4–0.6 MPa and a vacuum range of 61–75 kPa, with air consumption from 20–112 Nl/s and weights from 7.7 to 19.5 kg.
- 56/43 and 56/57 Connections: Designed for hygienic connection to pipe systems, compliant with FDA standards. The 56/43 model offers standard and 3-A connections, while the 56/57 model includes a stainless steel actuator.
- Materials include ASTM 316L, Polyester, PTFE, PE, Al, PPS, SS, and NBR.
- All units operate within a temperature range of 0–60°C.
- Automatic filter cleaning is standard across all filter units.
- Specifications: Operate at a feed pressure of 0.4–0.6 MPa, with a maximum of 0.7 MPa for fluidisation units. Made primarily from ASTM 316L stainless steel, with variations including aluminium, Zn, EP, and PE. Temperature range is 0–60°C, with material batch volumes of approximately 44.7 to 45.5 liters and weights from 16.5 kg to 19.6 kg.
- Product Variants: Includes various models with different material compositions and fluidisation options, each with a unique article number.
- Key Features: Equipped with actuators made from epoxy-coated aluminium or stainless steel. Fluidisation options include white or antistatic cones, with a fluidisation regulator included. Specifications may change without notice.
Catalog excerpts

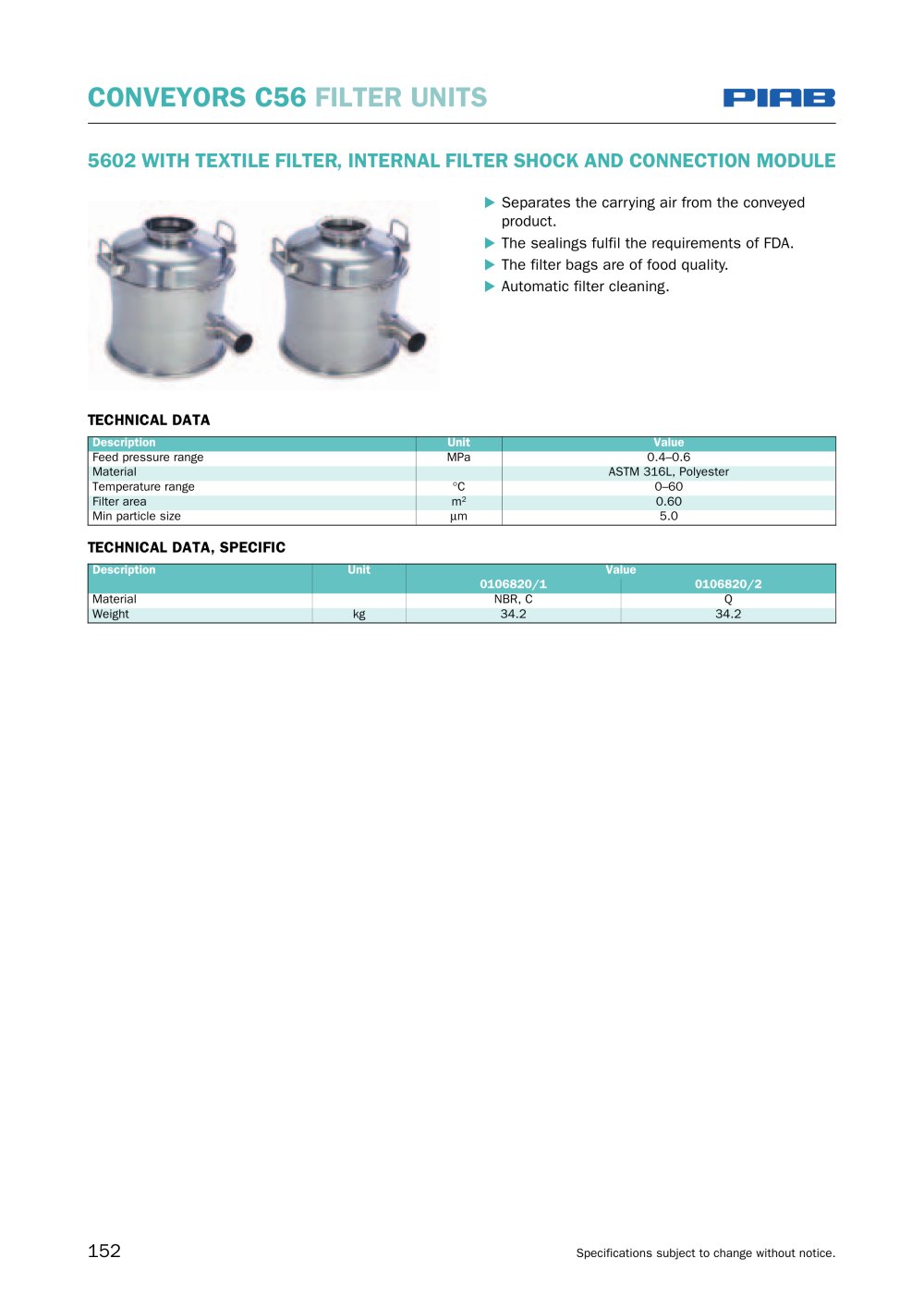

Description Unit Value Feed pressure rangeMPa0.40.6 Material ASTM 316L, PolyesterTemperature range ְ C060 Filter area m > 2 0.60Min particle size ֵ m5.0 Description Unit Value 0106820/1 0106820/2 MaterialNBR, CQ Weight kg 34.2 34.2 > Specifications subject to change without notice. >
Open the catalog to page 1
Description Art. No. Filter unit 5602 textile filter int tang, NBR0106820/1 Filter unit 5602 textile filter int tang, Q 0106820/2 > Conveyors C56FILTER UNITS Specifications subject to change without notice. >
Open the catalog to page 2
Description Unit Value Feed pressure rangeMPa0.40.6 Material ASTM 316L, PolyesterTemperature range ְ C060 Filter area m > 2 0.60Min particle size ֵ m5.0 Description Unit Value 0106821/1 0106821/2 MaterialNBR, CQ Weight kg 34.4 34.5 > Specifications subject to change without notice. >
Open the catalog to page 3
Description Art. No. Filter unit 5602 textile filter int tang 3-A NBR0106821/1 Filter unit 5602 textile filter int tang 3-A Q 0106821/2 > Conveyors C56FILTER UNITS Specifications subject to change without notice. >
Open the catalog to page 4
Description Unit Value Feed pressureMPa0.40.6 Material ASTM 316L, PolyesterTemperature range ְ C060 Filter area m > 2 0.98Min particle size ֵ m5.0 Description Unit Value 0106822/1 0106822/2 MaterialNBR, CQ Weight kg 29.2 29.3 > Specifications subject to change without notice. >
Open the catalog to page 5
Description Art. No. Filter unit 5604 textile filter int NBR0106822/1 Filter unit 5604 textile filter int Q 0106822/2 > Conveyors C56FILTER UNITS Specifications subject to change without notice. >
Open the catalog to page 6
Description Unit Value Feed pressure rangeMPa0.40.6 Material ASTM 316L, PolyesterTemperature range ְ C060 Filter area m > 2 1.64Min particle size ֵ m5.0 Description Unit Value 0106823/1 0106823/2 MaterialNBR, CQ Weight kg 37.0 37.1 > Specifications subject to change without notice. >
Open the catalog to page 7
Description Art. No. Filter unit 5606 textile filter int NBR0106823/1 Filter unit 5606 textile filter int Q 0106823/2 > Conveyors C56FILTER UNITS Specifications subject to change without notice. >
Open the catalog to page 8
Description Unit Value Feed pressure rangeMPa0.40.6 Material ASTM 316L, PTFE, PETemperature range ְ C060 Filter area m > 2 0.77Min particle size ֵ m0.5 Description Unit Value 0106824/1 0106824/2 MaterialNBR, CQ Weight kg 34.0 34.1 > Specifications subject to change without notice. >
Open the catalog to page 9
Description Art. No. Filter unit 5602 Gore Sinbran int tang, NBR0106824/1 Filter unit 5602 Gore Sinbran int tang, Q 0106824/2 > Conveyors C56FILTER UNITS Specifications subject to change without notice. >
Open the catalog to page 10
Description Unit Value Feed pressureMPa0.40.6 Material ASTM 316L, PTFE, PETemperature range ְ C060 Filter area mֲ 0.77Min particle size m0.5 Description Unit Value 0106825/1 0106825/2 MaterialNBR, CQ Weight kg 34.4 33.3 > Specifications subject to change without notice. >
Open the catalog to page 11
Description Art. No. Filter unit 5602 Gore Sinbran int 3-A tang, NBR0106825/1 Filter unit 5602 Gore Sinbran int 3-A tang, Q 0106825/2 > Conveyors C56FILTER UNITS Specifications subject to change without notice. >
Open the catalog to page 12
Description Unit Value Feed pressure rangeMPa0.40.6 Material ASTM 316L, PTFE, PETemperature range ְ C060 Filter area m > ֲ 1.33Min particle size m0.5 Description Unit Value 0106826/1 0106826/2 MaterialNBR, CQ Weight kg 27.4 27.4 > Specifications subject to change without notice. >
Open the catalog to page 13
Description Art. No. Filter unit 5604 Gore Sinbran int NBR0106826/1 Filter unit 5604 Gore Sinbran int Q 0106826/2 > Conveyors C56FILTER UNITS Specifications subject to change without notice. >
Open the catalog to page 14
Description Unit Value Feed pressureMPa0.40.6 Material ASTM 316L, PTFE, PETemperature range ְ C060 Filter area m > 2 2.38Min particle area ֵ m0.5 Description Unit Value 0106827/1 0106827/2 MaterialNBR, CQ Weight kg 34.4 34.5 > Specifications subject to change without notice. >
Open the catalog to page 15
Description Art. No. Filter unit 5606 Gore Sinbran int NBR0106827/1 Filter unit 5606 Gore Sinbran int Q 0106827/2 > Conveyors C56FILTER UNITS Specifications subject to change without notice. >
Open the catalog to page 16
Specifications subject to change without notice. >
Open the catalog to page 17
Description Art. No. Pump unit Maxi L4000103879 > Conveyors C56PUMP UNITS Description Art. No. Exhaust adapterL100-4003116017 Adapter Maxi L100-L1600 3102073 Specifications subject to change without notice. >
Open the catalog to page 18
Description Unit Value Feed pressure rangeMPa0.40.6 Air consumption range Nl/s 30֖42Vacuum range-kPa6175 Noise level range dBA 72֖76MaterialAl, PPS, SS, NBR Temperature range C 0Ж60Weightkg13.3 Feed pressure Air consumption Vacuum flow (Nl/s) at different vacuum levels (-kPa) Max vacuum MPa Nl/s 10 20 30 40 50 60 70 -kPa 0.642142.577.052.734.218.514.310.06.375 0.5 36 135.4 65.6 45.6 25.7 17.1 12.3 7.1 1.4 710.430119.757.035.821.415.77.70.361 Feed pressure Air consumption 10 20 30 40 50 60 70 Max vacuum MPa Nl/s -kPa 0.6420.0020.0040.0070.010.020.030.0475 0.5 36 0.003 0.004 0.007 0.01 0.02 0.03...
Open the catalog to page 19
Description Art. No. Pump unit Maxi L6000103880 > Conveyors C56PUMP UNITS Description Art. No. Exhaust adapters L600-L8003116018 AdapterMaxi L100-L1600 3102073 Specifications subject to change without notice. >
Open the catalog to page 20
Description Unit Value Feed pressure rangeMPa0.40.6 Air consumption range Nl/s 40֖56Vacuum range-kPa6175 Noise level range dBA 72֖76MaterialAl, PPS, SS, NBR Temperature range C 0Ж60Weightkg13.3 Feed pressure Air consumption Vacuum flow (Nl/s) at different vacuum levels (-kPa) Max vacuum MPa Nl/s 10 20 30 40 50 60 70 -kPa 0.656185.499.968.544.424.118.513.08.175 0.5 48 175.8 85.1 59.2 33.3 22.2 15.9 9.3 1.9 710.440155.474.046.327.820.410.00.461 Feed pressure Air consumption 10 20 30 40 50 60 70 Max vacuum MPa Nl/s -kPa 0.6560.00180.00280.00430.0060.0110.0180.02875 0.5 48 0.0018 0.0028 0.0048 0.007...
Open the catalog to page 21
Description Art. No. Pump unit Maxi L8000103881 > Conveyors C56PUMP UNITS Description Art. No. Exhaust adapters L600-L8003116018 AdapterMaxi L100-L1600 3102073 Specifications subject to change without notice. >
Open the catalog to page 22
Description Unit Value Feed pressure rangeMPa0.40.6 Air consumption range Nl/s 60֖84Vacuum range-kPa6175 Noise level range dBA 72֖76MaterialAl, PPS, SS, NBR Temperature range C 0Ж60Weightkg15.0 Feed pressure Air consumption Vacuum flow (Nl/s) at different vacuum levels (-kPa) Max vacuum MPa Nl/s 10 20 30 40 50 60 70 -kPa 0.684270.0145.899.964.835.127.018.911.975 0.5 72 256.5 124.2 86.4 48.6 32.4 23.2 13.5 2.7 710.46022710867.540.529.714.60.561 Feed pressure Air consumption 10 20 30 40 50 60 70 Max vacuum MPa Nl/s -kPa 0.6840.00150.00220.00320.0040.0080.0120.01975 0.5 72 0.0015 0.0022 0.0035 0.005...
