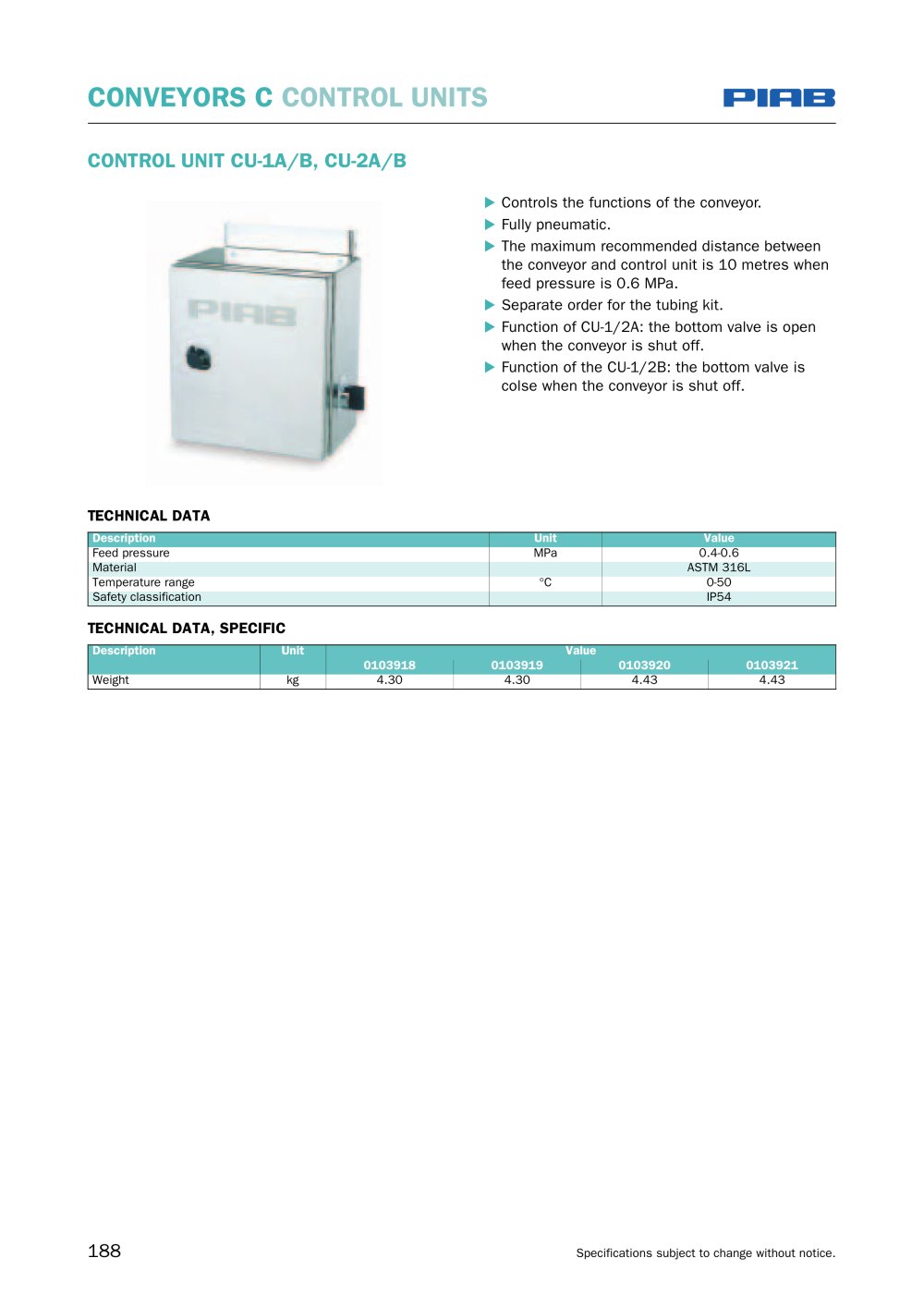

- CU-1A/B, CU-2A/B: These units control conveyor functions with a maximum recommended distance of 10 meters from the conveyor at a feed pressure of 0.6 MPa. CU-1/2A keeps the bottom valve open when the conveyor is off, while CU-1/2B keeps it closed.
- PPT/R and PPT/RS: Fully pneumatic units that control conveyor functions without a start/stop feature. They have similar technical specifications, including a feed pressure range of 0.4–0.6 MPa and a temperature range of 0–50°C.
- VU EP-1: An electro-pneumatic valve unit for controlling vacuum conveyors. It includes four valves with two spare positions and requires a separate nylon tubing kit for compressed air connection.
- Level Detector: Works with CU-1/2 to stop the conveyor when the receiving vessel is full. It operates at a voltage of 24V and has a safety classification of IP54.
- Remote-Controlled Start/Stop: Allows remote pneumatic control of conveyor start/stop functions, compatible with CU-1A/B or CU-2A/B.
- Regulator Kit: Regulates incoming pressure to the pump and filters compressed air. Available in two sizes with different weight specifications.
- Actuating Valve: Handles a maximum feed pressure of 0.7 MPa and operates within a temperature range of -40 to 110°C.
- Valve 3/2 G1/8" PS NC: A valve with a maximum working pressure of 1.0 MPa and a flow rate of 840 Nl/min at 0.6 MPa.
Catalog excerpts
Description Unit Value Feed pressureMPa0.4-0.6 Material ASTM 316LTemperature range C0-50 Safety classification IP54 Description Unit Value 0103918 0103919 0103920 0103921 Weightkg4.304.304.434.43 > Specifications subject to change without notice. >
Open the catalog to page 1
Description Art. No. Control unit CU-1A bracket0103918 Control unit CU-1B bracket 0103919Control unit CU-2A bracket0103920 Control unit CU-2B bracket 0103921 > Conveyors CCONTROL UNITS Description Art. No. Nylon tubing kit, Standard, CU-C210106978 Nylon tubing kit, Fluid, CU-C21 0106879Nylon tubing kit, Standard, CU-C330103929 Nylon tubing kit, Fluid, CU-C33 0103930Nylon tubing kit, Standard, CU-C560106981 Nylon tubing kit, Fluid, CU-C56 0106982Remote control0103924 Mounting clamp to control unit CU-1/2 0104487 Specifications subject to change without notice. >
Open the catalog to page 2
Description Unit Value Feed pressureMPa0.40.6 Material Al, PATemperature range ְ C0-50 Weight kg 0.86 > Specifications subject to change without notice. >
Open the catalog to page 3
Description Art. No. Control unit PPT/R0106066 > Conveyors CCONTROL UNITS Description Art. No. Nylon tubing kit, PPT/R C210106980 Nylon tubing kit, PPT/R C33 0103931Nylon tubing kit, PPT/R C560106983 Specifications subject to change without notice. >
Open the catalog to page 4
Description Unit Value Feed pressure rangeMPa0.40.6 Material Al, PATemperature range ְ C050 Weight kg 1.30Min particle size, filtered air ֵ m5 > Specifications subject to change without notice. >
Open the catalog to page 5
Description Art. No. Control unit PPT/RS0111636 > Conveyors CCONTROL UNITS Description Art. No. Nylon tubing kit PPT/RS-C2100-640117509 Specifications subject to change without notice. >
Open the catalog to page 6
Description Unit Value Feed pressure rangeMPa0.40.6 Material PC, NeopreneTemperature range ְ C0-50 Weight kg 2.27VoltageV24 Safety classification IP54DisplayLED-indicators Power consumption W 3(4)Electric connection8-pin M12ח1.0 > Specifications subject to change without notice. >
Open the catalog to page 7
Description Art. No. Valve unit VU EP-10112864 Valve unit VU EP-1 cpl. for C-conveyor 0113024 Description Art. No. > Conveyors CCONTROL UNITS Nylon tubing kit, Standard CU-C210106978 Nylon tubing kit, Fluidisation CU-C21 0106979Nylon tubing kit, Standard CU-C330103929 Nylon tubing kit, Fluidisation CU-C33 0103930Nylon tubing kit, Standard CU-C560106981 Nylon tubing kit, Fluid CU-C56 0106982 Specifications subject to change without notice. >
Open the catalog to page 8
Description Unit Value MaterialPC, POM Temperature range C 0-50Weightg622 Voltage V 24Safety classification, boxIP54 Description Unit Value Temperature, operating а C-3070 Cable, capacitive gauge mm > 2 3x0.5Safety classification, capacitive gaugeIP67 Current, max mA 300Switching powerW7.2 Description Art. No. Level detector0100267 > Specifications subject to change without notice. >
Open the catalog to page 9
Description Unit Value Feed pressure rangeMPa0.40.6 Temperature range ְ C 050Weightkg0.47 > Conveyors CCONTROL UNITS Material PA Description Art. No. Remote control CU-1/2 Start/Stop with emergency stop0103924 Specifications subject to change without notice. >
Open the catalog to page 10
Description Unit Value Feed pressure, maxMPa0.8 Material Al, PA, Cu, SS, PTFE, PP, POM, NBR, PBTemperature range C-10Ж80 Description Unit Value 0104490 0104491 Weightkg2.784.79 > Specifications subject to change without notice. >
Open the catalog to page 11
Description Art. No. ARegulator kit 1/2" 100-4000104490 B Regulator kit 1" 600-1600 0104491 A B > Conveyors CCONTROL UNITS Specifications subject to change without notice. >
Open the catalog to page 12
Description Unit Value Feed pressure, maxMPa0.7 Material SS, PB, Al, NBR, CuZn, PATemperature range C-40Ж110 Weight g 120 Description Art. No. Actuating valve cpl3107001 1. Compressed-air connection, 2. Compressed-air connection, 3. Exhaust > Specifications subject to change without notice. >
Open the catalog to page 13
Description Unit Value Working pressure, max.MPa1.0 Temperature range C -5Ж70Weightg170 > Conveyors CCONTROL UNITS Flow, at 0.6 MPa with delta-p=0.1 MPa Nl/min 840MaterialAl (anodized) Description Art. No. Valve 3/2 G1/8" PS NC0112436 Specifications subject to change without notice. >
Open the catalog to page 14
Description Unit Value MaterialASTM 316L Weight g 118 Description Art. No. Mounting clamp control unit CU-1/20104487 > Specifications subject to change without notice. >
