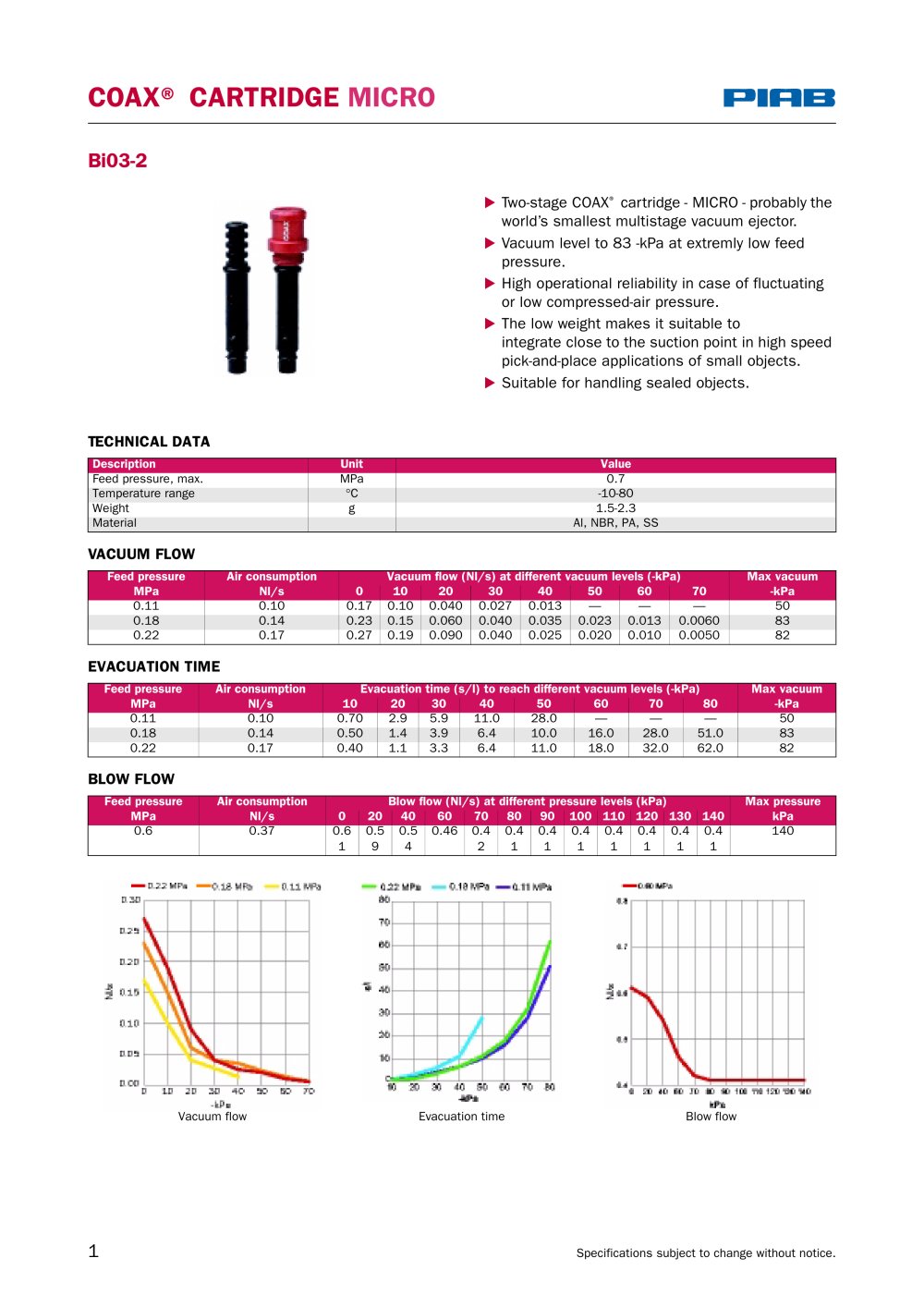

1 Specifications subject to change without notice. COAX® CARTRIDGE MICRO Bi03-2 .. Two-stage COAX® cartridge - MICRO - probably the world’s smallest multistage vacuum ejector. .. Vacuum level to 83 -kPa at extremly low feed pressure. .. High operational reliability in case of fluctuating or low compressed-air pressure. .. The low weight makes it suitable to integrate close to the suction point in high speed pick-and-place applications of small objects. .. Suitable for handling sealed objects. TECHNICAL DATA VACUUM FLOW EVACUATION TIME BLOW FLOW Description Unit Value Feed pressure, max. MPa 0.7 Temperature range °C -10-80 Weight g 1.5-2.3 Material Al, NBR, PA, SS Feed pressure Air consumption Vacuum flow (Nl/s) at different vacuum levels (-kPa) Max vacuum MPa Nl/s 0 10 20 30 40 50 60 70 -kPa 0.11 0.10 0.17 0.10 0.040 0.027 0.013 — — — 50 0.18 0.14 0.23 0.15 0.060 0.040 0.035 0.023 0.013 0.0060 83 0.22 0.17 0.27 0.19 0.090 0.040 0.025 0.020 0.010 0.0050 82 Feed pressure Air consumption Evacuation time (s/l) to reach different vacuum levels (-kPa) Max vacuum MPa Nl/s 10 20 30 40 50 60 70 80 -kPa 0.11 0.10 0.70 2.9 5.9 11.0 28.0 — — — 50 0.18 0.14 0.50 1.4 3.9 6.4 10.0 16.0 28.0 51.0 83 0.22 0.17 0.40 1.1 3.3 6.4 11.0 18.0 32.0 62.0 82 Feed pressure Air consumption Blow flow (Nl/s) at different pressure levels (kPa) Max pressure MPa Nl/s 0 20 40 60 70 80 90 100 110 120 130 140 kPa 0.6 0.37 0.6 1 0.5 9 0.5 4 0.46 0.4 2 0.4 1 0.4 1 0.4 1 0.4 1 0.4 1 0.4 1 0.4 1 140 Vacuum flow Evacuation time Blow flow

Open the catalog to page 1

Specifications subject to change without notice. 2 COAX® CARTRIDGE MICRO COAX® cartridge MICRO ORDERING INFORMATION Description Art. No. A COAX® cartridge MICRO Bi03-2 0106966 B COAX® cartridge MICRO Bi03-2, holding cap 0106968 A B
