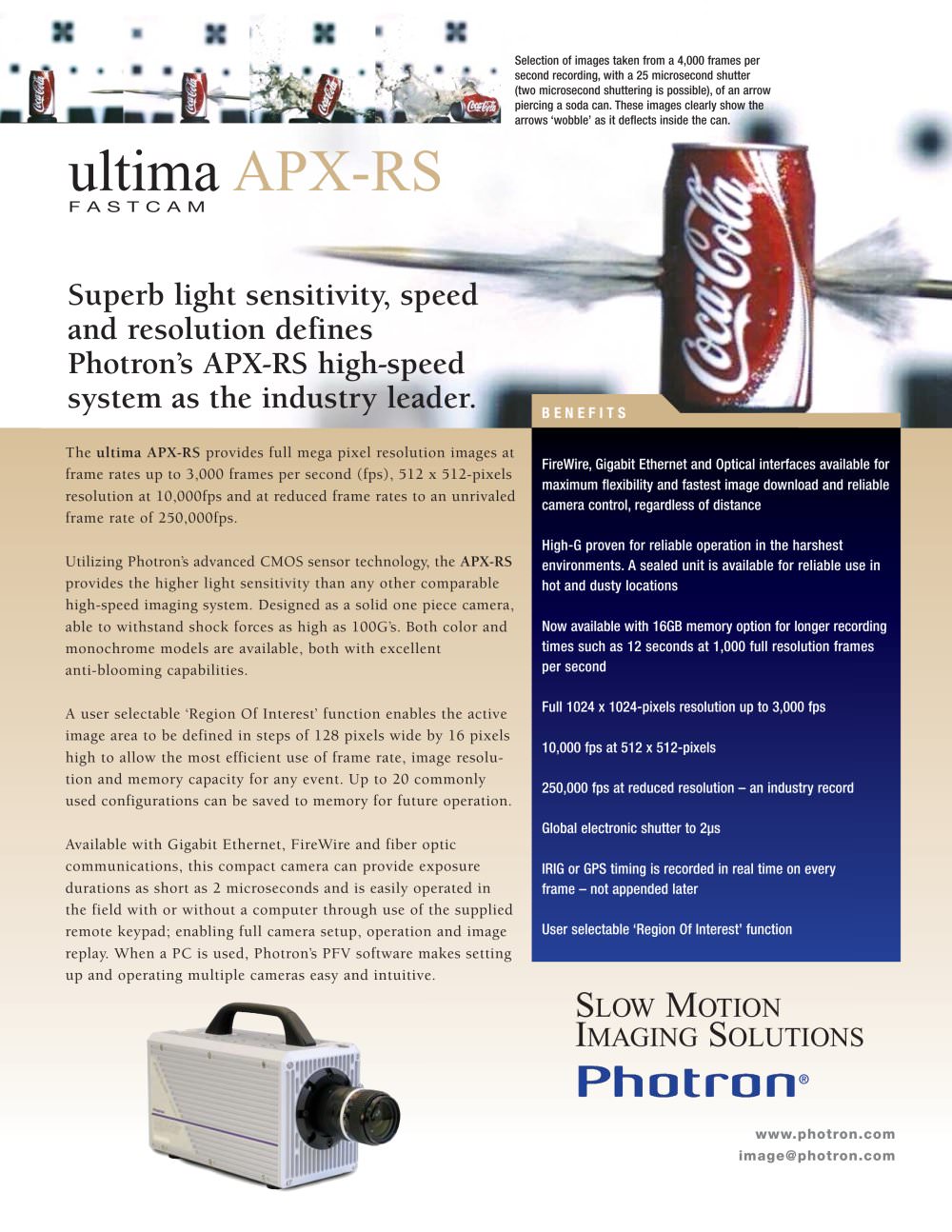

ultima APX-RS
2Pages

Selection of images taken from a 4,000 frames persecond recording,with a 25 microsecond shutter (two microsecond shuttering is possible),of an arrow piercing a soda can. These images clearly show the arrows wobbleђ as it deflects inside the can. BENEFITS The ultima APX-RS provides full mega pixel resolution images atframe rates up to 3,000 frames per second (fps), 512 x 512-pixels resolution at 10,000fps and at reduced frame rates to an unrivaled frame rate of 250,000fps.Utilizing PhotronҒs advanced CMOS sensor technology, the APX-RS > FireWire,Gigabit Ethernet and Optical interfaces available formaximum flexibility and fastest image download and reliable camera control,regardless of distanceHigh-G proven for reliable operation in the harshest environments. A sealed unit is available for reliable use inhot and dusty locationsNow available with 16GB memory option for longer recordingtimes such as 12 seconds at 1,000 full resolution framesper secondFull 1024 x 1024-pixels resolution up to 3,000 fps 10,000 fps at 512 x 512-pixels250,000 fps at reduced resolution an industry record Global electronic shutter to 2ֵsIRIG or GPS timing is recorded in real time on every frame not appended laterUser selectable ֑Region Of Interest function provides the higher light sensitivity than any other comparable high-speed imaging system.Designed as a solid one piece camera, able to withstand shock forces as high as 100GҒs. Both color and monochrome models are available, both with excellent anti-blooming capabilities.A user selectable Region Of Interestђ function enables the activeimage area to be defined in steps of 128 pixels wide by 16 pixels high to allow the most efficient use of frame rate, image resolu- tion and memory capacity for any event. Up to 20 commonly used configurations can be saved to memory for future operation.Available with Gigabit Ethernet, FireWire and fiber optic communications, this compact camera can provide exposure durations as short as 2 microseconds and is easily operated in the field with or without a computer through use of the supplied remote keypad; enabling full camera setup, operation and image replay. When a PC is used, Photrons PFV software makes setting up and operating multiple cameras easy and intuitive. >
