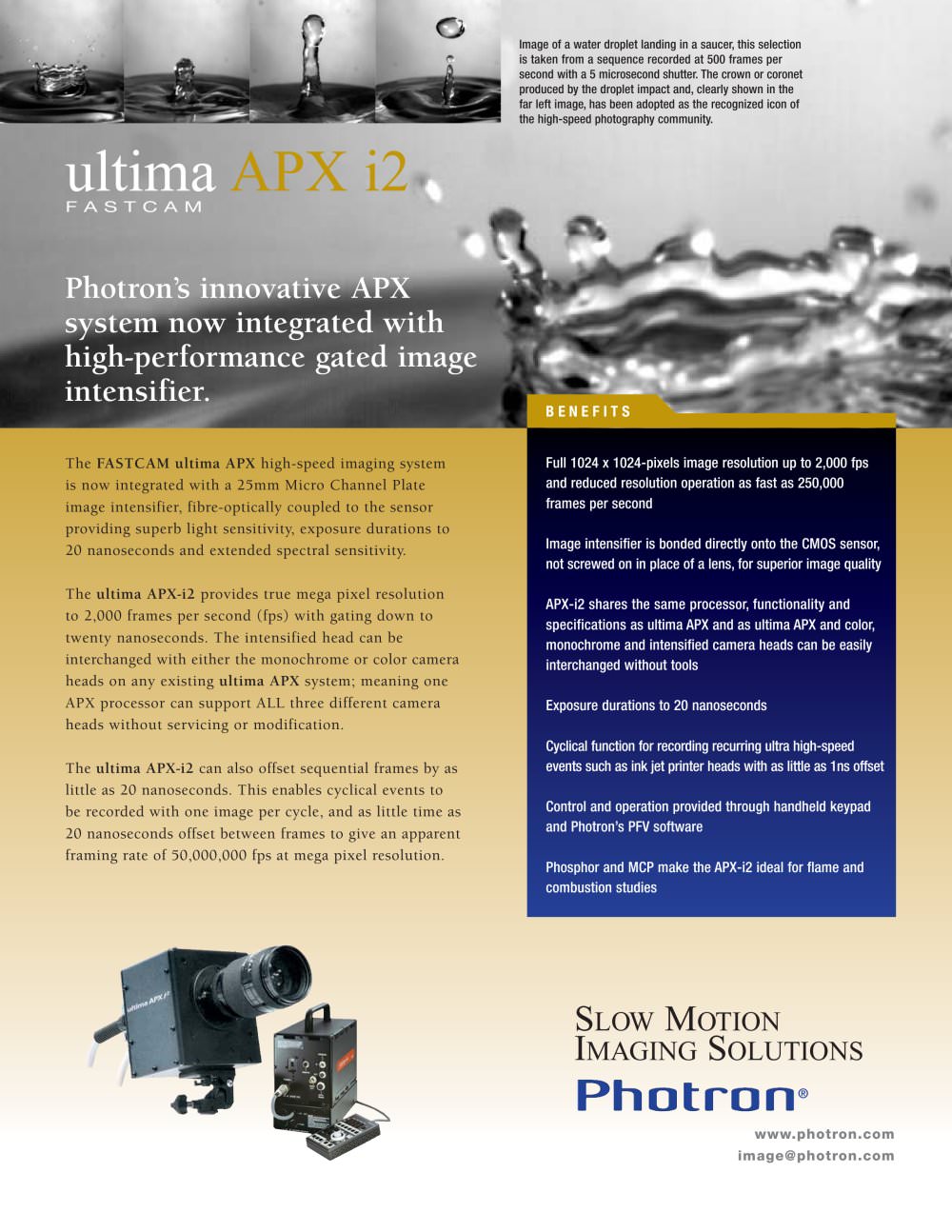

ultima APX-i2
2Pages

Image of a water droplet landing in a saucer,this selectionis taken from a sequence recorded at 500 frames per secondwith a 5 microsecond shutter. The crown or coronetproduced by the droplet impact and,clearly shown in the far left image,has been adopted as the recognized icon of the high-speed photography community. BENEFITS The FASTCAMultima APX high-speed imaging systemis now integrated with a 25mm Micro Channel Plate image intensifier, fibre-optically coupled to the sensorprovidingsuperb light sensitivity, exposure durations to20 nanoseconds and extended spectral sensitivity. The > Full 1024 x 1024-pixels image resolution up to 2,000 fpsand reduced resolution operation as fast as 250,000 frames per secondImage intensifier is bonded directly onto the CMOS sensor,not screwed on in place of a lens,for superior image qualityAPX-i2 shares the same processor,functionality andspecificationsas ultima APX and as ultima APX and color,monochrome and intensified camera heads can be easilyinterchanged without toolsExposure durations to 20 nanosecondsCyclical function for recording recurring ultra high-speedevents such as ink jet printer heads with as little as 1ns offsetControl and operation provided through handheld keypadand PhotronҒs PFV softwarePhosphor and MCP make the APX-i2 ideal for flame andcombustion studies ultima APX system; meaning oneAPX processor can support ALL three different camera heads without servicing or modification. The ultima APX-i2 ultima APX-i2 can also offset sequential frames by aslittle as 20 nanoseconds. This enables cyclical events to be recorded with one image per cycle, and as little time as 20 nanoseconds offset between frames to give an apparent framing rate of 50,000,000 fps at mega pixel resolution. provides true mega pixel resolutionto 2,000 frames per second (fps) with gating down to twenty nanoseconds. The intensified head can be interchanged with either the monochrome or color camera heads on any existing >
