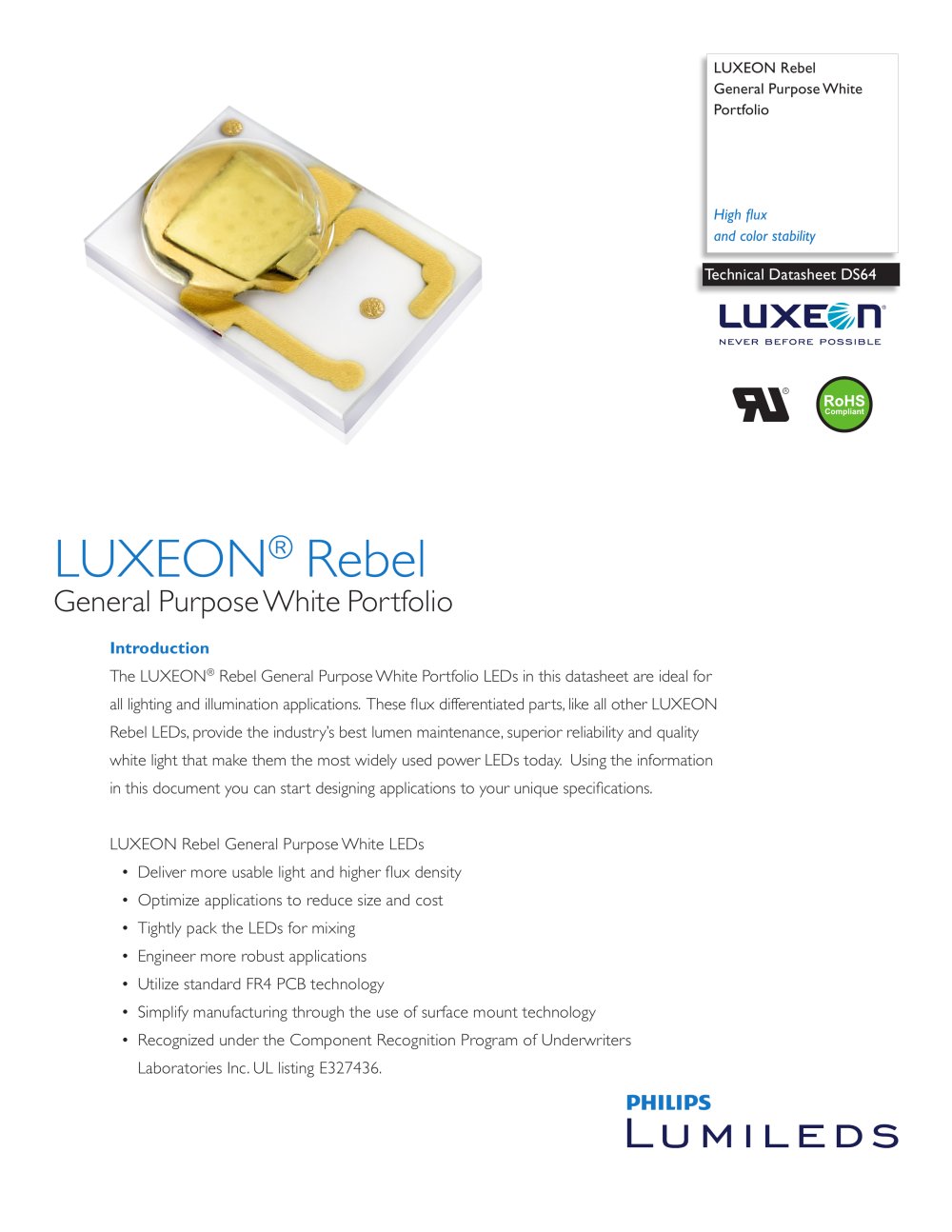

LUXEON Rebel General Purpose White Portfolio High flux and color stability Technical Datasheet DS64 Introduction The LUXEON® Rebel General Purpose White Portfolio LEDs in this datasheet are ideal for all lighting and illumination applications. These flux differentiated parts, like all other LUXEON Rebel LEDs, provide the industry’s best lumen maintenance, superior reliability and quality white light that make them the most widely used power LEDs today. Using the information in this document you can start designing applications to your unique specifications. LUXEON Rebel General Purpose White LEDs • Deliver more usable light and higher flux density • Optimize applications to reduce size and cost • Tightly pack the LEDs for mixing • Engineer more robust applications • Utilize standard FR4 PCB technology • Simplify manufacturing through the use of surface mount technology • Recognized under the Component Recognition Program of Underwriters Laboratories Inc. UL listing E327436. LUXEON® Rebel General Purpose White Portfolio

Open the catalog to page 1

LUXEON Rebel General Purpose Datasheet DS64 20110428 3 Product Nomenclature LUXEON Rebel is tested and binned at 350 mA, with current pulse duration of 20 ms. All characteristic charts where the thermal pad is kept at constant temperature (25ºC typically) are measured with current pulse duration of 20 ms. Under these conditions, junction temperature and thermal pad temperature are the same. The part number designation is explained as follows: L X M L - A B C D - E F G H Where: A — designates radiation pattern (value P for Lambertian) B — designates color (W = White) C — designates tint...

Open the catalog to page 3

LUXEON Rebel General Purpose Datasheet DS64 20110428 4 Luminous Flux Characteristics for LUXEON Rebel, Thermal Pad Temperature=25°C Table 1. Performance at Test Current Typical Performance at Indicated Current Color Part Number Minimum Luminous Test Typical Luminous Drive Flux (lm) Current Flux (lm) Current FV [1] (mA) FV [2] (mA) LXML-PWC1-0080 80 350 145 700 LXML-PWC1-0090 90 350 160 700 LXML-PWC1-0100 100 350 180 700 LXML-PWC1-0120 120 350 220 700 LXML-PWN1-0080 80 350 145 700 LXML-PWN1-0090 90 350 160 700 LXML-PWN1-0100 100 350 180 700 LXML-PWN1-0120 120 350 220 700 LXML-PWW1-0050 50...

Open the catalog to page 4

LUXEON Rebel General Purpose Datasheet DS64 20110428 5 Lambertian LUXEON Rebel at Test Current [1]Thermal Pad Temperature = 25°C Table 2. Typical Total Typical Included Viewing Color Temperature [2], [3] Angle [5] Angle [6] CCT (degrees) (degrees) Color [6], [7] Min. Typ. Max. u0.90V [4] 2u 1/2 Cool-White 4500K 6500K 10,000K 160 120 Neutr al-White 3500K 4100K 4500K 160 120 W arm-White 2540K 3100K 3500K 160 120 Notes for Table 2: 1. Test current is 350 mA for all LXML-PWx1-0xxx products.2. CCT ±5% tester tolerance.3. Typical CRI (Color Rendering Index) for cool-white is 70, neutral-white is...

Open the catalog to page 5

LUXEON Rebel General Purpose Datasheet DS64 20110428 6 Electrical Characteristics at 350 mA for LUXEON Rebel, Part Numbers LXML-PWx1-0xxx, Thermal Pad Temperature = 25ºC Table 3. Typical Temperature Typical Thermal Coefficient of Resistance Forward Voltage Vf [1] Forward Voltage [2] Junction to (V) (mV/°C) Thermal Pad (°C/W) Color Min. Typ. Max. DVf / DTJ Ru J-C Cool-White 2.55 3.00 3.99 -2.0 to -4.0 10 Neutr al-White 2.55 3.00 3.99 -2.0 to -4.0 10 W arm-White 2.55 3.00 3.99 -2.0 to -4.0 10 Notes for Table 3: 1. Philips Lumileds maintains a tolerance of ±0.06V on forward voltage...

Open the catalog to page 6

LUXEON Rebel General Purpose Datasheet DS64 20110428 7 Absolute Maximum Ratings Table 5. Parameter Cool-White/Neutral-White/Warm-White DC Forward Current (mA) 1000 P eak Pulsed Forward Current (mA) 1000 A verage Forward Current (mA) 1000 ESD Sensitivity < 8000V Human Body Model (HBM) Class 2 JESD22-A114-B < 400V Machine Model (MM) Class 2 JESD22-A115-B LED Junction Temperature [1] 150°C Oper ating Case Temperature at 350 mA -40°C - 135°C Stor age Temperature -40°C - 135°C Solder ing Temperature JEDEC 020c 260°C Allo wable Reflow Cycles 3 Autocla ve Conditions 121°C at 2 ATM 100% Relative...

Open the catalog to page 7

LUXEON Rebel General Purpose Datasheet DS64 20110428 8 Table 7. Profile Feature Lead Free Assembly Average Ramp-Up Rate (Tsmax to Tp) 3°C / second max Preheat Temperature Min (Tsmin) 150°C Preheat Temperature Max (Tsmax) 200°C Preheat Time (tsmin to tsmax) 60 - 180 seconds Temperature (TL) 217°C Time Maintained Above Temperature TL (tL) 60 - 150 seconds Peak / Classification Temperature (TP) 260°C Time Within 5°C of Actual Peak Temperature (tP) 20 - 40 seconds Ramp - Down Rate 6°C / second max Time 25°C to Peak Temperature 8 minutes max Notes for Table 7: - All temperatures refer to the...

Open the catalog to page 8

LUXEON Rebel General Purpose Datasheet DS64 20110428 9 Mechanical Dimensions Figure 1. Package outline drawing. Notes for Figure 1:- Do not handle the device by the lens—care must be taken to avoid damage to the lens or the interior of the device that can be damaged by excessive force to the lens.- Drawings not to scale.- All dimensions are in millimeters.- The Thermal Pad is electrically isolated from the Anode and Cathode contact pads. 3.17 2.931.671.381.671.384.614.372.101.850.680.520.110.052.612.490.140.06R1.261.140.730.611.831.712.862.741.861.740.460.34

Open the catalog to page 9

LUXEON Rebel General Purpose Datasheet DS64 20110428 10 Pad Configuration Note for Figure 2: - The Thermal Pad is electrically isolated from the Anode and Cathode contact pads.Solder Pad Design Note for Figure 3: - The photograph below shows the recommended LUXEON Rebel layout on Printed Circuit Board (PCB). This design easily achieves a thermal resistance of 7K/W. - Application Brief AB32 provides extensive details for this layout. In addition, the .dwg files are available at www.philipslumileds.com and www.philipslumileds.cn.com. Figure 2. Pad configuration. Figure 3. Solder pad layout. 3...

Open the catalog to page 10

LUXEON Rebel General Purpose Datasheet DS64 20110428 11 Wavelength Characteristics Cool-White at Test CurrentThermal Pad Temperature = 25°C Neutral-White at Test CurrentThermal Pad Temperature = 25ºC 0.81Distribution020.40.60.81veSpectral Power Distribution00.20.40.60.81350400450500550600650700750800Wavelength (nm)RelativeSpectral Distribution Figure 4a. Cool-white color spectrum of typical CCT part, integrated measurement 0.81Distribution0.20.40.60.81veSpectral Power Distribution00.20.40.60.81350400450500550600650700750800Wavelength (nm)RelativeSpectral Distribution Figure 4b....
