SuperFlux LEDs
14Pages

{{requestButtons}}

Catalog excerpts

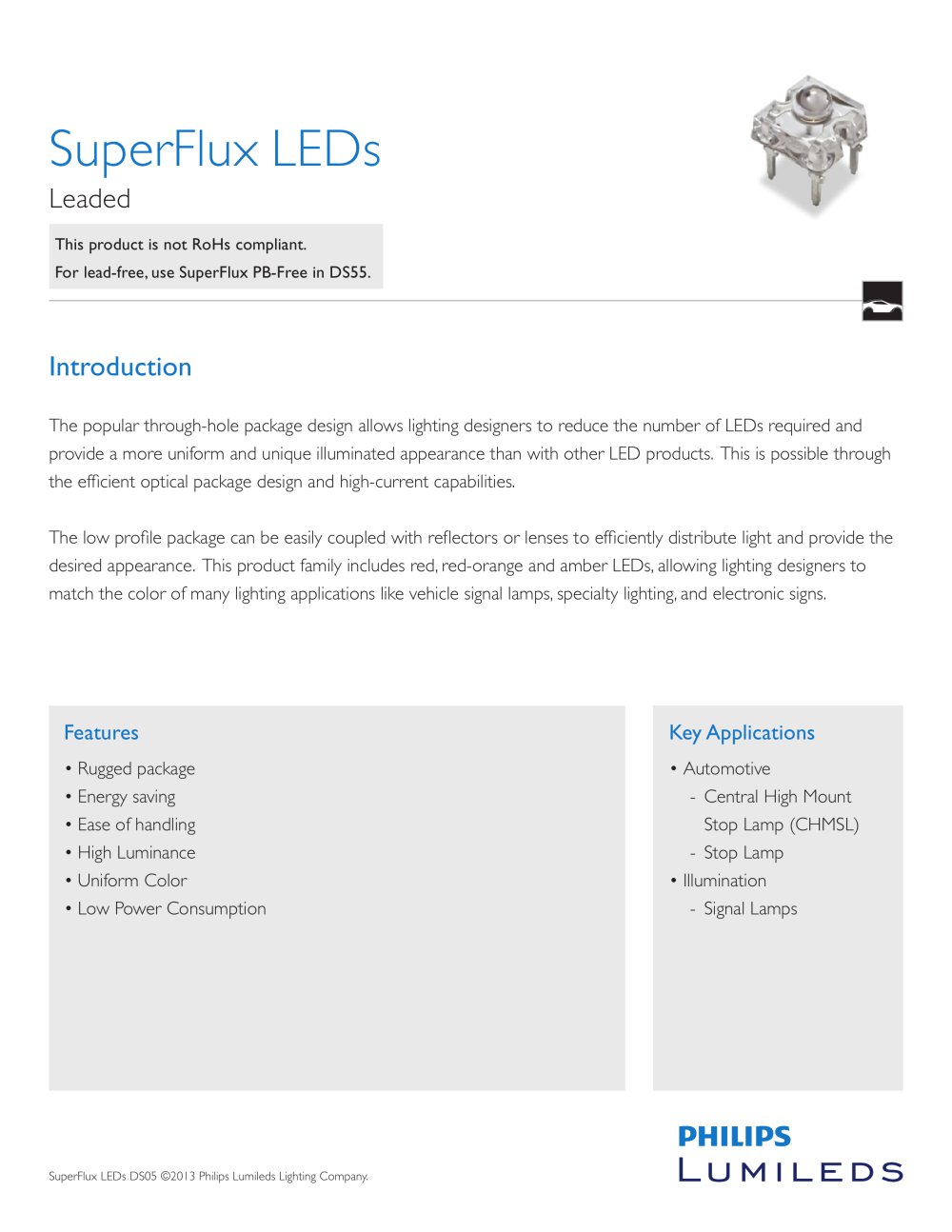

SuperFlux LEDs - 1

This product is not RoHs compliant. For lead-free, use SuperFlux PB-Free in DS55. The popular through-hole package design allows lighting designers to reduce the number of LEDs required and provide a more uniform and unique illuminated appearance than with other LED products. This is possible through the efficient optical package design and high-current capabilities. The low profile package can be easily coupled with reflectors or lenses to efficiently distribute light and provide the desired appearance. This product family includes red, red-orange and amber LEDs, allowing lighting designers to match the color of many lighting applications like vehicle signal lamps, specialty lighting, and electronic signs. • Rugged package • Energy saving • High Luminance • Uniform Color - Central High Mount Stop Lamp (CHMSL) - Stop Lamp - Signal Lamps SuperFlux LEDs DS05 ©201 3 Philips Lumileds Lighting Company

Open the catalog to page 1
SuperFlux LEDs - 2

Table of Contents Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

Open the catalog to page 2
SuperFlux LEDs - 3

Selection Guide Table 1. Device Type Overview Typical Total Included Angle [1] (degrees) u0.90V u0.90 V is the included angle at which 90% of the total luminous flux is captured. Absolute Maximum Ratings Table 2. Parameter Power Dissipation Operating Temperature Range Storage Temperature Range High Temperature Chamber Derate as shown in Figures 4. SuperFlux LEDs Datasheet DS05 20131028 ©2013 Philips Lumileds Lighting Company.

Open the catalog to page 3
SuperFlux LEDs - 4

Mechanical Dimensions RXOO MXOO t DXOQ BX Figure I. Package outline drawing. SuperFlux LEDs Datasheet DS05 201 31028 ©201 3 Philips Lumileds Lighting Company

Open the catalog to page 4
SuperFlux LEDs - 5

Optical Characteristics Optical Characteristics at TA = 25°C, IF = 70 mA, RuJ-A = 200°C/W Table 3. LED Color Device Type Typ. Peak Wavelength lpeak (nm) Typ. Dominant Wavelength ldom (nm) [1] Typical Total Included Angle [2] (degrees) u0.90V Luminous Intensity Total Flux Iv(cd)/Fv(lm) Viewing Angle (degrees) 2u 1/2 The dominant wavelength is derived from the CIE Chromaticity Diagram and represents the perceived color of the device. u0.90 V is the included angle at which 90% of the total luminous flux is captured. SuperFlux LEDs Datasheet DS05 20131028 ©2013 Philips Lumileds Lighting Company.

Open the catalog to page 5
SuperFlux LEDs - 6

Electrical Characteristics Electrical Characteristics at TA = 25°C Table 4. Reverse Breakdown @ VR (Volts) [1] @ IR = 100 µA Forward Voltage Vf [1] (Volts) IF = 70 mA (HPWT) Typical Thermal Resistance (°C/W) Ru J-PIN Operation in reverse bias is not recommended. ts is the time constant, et/ts. SuperFlux LEDs Datasheet DS05 20131028 ©2013 Philips Lumileds Lighting Company.

Open the catalog to page 6
SuperFlux LEDs - 7

Relative Spectral Power Distribution Figure 2. Relative intensity vs. wavelength. Forward Voltage (V) Figure 3. Forward current vs. forward voltage. SuperFlux LEDs Datasheet DS05 20131028 ©2013 Philips Lumileds Lighting Company.

Open the catalog to page 7
SuperFlux LEDs - 8

Normalized Luminous Flux Forward Current (mA) Figure 4. Typical luminous flux vs. forward current for Superflux. SFX Max DC (RO)-2013 EDITS SEPT 26 Max DC Forward Current For Superflux (Red-Orange) 300 C/W, above max Ta 400 C/W, above max Ta 500 C/W, above max Ta 600 C/W, above max Ta Ambient Temperature - degrees C Figure 5. HPWT -xxxx relative luminous flux vs. forward current. SuperFlux LEDs Datasheet DS05 20131028 ©2013 Philips Lumileds Lighting Company.

Open the catalog to page 8
SuperFlux LEDs - 9

Relative Intensity Junction Temperature Figure 6. Luminous flux vs. junction temperature for superflux. SuperFlux LEDs Datasheet DS05 20131028 ©2013 Philips Lumileds Lighting Company.

Open the catalog to page 9
SuperFlux LEDs - 10

Figures, Continued Off Axis Angle (degrees) Figure 7a. HPWT'Rxxx relative luminous intensity vs. off axis angle. Off Axis Angle (degrees) Figure 7b. HPWT-Mxxx relative luminous intensity vs. off axis angle. SuperFlux LEDs Datasheet DS05 201 31028 ©201 3 Philips Lumileds Lighting Company

Open the catalog to page 10
SuperFlux LEDs - 11

Relative Intensity Off Axis Angle (degrees) Figure 7c. HPWT -Bxxx relative luminous intensity vs. off axis angle. Relative Intensity Off Axis Angle (degrees) Figure 7d. HPWT -Dxxx relative luminous intensity vs. off axis angle. SuperFlux LEDs Datasheet DS05 20131028 ©2013 Philips Lumileds Lighting Company.

Open the catalog to page 11
SuperFlux LEDs - 12

Recommended Soldering Conditions for Pb SuperFlux Time (Seconds) Figure 8. Recommended solder profile. Table 5. Solder Conditions Preheat Temperatue (ºC) Peak Profile Temperature (ºC) Solder Time Above 217ºC All top preheat stages are to be turned off so that the LED body is not directly exposed to the heat source. Profile taken on the LED lead at the bottom of the PCB. Single wave soldering is recommended. Soldering at the lowest possible peak profile temperature and shortest solder time above 217ºC are preferable to the LED. The pre-heat temperature ramping rate shall not more than 3ºC...

Open the catalog to page 12
SuperFlux LEDs - 13

Product Binning and Labeling Table 6. Luminous Flux bins for Red, Red-Orange and Amber @ 70 mA Bin Code Minimum Luminous Flux Bin Maximum Luminous Flux Bin Total Luminous Flux as measured with an integrating sphere after the device has stabilized. Tj ~ 60°C. Table 7. Dominant Wavelength Bins LED Color Minimum Dominant Wavelength (nm) Maximum Dominant Wavelength (nm) Table 8. Forward Voltage Bins, Red, Red-Orange and Amber @ 70 mA Bin Code SuperFlux LEDs Datasheet DS05 20131028 ©2013 Philips Lumileds Lighting Company.

Open the catalog to page 13
SuperFlux LEDs - 14

Who We Are Philips Lumileds focuses on one goal: Creating the world’s highest performing LEDs. The company pioneered the use of solid-state lighting in breakthrough products such as the first LED backlit TV, the first LED flash in camera phones, and the first LED daytime running lights for cars. Today we offer the most comprehensive portfolio of high quality LEDs and uncompromising service. Philips Lumileds brings LED’s qualities of energy efficiency, digital control and long life to spotlights, downlights, high bay and low bay lighting, indoor area lighting, architectural and specialty...

Open the catalog to page 14
