SnapLED Six LED Multi-Function Signal

SnapLED Six LED Multi-Function Signal
5Pages

Catalog excerpts

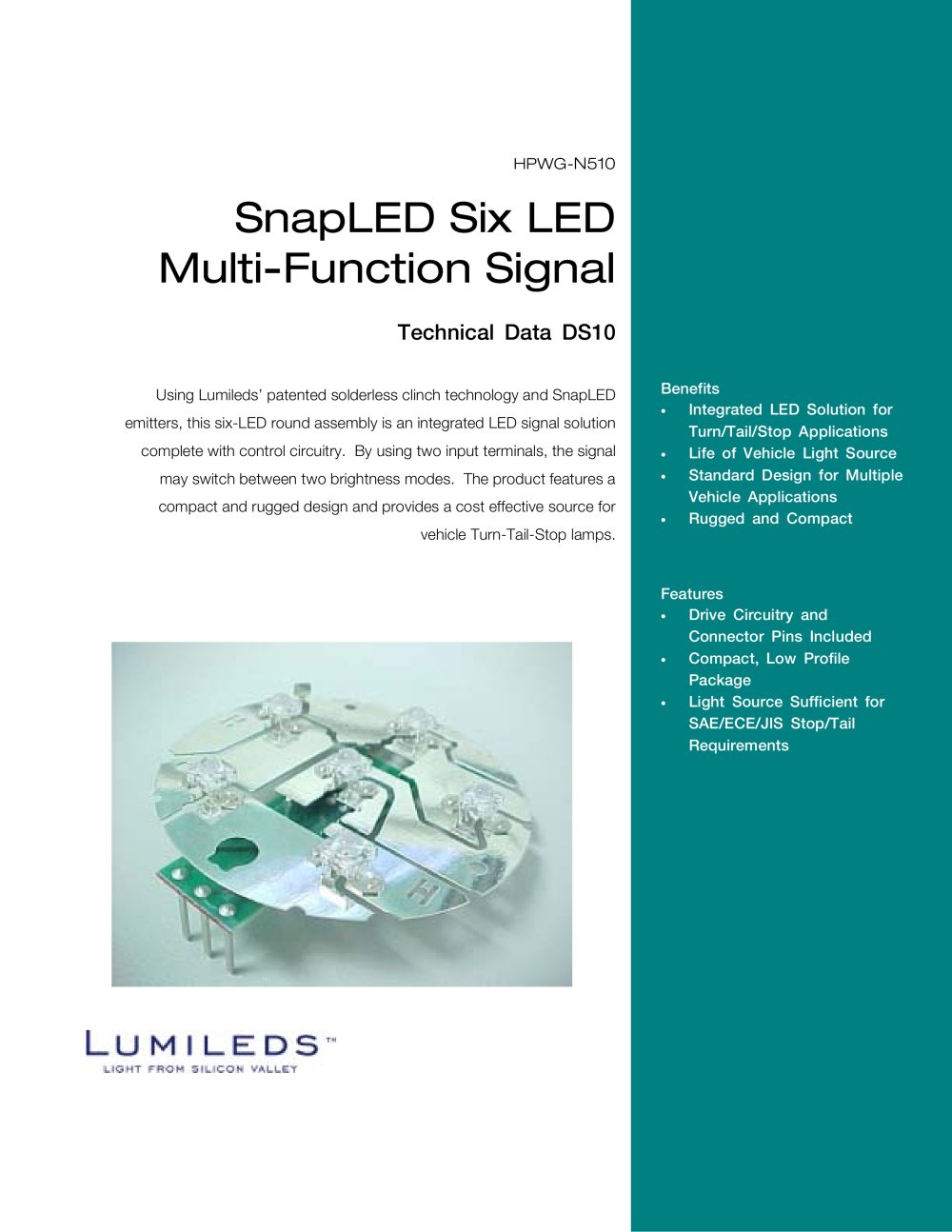

SnapLED Six LED Multi-Function Signal - 1

HPWGN510 SnapLED Six LED MultiFunction Signal Technical Data DS10 Using Lumileds’ patented solderless clinch technology and SnapLED emitters, this sixLED round assembly is an integrated LED signal solution complete with control circuitry. By using two input terminals, the signal may switch between two brightness modes. The product features a compact and rugged design and provides a cost effective source for vehicle TurnTailStop lamps. Benefits • Integrated LED Solution for Turn/Tail/Stop Applications • Life of Vehicle Light Source • Standard Design for Multiple Vehicle Applications • Rugged and Compact Features • Drive Circuitry and Connector Pins Included • Compact, Low Profile Package • Light Source Sufficient for SAE/ECE/JIS Stop/Tail Requirements

Open the catalog to page 1

SnapLED Six LED Multi-Function Signal 2 Document #: DS10 (06/24/03) Optical & Electrical Characteristics Part Number LED Color Voltage (V) Mode Total flux[1,2,3] ÖV (lm) Power Consumption (W) Min. Max. Min. Max. Stop 39.5 81.3 2.8 3.5 12.8 Tail 3.7 7.8 0.19 0.23 Stop 41.8 86.1 3.3 4.1 HPWG-N510 Red- Orange 13.5 Tail 4.1 8.6 0.22 0.25 Color Characteristics Part Number Dominant Wavelength[1,2] ëd (nm) Min. Max. HPWG-N510 611 634 Circuit Schematic Notes: 1. öv is the total steady state flux of the assembly after thermal stabilization. 2. The thermal resistance assumed is...

Open the catalog to page 2

SnapLED Six LED Multi-Function Signal 3 Document #: DS10 (06/24/03) Outline Drawing Notes: 1. See SnapLED 150 datasheet for emitter (HPWS-TH00) specifications. 2. Dimensions are in millimeters. 3. Dimensions without tolerances are nominal.

Open the catalog to page 3

SnapLED Six LED Multi-Function Signal 4 Document #: DS10 (06/24/03) Absolute Maximum Ratings Parameter HPWG-N510 Units DC Input Operating Voltage[1] 16 V Power Dissipation (Stop) 3.5 (@12.8V) W Power Dissipation (Stop) 4.1 (@13.5V) W Reverse Voltage (Stop & Tail) 500 (@IR = 200 ìA) V Operating Temperature Range[2] -40 to +85 (@12.8V) °C Operating Temperature Range[2] -40 to +85 (@13.5V) °C Operating Temperature Range[2] -40 to +25 (@15.5V) °C Storage Temperature Range -55 to +100 °C LED Junction Temperature 125 °C Notes: 1. 16V operation is allowed at Tambient=25°C only. 2. Temperature...

Open the catalog to page 4

SnapLED Six LED Multi-Function Signal 5 Document #: DS10 (06/24/03) Company Information Lumileds is a worldclass supplier of Light Emitting Diodes (LEDs) producing billions of LEDs annually. Lumileds is a fully integrated supplier, producing core LED material in all three base colors (Red, Green, Blue) and White. Lumileds has R&D development centers in San Jose, California and Best, The Netherlands. Production capabilities in San Jose, California and Malaysia. Lumileds is pioneering the highflux LED technology and bridging the gap between solidstate LED technology and the lighting world....
