SnapLED High Mount Stop Light Array
5Pages

{{requestButtons}}

Catalog excerpts

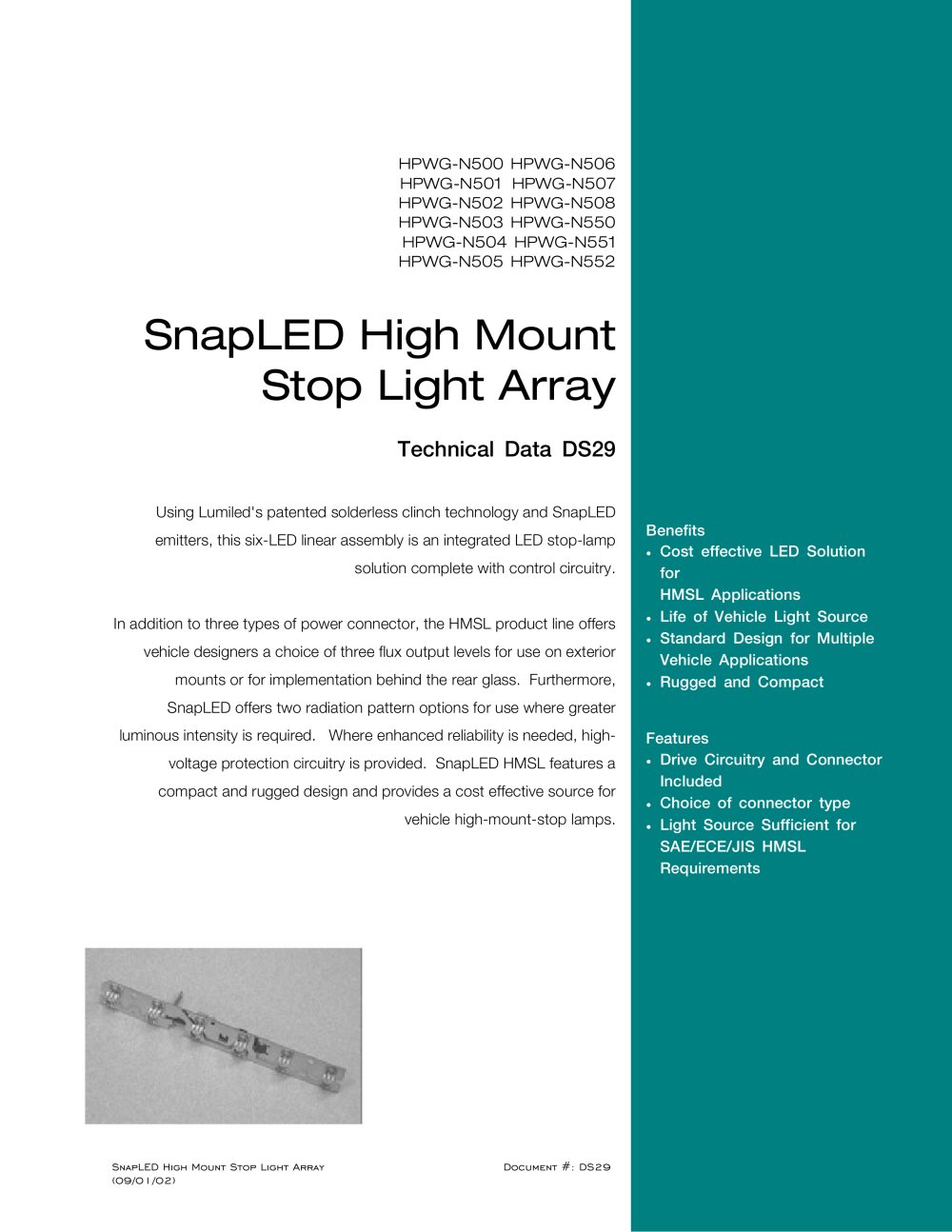

SnapLED High Mount Stop Light Array - 1

Features • Drive Circuitry and Connector Included • Choice of connector type • Light Source Sufficient for SAE/ECE/JIS HMSL Requirements • Rugged and Compact • Standard Design for Multiple Vehicle Applications • Life of Vehicle Light Source • Cost effective LED Solution for HMSL Applications Benefits HPWGN500 HPWGN506 HPWGN501 HPWGN507 HPWGN502 HPWGN508 HPWGN503 HPWGN550 HPWGN504 HPWGN551 HPWGN505 HPWGN552 SnapLED High Mount Stop Light Array Technical Data DS29 Using Lumiled's patented solderless clinch technology and SnapLED emitters, this sixLED linear assembly is an integrated LED stoplamp solution complete with control circuitry. In addition to three types of power connector, the HMSL product line offers vehicle designers a choice of three flux output levels for use on exterior mounts or for implementation behind the rear glass. Furthermore, SnapLED offers two radiation pattern options for use where greater luminous intensity is required. Where enhanced reliability is needed, high voltage protection circuitry is provided. SnapLED HMSL features a compact and rugged design and provides a cost effective source for vehicle highmountstop lamps. SnapLED High Mount Stop Light Array Document #: DS29 (09/01/02)

Open the catalog to page 1
SnapLED High Mount Stop Light Array - 2

Selection Guide (all lamps are TS AlInGaP Red-Orange and voltage is 12.8 volts) Total flux ÖV (lm)[1,2] Power Input (W) Part Number Description Min. Max. Min. Max. HPWG-N500 HMSL with pin connector 19.0 30.0 1.6 1.9 HPWG-N501 HMSL with pin connector 28.0 45.0 3.1 3.5 HPWG-N502 HMSL with pin connector 36.0 58.0 3.1 3.5 HPWG-N503 HMSL with varistor & hole connector 19.0 30.0 1.6 1.9 HPWG-N504 HMSL with varistor & hole connector 28.0 45.0 3.1 3.5 HPWG-N505 HMSL with varistor & hole connector 36.0 58.0 3.1 3.5 HPWG-N506 HMSL with wire connector 19.0 30.0 1.6 1.9 HPWG-N507 HMSL with wire...

Open the catalog to page 2
SnapLED High Mount Stop Light Array - 3

Outline Drawing SnapLED High Mount Stop Light Array Document #: DS29 (09/01/02) Side View Notes: 1. See HPWS-TH00 or HPWT-TH00 datasheet for emitter specifications. 2. Dimensions are in millimeters (inches). 3. Dimensions without tolerances are nominal.

Open the catalog to page 3
SnapLED High Mount Stop Light Array - 4

Absolute Maximum Ratings at TA = 25°C Parameter HPWG-N5xx Units DC Input Operating Voltage[1] 16 V Power Dissipation 7.0 W Reverse Voltage (IR = 200 ìA) 500 V Operating Temperature Range(12.8V-13.5V) [2] -40 to +85 °C Storage Temperature Range -55 to +100 °C LED Junction Temperature 125 °C High Temperature Chamber 125 (2 hrs.) °C Optical and Electrical Characteristics Operational Forward Voltage VF (Volts) Color Dominant Wavelength ëd (nm) [1,2] Device type Min. Max. Min. Max. HPWG-N50x 9 16 611 634 SnapLED High Mount Stop Light Array Document #: DS29 (09/01/02) Notes: 1. 16V operation is...

Open the catalog to page 4
SnapLED High Mount Stop Light Array - 5

Company Information Lumileds is a worldclass supplier of Light Emitting Diodes (LEDs) producing billions of LEDs annually. Lumileds is a fully integrated supplier, producing core LED material in all three base colors (Red, Green, Blue) and White. Lumileds has R&D development centers in San Jose, California and Best, The Netherlands. Production capabilities in San Jose, California and Malaysia. Lumileds is pioneering the highflux LED technology and bridging the gap between solidstate LED technology and the lighting world. Lumileds is absolutely dedicated to bringing the best and brightest...

Open the catalog to page 5
