SnapLED 70
5Pages

Catalog excerpts

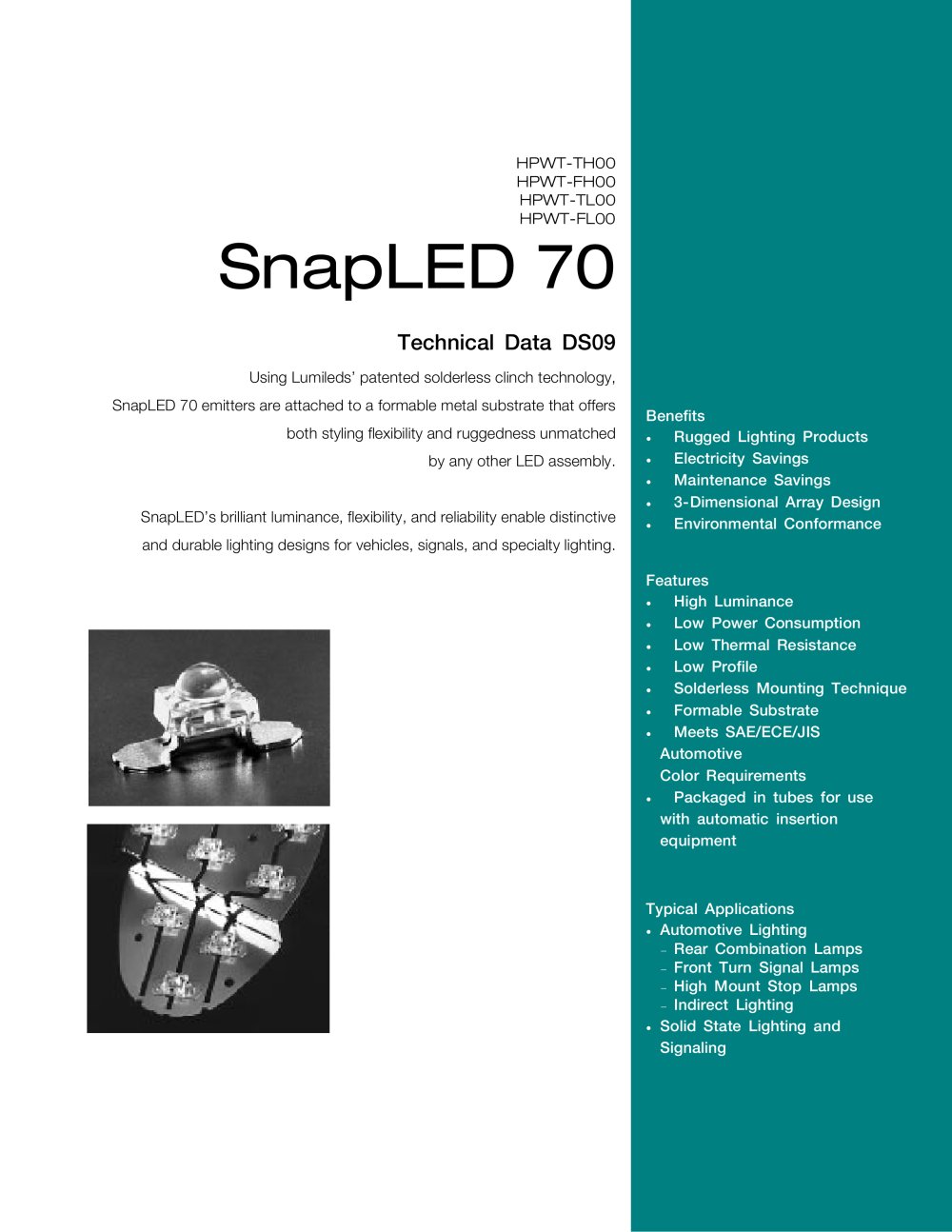

HPWTTH00 HPWTFH00 HPWTTL00 HPWTFL00 SnapLED 70 Benefits • • • • • • • • • • • • • • - - - - • Rugged Lighting Products Electricity Savings Maintenance Savings 3-Dimensional Array Design Environmental Conformance Features High Luminance Low Power Consumption Low Thermal Resistance Low Profile Solderless Mounting Technique Formable Substrate Meets SAE/ECE/JIS Automotive Color Requirements Packaged in tubes for use with automatic insertion equipment Typical Applications Automotive Lighting Rear Combination Lamps Front Turn Signal Lamps High Mount Stop Lamps Indirect Lighting Solid State Lighting and Signaling Technical Data DS09 Using Lumileds’ patented solderless clinch technology, SnapLED 70 emitters are attached to a formable metal substrate that offers both styling flexibility and ruggedness unmatched by any other LED assembly. SnapLED’s brilliant luminance, flexibility, and reliability enable distinctive and durable lighting designs for vehicles, signals, and specialty lighting.

Open the catalog to page 1

Outline Drawings Selection Guide Part Number LED Color Total flux ÖV (lm) @ 70 mA[1] Min. Total Included angle è0.90 V (Degrees) [2] Typ. HPWT-TH00-00000 TS AlInGaP Red-Orange 3.0 120 HPWT-FH00-00000 70 HPWT-TL00-00000 TS AlInGaP Amber 1.5 120 HPWT-FL00-00000 70 Absolute Maximum Ratings at TA = 25°C Parameter HPWT-Tx00/Fx00 Units DC Forward Current [1,2] 70 mA Power Dissipation 221 mW Reverse Voltage (IR = 100 ìA) 10 V Operating Temperature Range -40 to +100 °C Storage Temperature Range -55 to +100 °C High Temperature Chamber 125 (2 hrs.) °C LED Junction Temperature 125 °C SnapLED 70...

Open the catalog to page 2

Optical Characteristics at TA = 25°C, IF = 70 mA, RèJ-A = 200°C/W Device type Total flux ÖV (lm) [1] Min. Peak wavelength ëpeak (nm) Typ. Color, Dominant Wavelength ëD (nm) [2] Typ. Total Included Angleè0.90 V (degrees) [3] Typ. Ratio of Luminous Intensity to Total Flux Iv(cd)/Öv(lm) Typ. Viewing Angle 2è 1/2 (Degrees) Typ. HPWT-TH00 3.0 630 621 120 0.6 85 HPWT-FH00 70 2.0 30 HPWT-TL00 1.5 596 594 120 0.6 85 HPWT-FL00 70 2.0 30 Electrical Characteristics at TA = 25°C Forward Voltage VF (Volts) @ IF = 70 mA Reverse Breakdown VR (Volts) @ IR = 100 ìA Capacitance C (pF) VF = 0, F = 1MHz....

Open the catalog to page 3

Figures SnapLED 70 Technical Data 4 Document #: DS09 (08/05) Figure 6b. HPWT-Fx00 Relative Intensity vs. Off Axis Angle. 0 10 20 30 40 50 60 70 0 20 40 60 80 100 AMBIENT TEMPERATURE (C) MAXIMUM DC CURRENT (mA) Rth(j-a) = 300 C/W Rth(j-a) = 600 C/W Rth(j-a) = 500 C/W Rth(j-a) = 400 C/W Figure 3. HPWT-xx00 Maximum DC Forward Current vs. Ambient Temperature. Figure 6a. HPWT-Tx00 Relative Intensity vs. Off Axis Angle. Figure 5. HPWT-xx00 Percent Total Luminous Flux vs. Total Included Angle. Figure 4. HPWT-xx00 Relative Luminous Flux vs. Forward Current. Figure 2. Forward Current vs. Forward...

Open the catalog to page 4

Company Information SnapLED™ is developed, manufactured and marketed by Lumileds Lighting, LLC. Lumileds is a worldclass supplier of Light Emitting Diodes (LEDs) producing billions of LEDs annually. Lumileds is a fully integrated supplier, producing core LED material in all three base colors (Red, Green, Blue) and White. Lumileds has R&D development centers in San Jose, California and Best, The Netherlands and production capabilities in San Jose, California and Malaysia. Lumileds is pioneering highflux LED technology and bridging the gap between solid state LED technology and the lighting...
