SnapLED 150
15Pages

Catalog excerpts

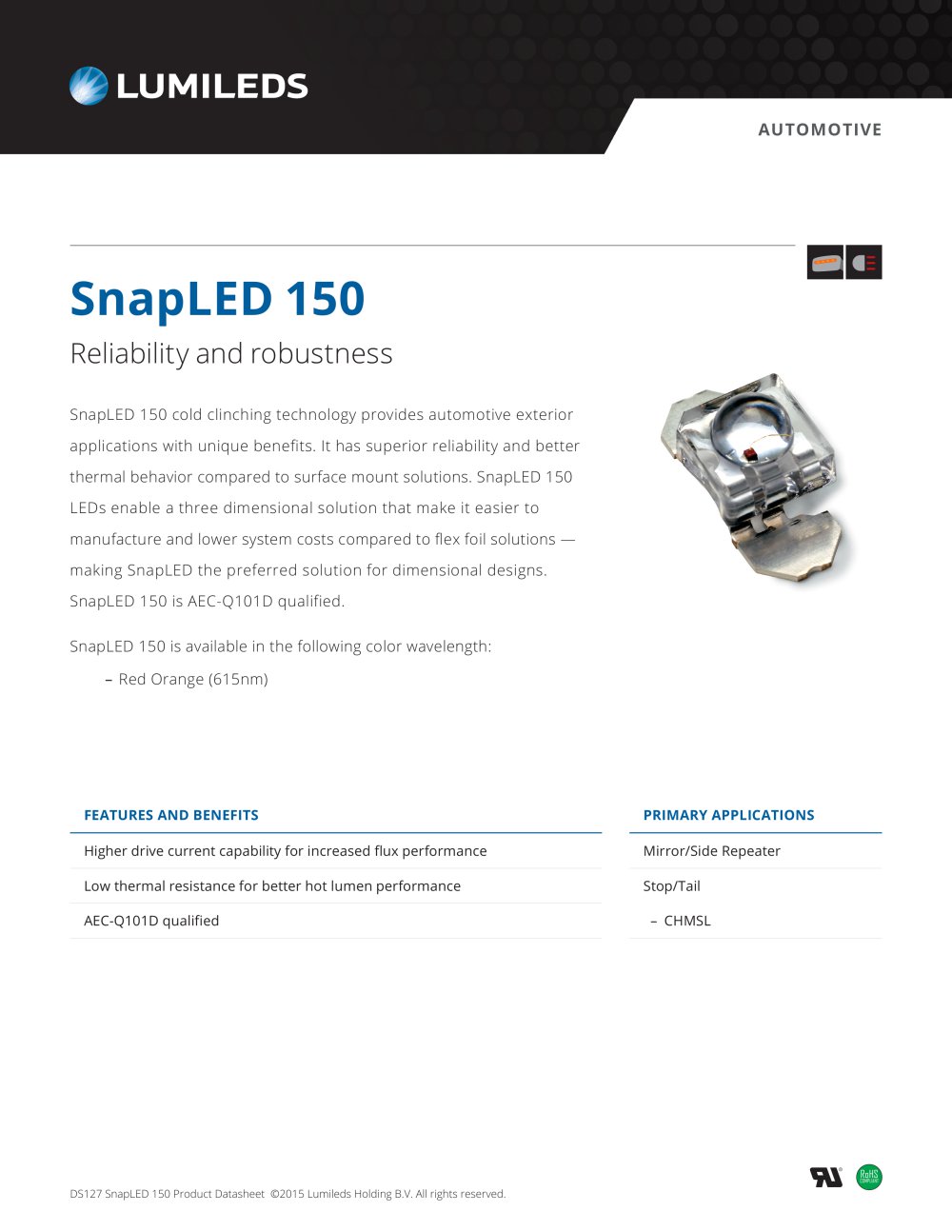

SnapLED 150 cold clinching technology provides automotive exterior applications with unique benefits. It has superior reliability and better thermal behavior compared to surface mount solutions. SnapLED 150 LEDs enable a three dimensional solution that make it easier to manufacture and lower system costs compared to flex foil solutions — making SnapLED the preferred solution for dimensional designs. SnapLED 1 50 is available in the following color wavelength: FEATURES AND BENEFITS PRIMARY APPLICATIONS Higher drive current capability for increased flux performance Mirror/Side Repeater Low thermal resistance for better hot lumen performance Stop/Tail DS127 SnapLED 150 Product Datasheet ©2015 Lumileds Holding B.V. All rights reserved.

Open the catalog to page 1

Table of Contents General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Product Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Part Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Environmental Compliance . . . . . . . . . . . . ....

Open the catalog to page 2

General Product Information Product Test Conditions SnapLED 150 LEDs are tested and binned using a 20ms monopulse (MP) at 150mA drive current, junction temperature, Tj, of 25ºC. Part Number Nomenclature Part numbers for SnapLED 150 follow the convention below: A 1 S S – B C C C D E 5 F G H J 0 0 Where: B – designates color (O=Red Orange) C C C – designates minimum dominant wavelength (612=612nm) D – designates the lens type (N=Narrow, W=Wide) – designates the binning condition (1=single binning 150mA, 8=dual binning 150mA and 5mA) – designates minimum flux bin (See Product Bin and Labeling...

Open the catalog to page 3

Performance Characteristics Product Selection Guide Table 1. Product selection for SnapLED 150 at 20ms MP, 150mA, Tj=25°C. COLOR Part Number Notes for Table 1: 1. Dominant wavelength is derived from the CIE 1931 Chromaticity diagram and represents perceived color. 2. Lumileds maintains a tolerance of ±1nm for dominant wavelength measurements. Optical Characteristics Table 2. Typical optical characteristics for SnapLED 150 at 20ms MP, 150mA, Tj=25°C. Part Number Typical Total Included Angle [1] θ0.90V Typical Viewing Angle [2] 2θ1/2 Notes for Table 2: 1. Total angle at which 90% of total...

Open the catalog to page 4

Absolute Ratings Table 4. Absolute ratings for SnapLED 150. Parameter Minimum DC Forward Current Maximum DC Forward Current Maximum Junction Temperature Operating Case Temperature at Test Current [1] Operating Case Temperature at Maximum Current [1] Storage Temperature Soldering Temperature Allowable Reflow Cycles Notes for 4: 1. Proper current derating must be observed to maintain junction temperature below the maximum, so that the LED is maintained below the maximum rated operating case temperature. SnapLEDs driven at or above the maximum rated operating case temperature may have shorter...

Open the catalog to page 5

Light Output Characteristics Figure 2: Typical normalized light output vs. junction temperature for SnapLED 150 at 20ms MP, 150mA. Figure 3: Typical normalized light output vs. forward current for SnapLED 150 at Tj=25°C. DS127 SnapLED 150 Product Datasheet 20150528 ©2015 Lumileds Holding B.V. All rights reserved.

Open the catalog to page 6

Forward Current Characteristics Figure 4: Typical forward current vs. forward voltage for SnapLED 150 at Tj=25°C. Radiation Pattern Characteristics Angle [degrees] Figure 5a: Typical radiation pattern for SnapLED 150 narrow lens at 20ms MP, 150mA. DS127 SnapLED 150 Product Datasheet 20150528 ©2015 Lumileds Holding B.V. All rights reserved.

Open the catalog to page 7

Angle [degrees] Figure 5b: Typical radiation pattern for SnapLED 150 wide lens at 20ms MP, 150mA. Operating Limits Characteristics Figure 6: Maximum forward current vs. case temperature for SnapLED 150. DS127 SnapLED 150 Product Datasheet 20150528 ©2015 Lumileds Holding B.V. All rights reserved.

Open the catalog to page 8

Product Bin and Labeling Definitions Designing with SnapLED Flux bins supportable for car programs depend on product color and program start- and end-of-production date. Flux roadmaps by year and product color are maintained and available from the sales representative. Please contact local sales representative to request the flux bin range with best supportability for program timing. Decoding Product Bin Labeling In the manufacturing of semiconductor products, there are variations in performance around the average values given in the technical datasheets. For this reason, Lumileds bins the...

Open the catalog to page 9

Table 5b. Luminous flux bin definitions for SnapLED 150 at 20ms MP, 5mA, Tj=25°C. Luminous Flux (lm) Notes for Table 5b: 1. Lumileds maintains a tolerance of ±10% on luminous flux measurements. 2. Applies to dual binning option only. Table 5c. Luminous flux bin pairing for SnapLED 150 at 20ms MP, 150mA and 5mA, Tj=25°C. Bin MINIMUM Luminous FLUX (lm) MAXIMUM Luminous FLUX (lm) Notes for Table 5c: 1. Applies to dual binning option only. Color Codes Table 6. Color code definitions for SnapLED 150 at 20ms MP, 150mA, Tj=25°C. DOMINANT WAVELENGTH (nm) 3 Notes for Table 6: 1. Lumileds maintains a...

Open the catalog to page 10

Table 7b. Forward voltage bin definitions for SnapLED 150 at 20ms MP, 5mA, Tj=25°C. Forward Voltage (V) Notes for Table 7b: 1. Lumileds maintains a tolerance of ±0.06V on forward voltage measurements. 2. Applies to dual binning option only. Table 7c. Forward voltage bin paring for SnapLED 150 at 20ms MP, 150mA and 5mA, Tj=25°C. MAXIMUM Forward VOLTAGE (V) MINIMUM Forward VOLTAGE (V) MINIMUM Forward VOLTAGE (V) MAXIMUM Forward VOLTAGE (V) Notes for Table 7b: 1. Lumileds maintains a tolerance of ±0.06V on forward voltage measurements. 2. Applies to dual binning option only. Mechanical...
