LUXEON® Rebel Phosphor-Converted (PC) Amber

LUXEON® Rebel Phosphor-Converted (PC) Amber
22Pages

Catalog excerpts

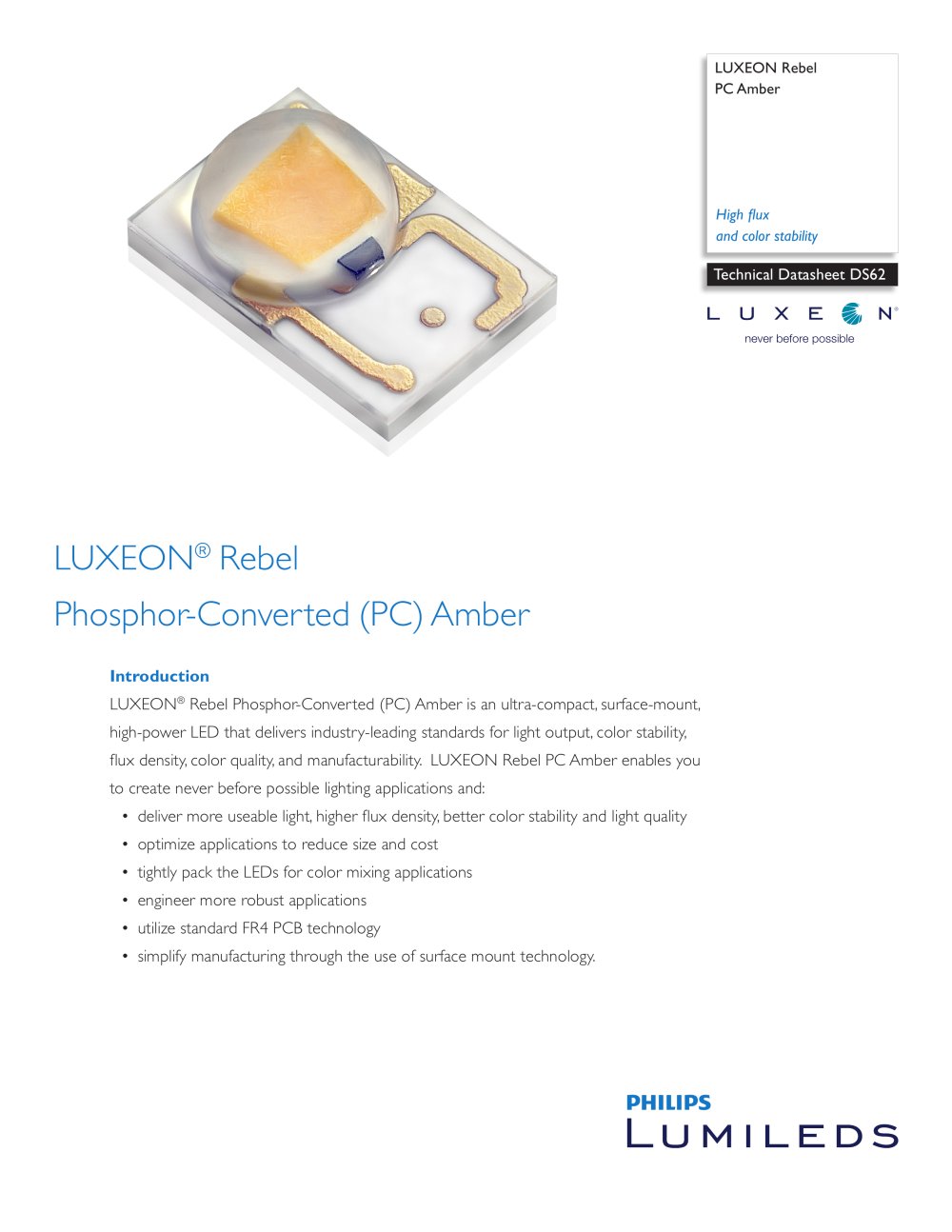

LUXEON® Rebel Phosphor-Converted (PC) Amber - 1

LUXEON® Rebel Phosphor-Converted (PC) Amber LUXEON Rebel PC Amber High flux and color stability Technical Datasheet DS62 Introduction LUXEON® Rebel Phosphor-Converted (PC) Amber is an ultra-compact, surface-mount, high-power LED that delivers industry-leading standards for light output, color stability, flux density, color quality, and manufacturability. LUXEON Rebel PC Amber enables you to create never before possible lighting applications and: • deliver more useable light, higher flux density, better color stability and light quality • optimize applications to reduce size and cost • tightly pack the LEDs for color mixing applications • engineer more robust applications • utilize standard FR4 PCB technology • simplify manufacturing through the use of surface mount technology.

Open the catalog to page 1

LUXEON® Rebel Phosphor-Converted (PC) Amber - 3

LUXEON Rebel PC Amber Datasheet DS62 (09/10/07) 3 Product Nomenclature LUXEON Rebel PC Amber is tested and binned at 350mA, with current pulse duration of 20ms. All characteristic charts where the thermal pad is kept at constant temperature (25ºC typically) are measured with current pulse duration of 20ms. The part number designation is explained as follows: L X M 2 - A B C D - E F G H Where: A — designates radiation pattern (value P for Lambertian) B — designates color (see LUXEON Rebel Binning and Labeling section) C — designates color variant (0 for direct colored variants) D —...

Open the catalog to page 3

LUXEON® Rebel Phosphor-Converted (PC) Amber - 4

LUXEON Rebel PC Amber Datasheet DS62 (09/10/07) 4 Flux CharacteristicsThermal Pad Temperature = 25°C Table 1. Performance at Test Current Typical Performance at Indicated Current Minimum Typical Typical Color Part Number Luminous Luminous Test Luminous Drive Flux Flux Current Flux Current (lm) [1] (lm) [1] (mA) (lm) [2] (mA) Amber LXM2-PL01-0000 [3] 50 70 350 130 700 Notes for Table 1: 1. Minimum luminous flux performance guaranteed within published operating conditions. Philips Lumileds maintains a tolerance of ± 6.5% on flux measurements.2. Typical luminous flux performance when device is...

Open the catalog to page 4

LUXEON® Rebel Phosphor-Converted (PC) Amber - 5

LUXEON Rebel PC Amber Datasheet DS62 (09/10/07) 5 LUXEON Rebel PC Amber at Test Current [1]Thermal Pad Temperature = 25°C Table 2. Typical Total Typical Typical Included Viewing Dominant Wavelength [2] lD Spectral Angle [4] Angle [5] Half-width[3] (degrees) (degrees) Color Min. Typ. Max. (nm)Dl1/2 u0.90V 2u 1/2 Amber [6] 587.8nm 590.6nm 595.4nm 80 160 120 Notes for Table 2: 1. Test current is 350 mA for all LXM2-Pxx1-0xxx products.2. Dominant wavelength is derived from the CIE 1931 Chromaticity diagram and represents the perceived color. Philips Lumileds tests and bins LUXEON Rebel PC Amber...

Open the catalog to page 5

LUXEON® Rebel Phosphor-Converted (PC) Amber - 6

LUXEON Rebel PC Amber Datasheet DS62 (09/10/07) 6 Electrical Characteristics at Test Current[1] Thermal Pad Temperature = 25ºC Table 3. Typical Temperature Typical Coefficient of Thermal Typical Forward Forward Resistance Forward Voltage Vf at Voltage Vf at Voltage [2] Junction to 350mA Drive Current [2] 700mA Drive (mV/°C) Thermal Pad Color Min. Typ. Max. Current [2] DVF / DTJ (°C/W) Ru J-C Amber 2.55 3.15 3.99 3.40 -2.0 to -4.0 10 Notes for Table 3: 1. Test current is 350 mA for all LXM2 - Pxx1 - 0xxx products.2. Philips Lumileds maintains a tolerance of ±0.06V on forward voltage...

Open the catalog to page 6

LUXEON® Rebel Phosphor-Converted (PC) Amber - 7

LUXEON Rebel PC Amber Datasheet DS62 (09/10/07) 7 Absolute Maximum Ratings Table 4. Parameter Value DC Forward Current (mA) 700 Peak Pulsed Forward Current (mA) 700 Average Forward Current (mA) 700 ESD Sensitivity < 8000V Human Body Model (HBM) Class 3A JESD22-A114-B < 400V Machine Model (MM) Class 3A JESD22-A115-B LED Junction Temperature 120°C Operating Case Temperature at 350mA -40°C - 110°C Soldering Temperature JEDEC 020c 260°C Allowable Reflow Cycles 3 Autoclave Conditions 121°C at 2 ATM 100% Relative Humidity for 96 Hours Maximum Reverse Voltage (Vr) See Note 2 Notes for Table 4: 1....

Open the catalog to page 7

LUXEON® Rebel Phosphor-Converted (PC) Amber - 8

LUXEON Rebel PC Amber Datasheet DS62 (09/10/07) 8 Table 6. Profile Feature Lead Free Assembly Average Ramp-Up Rate (Tsmax to Tp) 3°C / second max Preheat Temperature Min (Tsmin) 150°C Preheat Temperature Max (Tsmax) 200°C Preheat Time (tsmin to tsmax) 60 - 180 seconds Time Maintained Above Temperature TL (tL) 217°C Time Maintained Above Time (tL) 60 - 150 seconds Peak / Classification Temperature (TP) 260°C Time Within 5°C of Actual Peak Temperature (tP) 20 - 40 seconds Ramp-Down Rate 6°C / second max Time 25°C to Peak Temperature 8 minutes max Note for Table 6: 1. All temperatures refer to...

Open the catalog to page 8

LUXEON® Rebel Phosphor-Converted (PC) Amber - 9

LUXEON Rebel PC Amber Datasheet DS62 (09/10/07) 9 Mechanical Dimensions Figure 1. Package Outline Drawing. Notes for Figure 1: 1. Do not handle the device by the lens—care must be taken to avoid damage to the lens or the interior of the device that can be damaged by excessive force to the lens.2. Drawings not to scale.3. All dimensions are in millimeters.4. All dimensions without tolerances are for reference only.

Open the catalog to page 9

LUXEON® Rebel Phosphor-Converted (PC) Amber - 10

LUXEON Rebel PC Amber Datasheet DS62 (09/10/07) 10 Pad Configuration Note for Figure 2: 1. The Thermal Pad is electrically isolated from the Anode and Cathode contact pads.Solder Pad Design Note for Figure 3: The photograph below shows the recommended LUXEON Rebel layout on Printed Circuit Board (PCB). This design easily achieves a thermal resistance of 7K/W. Application Brief AB32 provides extensive details for this layout. In addition, the .dwg files are available upon request. Figure 2. Pad Configuration. Figure 3. Solder Pad Layout.

Open the catalog to page 10

LUXEON® Rebel Phosphor-Converted (PC) Amber - 11

LUXEON Rebel PC Amber Datasheet DS62 (09/10/07) 11 Typical Wavelength Characteristics at Test Current Thermal Pad Temperature = 25°CTypical Light Output Characteristics over Temperature 0.0%10.0%20.0%30.0%40.0%50.0%60.0%70.0%80.0%90.0%100.0%110.0%460510560610660710760Relative Spectral Power DistributionWavelength (nm)Relative Intensity vs. Wavelength Figure 4. Relative Intensity vs. Wavelength. inous Flux20%Relative Luminous Flux0%20%40%60%80%100%120%-40-20020406080100Relative FluxThermal Pad Temperature °C Figure 5. Relative Light Output vs. Thermal Pad Temperature.
